2003 Chrysler PT Cruiser Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Power Distribution: Relay: Removal
- Disconnect and isolate the battery negative cable.
- Remove cover from Power Distribution Center (PDC).

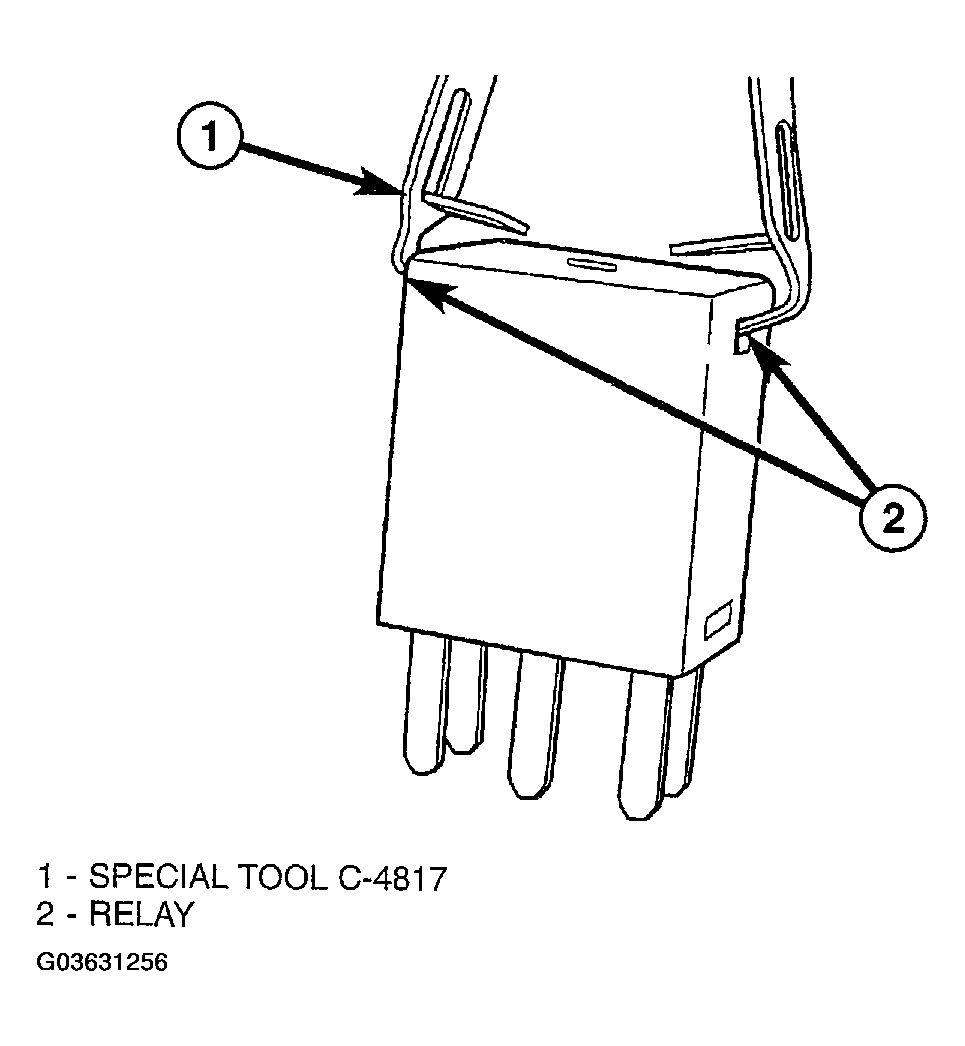

- Using special tool C-4817, grip the relay by the sides and pull upward with an even effort (Fig 1 ).
