2003 Chrysler PT Cruiser Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Transmission Control Module: Description

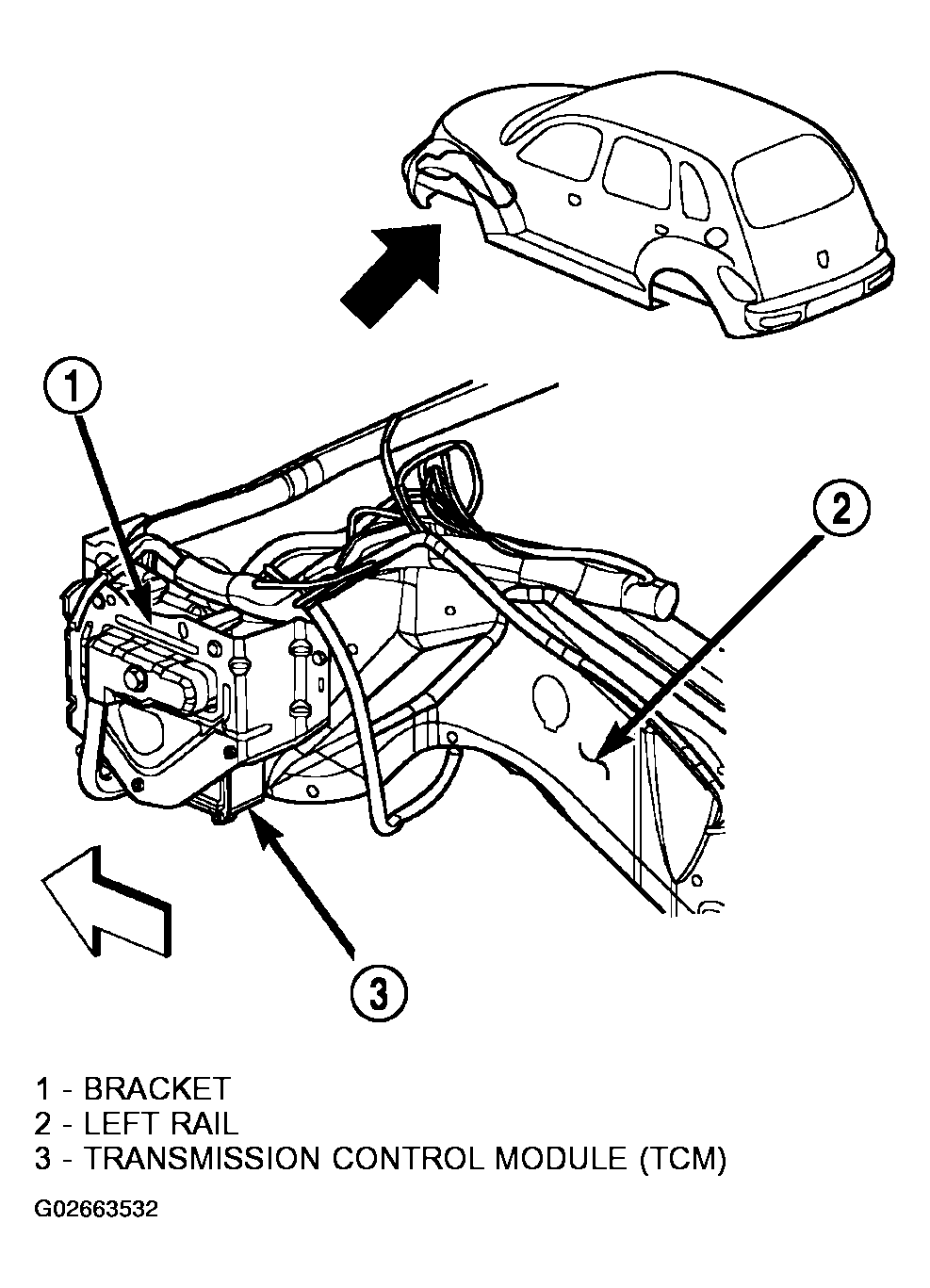

The Transmission Control Module (TCM) is located behind the left fender and is fastened to the left frame rail forward of the suspension (Fig. Fig 1 ). It mounts on a bracket that is fastened to the rail.
