Steering Column: Column: Description

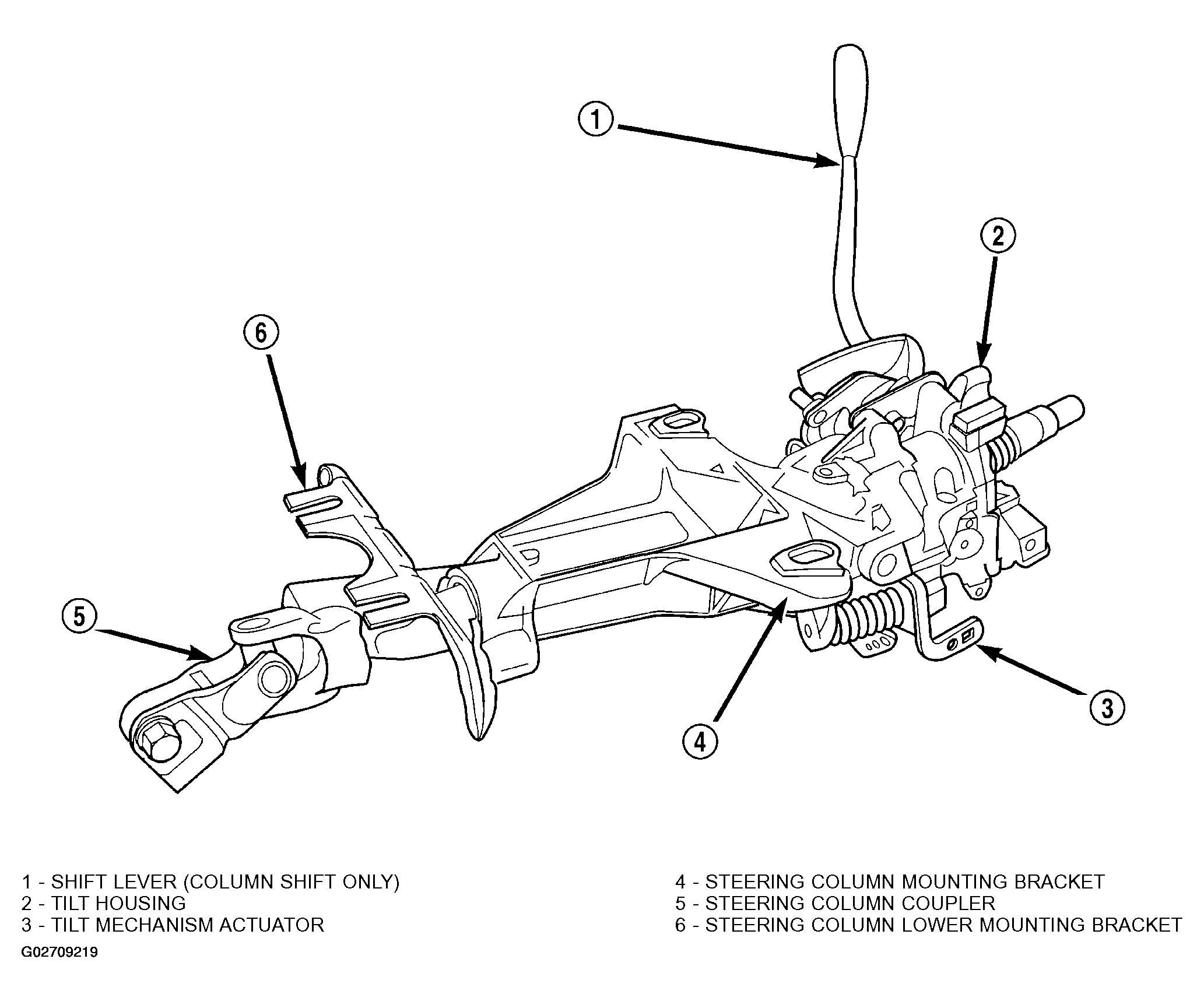

This vehicle uses a tilt-type steering column (Fig 1 ). Two styles are available, one is for floor shift vehicles and the other is for column shift vehicles.
The steering column used on this vehicle (Fig 1 ), has been designed to be serviced as an assembly; less wiring, switches, clockspring, gear shift lever, shift ignition interlock, brake interlock solenoid (column shift only), shrouds and steering wheel. These components can be serviced without removing the steering column from the vehicle.
