2002 Chrysler ProwlerFACTORY OEM SERVICE PROCEDURE

Fuel Pump Module: Installation

The fuel pump module has a locator notch that has to fit into the fuel tank to correctly align the two parts (Fig 1) and (Fig 2). Align the marks to correctly position the pump module.

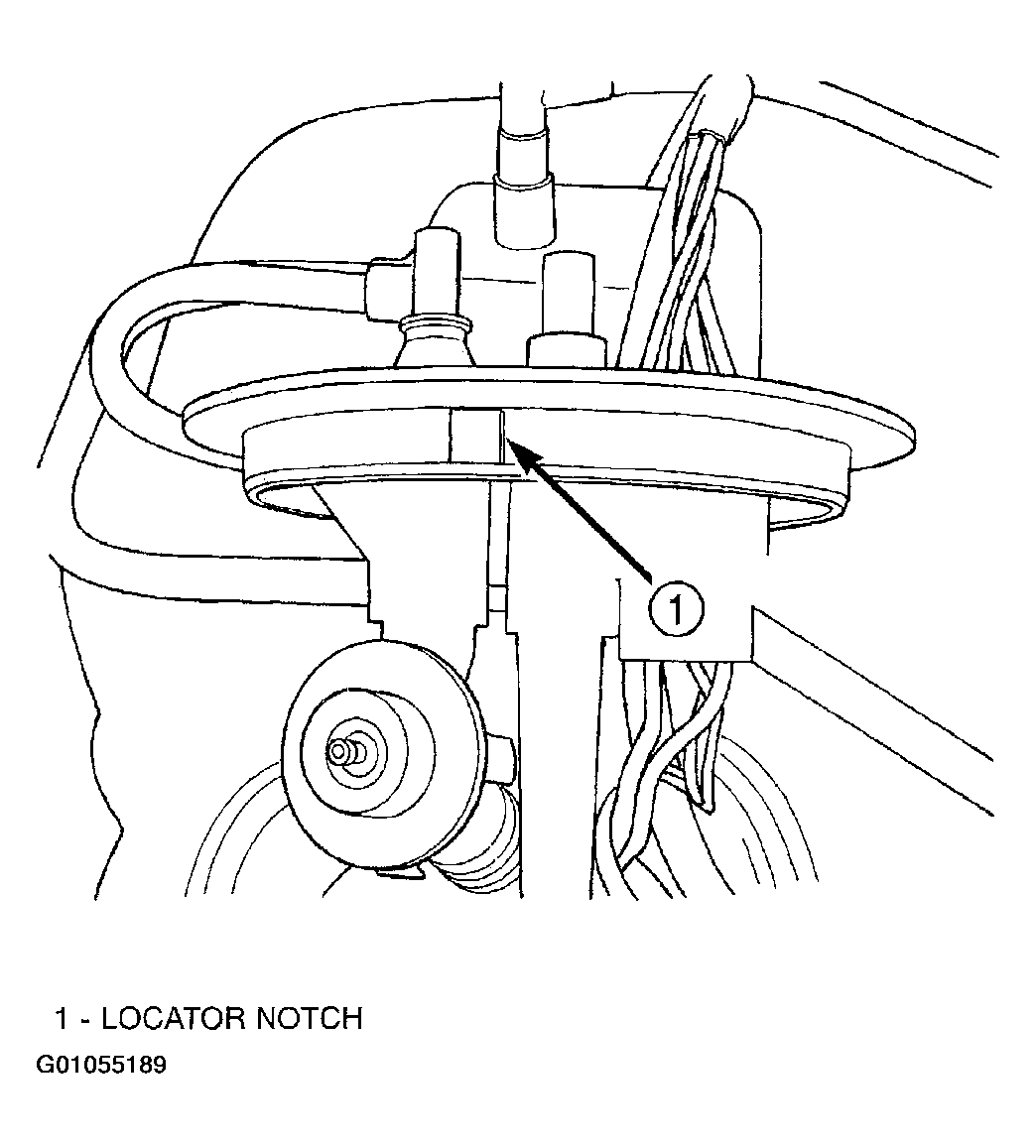

Fig 1: Identifying Fuel Pump Module Alignment Mark - Typical

Courtesy of DAIMLERCHRYSLER CORP.
