2002 Chrysler PT Cruiser Limited, AutomaticFACTORY OEM SERVICE PROCEDURE

Removal & Installation

  1. Disconnect negative battery cable. Using a trim stick, remove left and right "A" pillar trim panels and power window switch. Disconnect switch connector and remove switch. Remove screw from center bezel. Remove A/C control knobs. Remove center bezel. Remove top cover screws. Lift up on bottom outer areas of cluster bezel and along the rearward edge of top cover to disengage mounting clips. Pull top cover rearward until forward pins disengage from instrument panel. Remove top cover. See Fig 1.

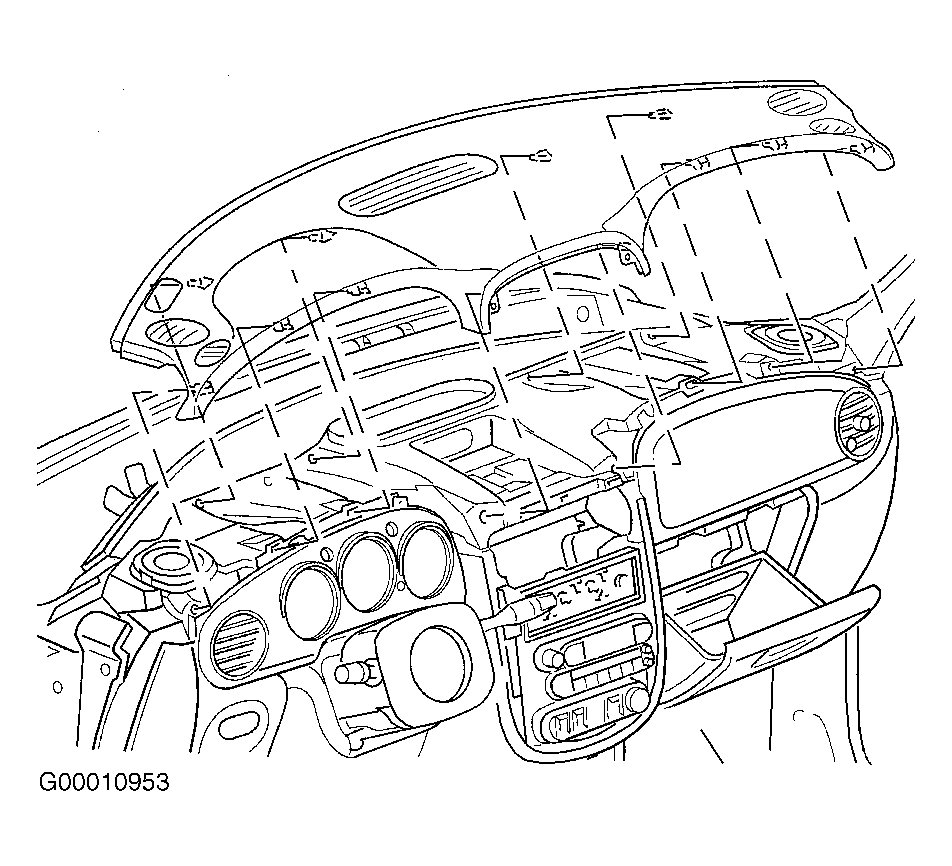

    Fig 1: Removing Instrument Panel Top Cover
    G00010953Courtesy of CHRYSLER CORP.
  2. Remove 2 RKE module screws. Slide RKE module connector locking tab sideways to unlock tab. Disconnect RKE module connector, located under pad in center of instrument panel. Remove RKE module. To install, reverse removal procedure.
