Power Window Switch

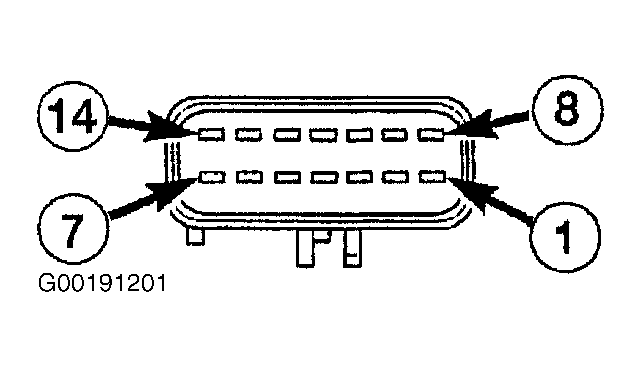

Remove the switch. See POWER WINDOW SWITCH under REMOVAL & INSTALLATION. Using an ohmmeter, test the window switch for continuity in all positions listed. See WINDOW SWITCH CONTINUITY table. For identification of window switch terminals, see Fig 1 - Fig 2 .
To test the left front down and express down switch position, connect pin No. 4 to ground and pin No. 12 to a 12-volt source. Using a voltmeter, measure for voltage from pin No. 13 to ground.
To test the right front down and express down switch position, connect pin No. 4 to ground and pin No. 12 to a 12-volt source. Using a voltmeter, measure for voltage from pin No. 3 to ground. If the correct results are not obtained, replace the switch.
| Switch & Switch Position | Continuity Between Terminals No. | |
|---|---|---|
| Master Switch | ||
| Lockout Switch (Top Of Switch Depressed) | 12 & 15 | |
| Left Front Up | 12 & 14 | |
| Right Front Up | 12 & 7 | |
| Left Rear Up | 12 & 8 | |
| Left Rear Down | 12 & 9 | |
| Right Rear Up | 12 & 1 | |
| Right Rear Down | 12 & 2 | |
| Rear Switches | ||
| Off | 2 & 5, 3 & 8 | |
| Up | 4 & 5 | |
| Down | 4 & 8 | |
