NOTE: For component locations, see Fig 1 - Fig 10 .

COMPONENT LOCATIONS

Component	Location
Controller Anti-Lock Brake	At Left Side Of Engine Compartment, On Bottom Of Hydraulic Control Unit. See Fig 2.
Data Link Connector (DLC)	Under Left Side Of Dash, Near Kick Panel. See Fig 3.
Electro-Mechanical Instrument Cluster (EMIC)	Integral Part Of Instrument Cluster. See Fig 3.
Fuse Block	At Lower Left Front Of Dash. See Fig 1.
Left Side Impact Air Bag Control Module	At Base Of Left "B" Pillar. See Fig 9.
Occupant Restraint Controller	On Tunnel Floor Pan, Between Shifter & Parking Brake. See Fig 4.
Powertrain Control Module	On Firewall, Behind Power Distribution Center. See Fig 5.
Power Distribution Center	On Left Side Of Engine Compartment. See Fig 6.
Remote Keyless Entry Module	Behind Upper Center Of Dash. See Fig 7.
Right Side Impact Air Bag Control Module	At Base Of Right "B" Pillar. See Fig 9.
Sentry Key Immobilizer Module	On Steering Column, Near Ignition Lock Cylinder. See Fig 8.
Transmission Control Module	At Left Front Of Engine Compartment. See Fig 10.

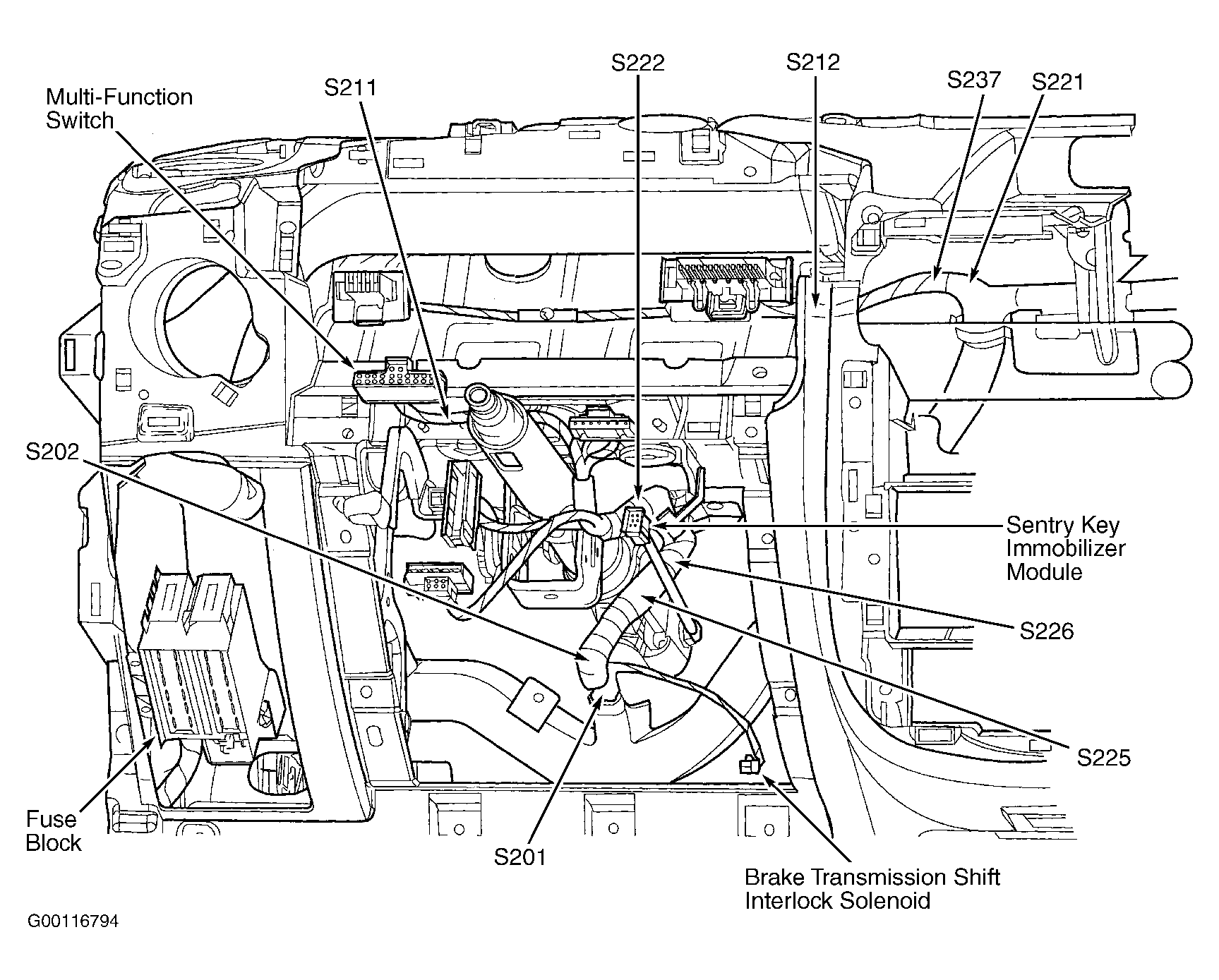

Fig 1: Locating Components At Left Side Of Dash

Courtesy of DAIMLERCHRYSLER CORP.
