2002 Chrysler Neon LE, StandardFACTORY OEM SERVICE PROCEDURE
Master Cylinder: Installation: Installation-RHD

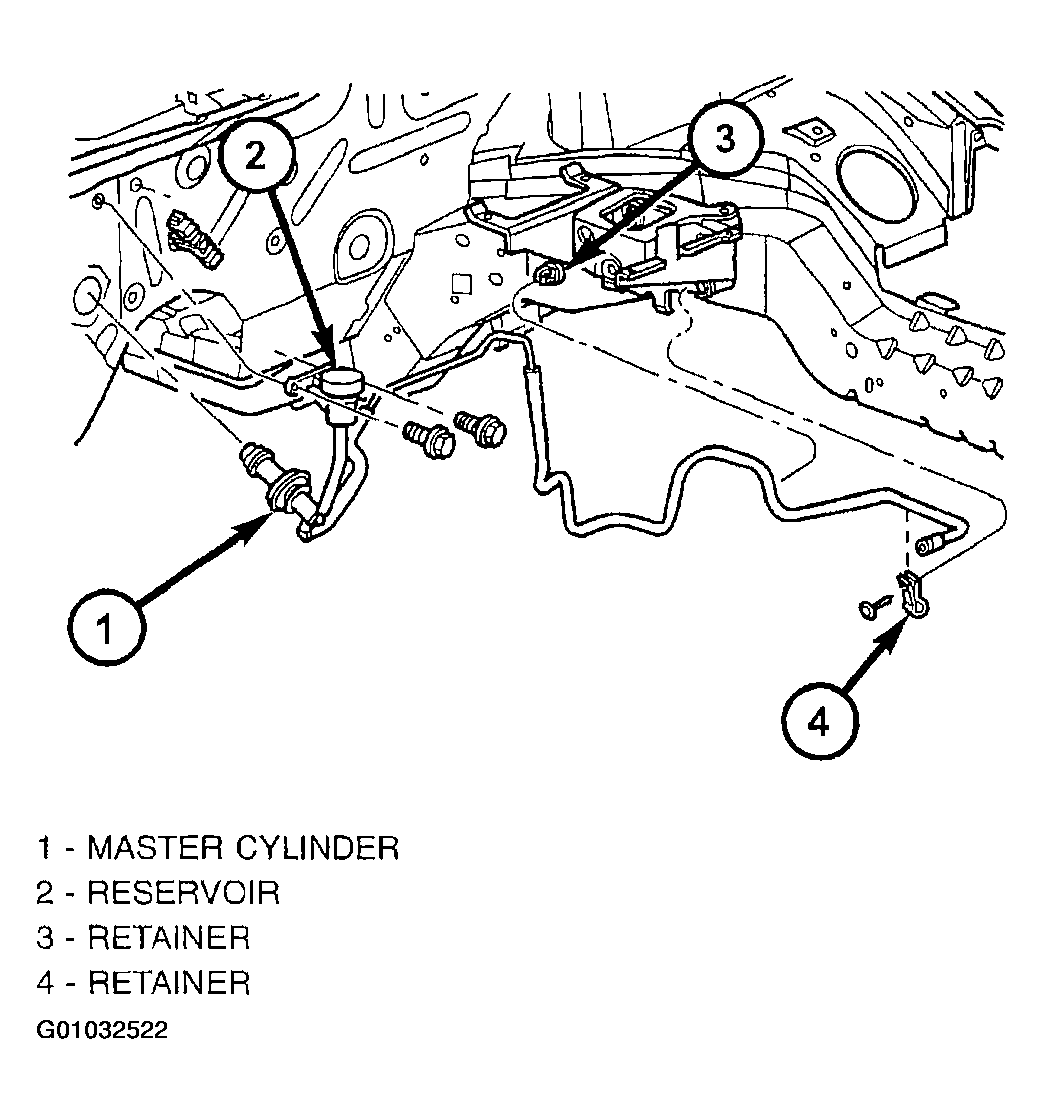

- Install the master cylinder into position on the dash panel. (Fig 1).
- Seat the master cylinder in the pedal bracket assembly.
- Rotate the master cylinder approximately 45° in the clockwise direction.
- Route the hydraulic tube as noted upon removal.
- Connect the master cylinder hydraulic line to the slave cylinder hydraulic line. An audible click should be heard. Verify the connection by pulling outward on the master cylinder line.
- Install the master cylinder remote reservoir onto the dash panel.
- Install the reservoir retaining screws. Tighten the screws to 3 N.m (24 in. lbs.).

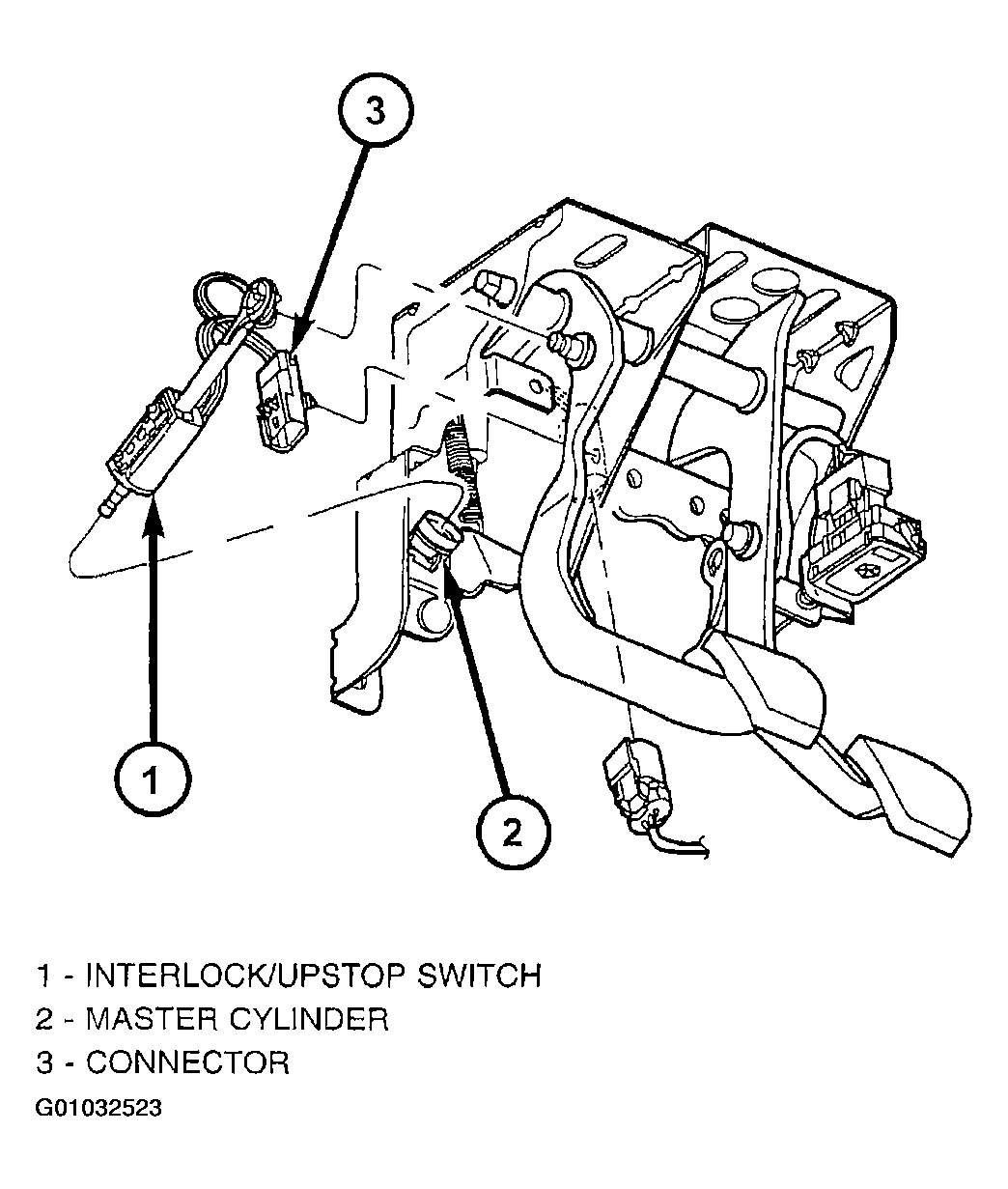

- Install the clutch interlock/upstop switch and cover plate. (Fig 2).
