2002 Chrysler Neon LE, AutomaticFACTORY OEM SERVICE PROCEDURE

Toe-In Adjustment (Rear)

NOTE: On vehicles with adjustable rear toe settings, rear adjustments should be set first, then adjust front settings.

With steering wheel centered and locked, loosen rear lateral link nuts at crossmember. Rotate adjustment cams to set to specification. See Fig 1. See WHEEL ALIGNMENT SPECIFICATIONS . Ensure notches on lateral link adjustment cams are facing upward. Tighten nuts to specification. See TORQUE SPECIFICATIONS .

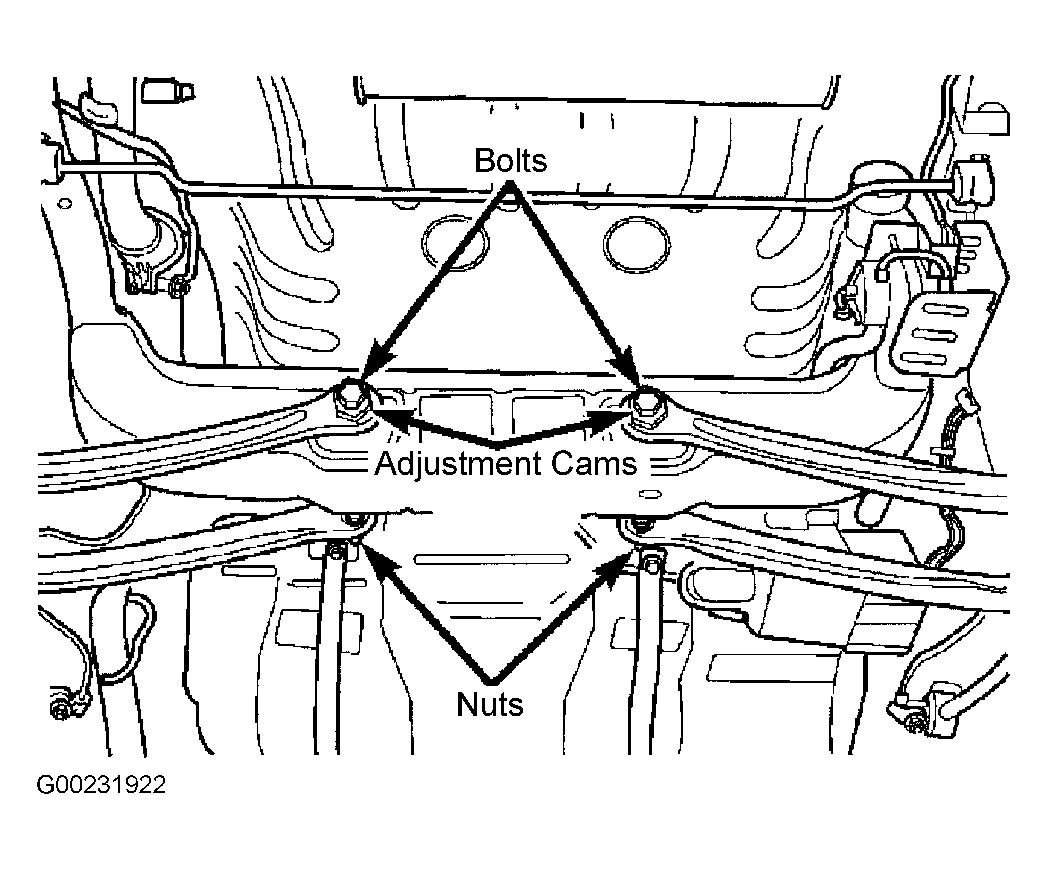

Fig 1: Adjusting Rear Toe-In

Courtesy of DAIMLERCHRYSLER CORPORATION
