ICU (Integrated Control Unit): Description

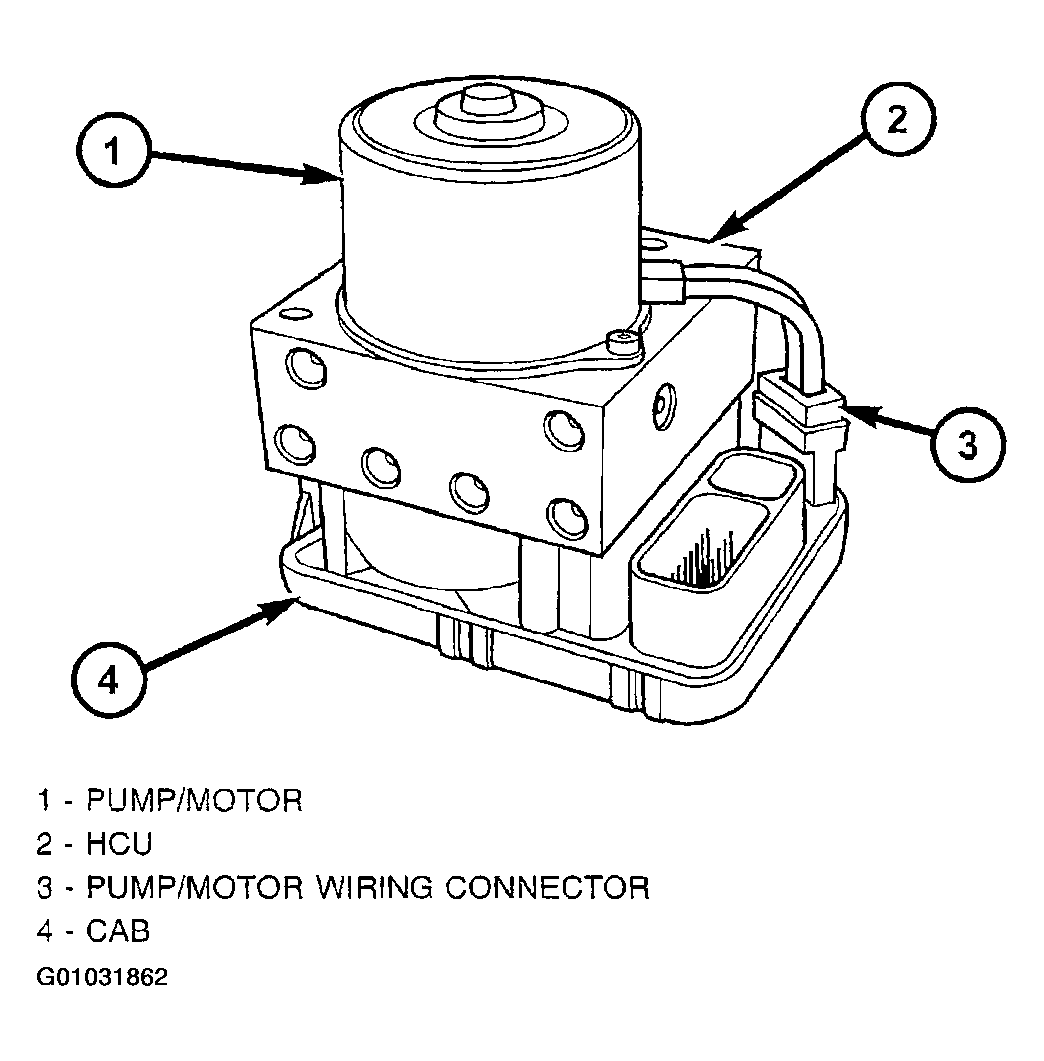

The hydraulic control unit (HCU) and the controller anti-lock brake (CAB) used with this anti-lock brake system are combined (integrated) into one unit, which is called the integrated control unit (ICU). (Fig 1 ). The ICU is located on the driver's side of the vehicle, below the master cylinder. (Fig 2 ).
