2002 Chrysler Neon (CANADA) L4-2.0LFACTORY OEM SERVICE PROCEDURE
Wiper Control Module: Service and Repair
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove wiper arms. Refer to Electrical, Wipers/Washers, Wiper Arm, Removal.
3. Remove the left side cowl cover. Refer to Body Exterior, Cowl Cover, Removal.
4. Disconnect the motor posi-lock harness connector.
5. Remove the wiper module mounting screws and remove the module from vehicle.
INSTALLATION
1. Install the windshield wiper module into the vehicle.
2. Install the mounting screws and tighten to 7 - 9 Nm (60 - 80 in. lbs.) torque.
3. Connect the motor posi-lock harness connector.
4. Install the left side cowl cover. Refer to Body, Exterior, Cowl Cover, Installation.
5. Install the wiper arms. Refer to Electrical, Wipers/Washers, Wiper Arm, Installation.
6. Connect the battery negative cable.

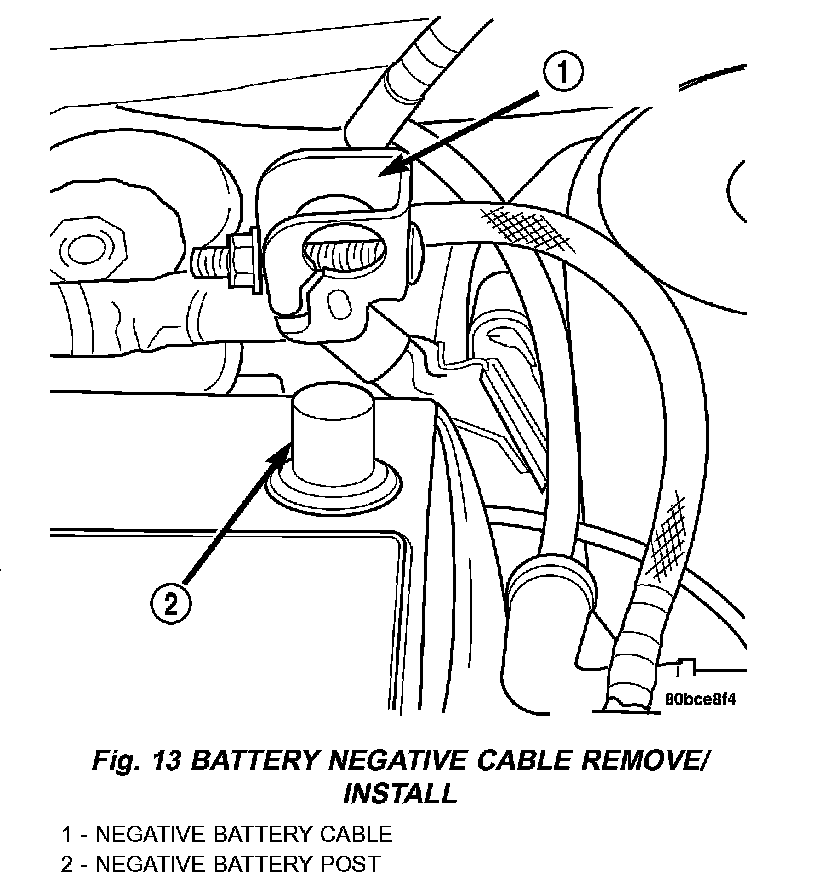

Fig.13 Battery Negative Cable Remove/Install:
1. Disconnect and isolate the battery negative cable.
2. Remove wiper arms. Refer to Electrical, Wipers/Washers, Wiper Arm, Removal.
3. Remove the left side cowl cover. Refer to Body Exterior, Cowl Cover, Removal.
4. Disconnect the motor posi-lock harness connector.

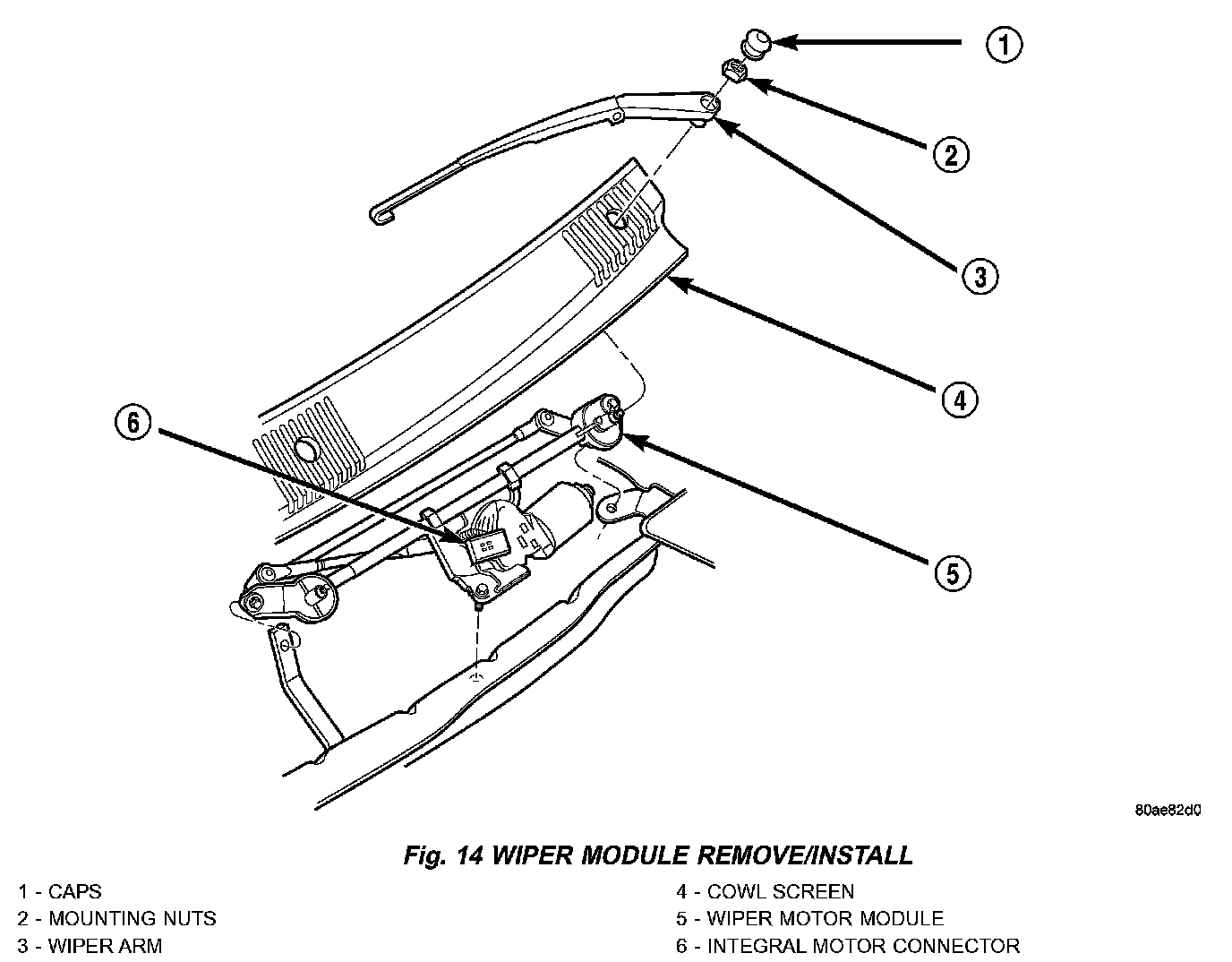

Fig.14 Wiper Module Remove/Install:
5. Remove the wiper module mounting screws and remove the module from vehicle.
INSTALLATION
1. Install the windshield wiper module into the vehicle.
2. Install the mounting screws and tighten to 7 - 9 Nm (60 - 80 in. lbs.) torque.
3. Connect the motor posi-lock harness connector.
4. Install the left side cowl cover. Refer to Body, Exterior, Cowl Cover, Installation.
5. Install the wiper arms. Refer to Electrical, Wipers/Washers, Wiper Arm, Installation.
6. Connect the battery negative cable.
