2002 Chrysler Neon (CANADA) L4-2.0LFACTORY OEM SERVICE PROCEDURE
Transmission Position Sensor/Switch: Service and Repair
TRANSMISSION RANGE SENSOR
REMOVAL
1. Remove valve body assembly from transaxle.

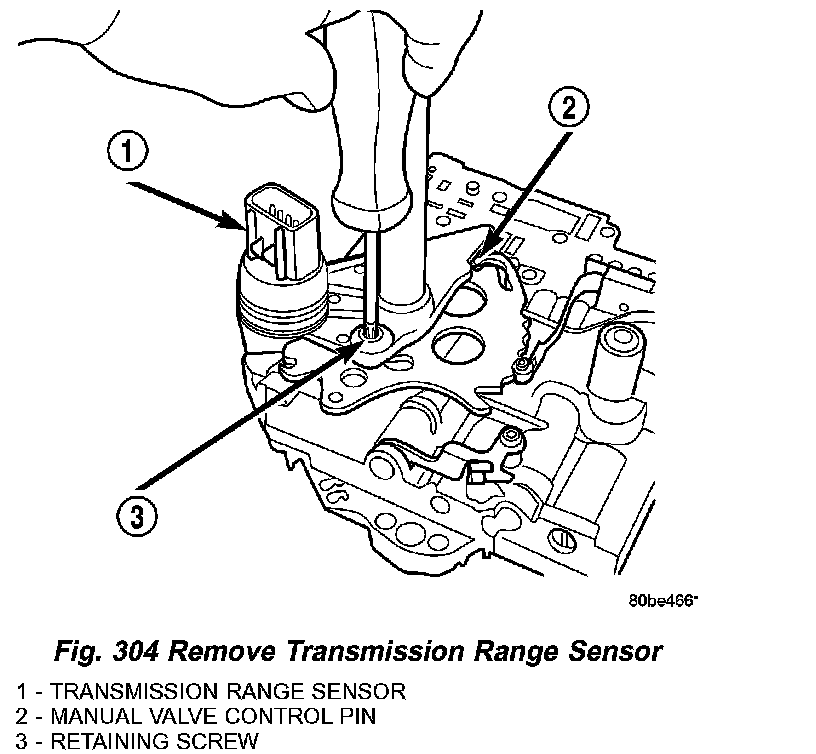

2. Remove transmission range sensor retaining screw and remove sensor from valve body (Fig. 304).
3. Remove TRS from manual shaft.
INSTALLATION
1. Install transmission range sensor (TRS) to the valve body and torque retaining screw (Fig. 304) to 5 Nm (45 inch lbs.).
2. Install valve body to transaxle.
REMOVAL
1. Remove valve body assembly from transaxle.
2. Remove transmission range sensor retaining screw and remove sensor from valve body (Fig. 304).
3. Remove TRS from manual shaft.
INSTALLATION
1. Install transmission range sensor (TRS) to the valve body and torque retaining screw (Fig. 304) to 5 Nm (45 inch lbs.).
2. Install valve body to transaxle.
