2002 Chrysler Neon (CANADA) L4-2.0LFACTORY OEM SERVICE PROCEDURE
Engine Oil: Service and Repair
STANDARD PROCEDURE - ENGINE OIL AND FILTER CHANGE
Change engine oil at mileage and time intervals described.
WARNING: NEW OR USED ENGINE OIL CAN BE IRRITATING TO THE SKIN. AVOID PROLONGED OR REPEATED SKIN CONTACT WITH ENGINE OIL. CONTAMINANTS IN USED ENGINE OIL, CAUSED BY INTERNAL COMBUSTION, CAN BE HAZARDOUS TO YOUR HEALTH. THOROUGHLY WASH EXPOSED SKIN WITH SOAP AND WATER. DO NOT WASH SKIN WITH GASOLINE, DIESEL FUEL, THINNER, OR SOLVENTS, HEALTH PROBLEMS CAN RESULT. DO NOT POLLUTE, DISPOSE OF USED ENGINE OIL PROPERLY. CONTACT YOUR DEALER OR GOVERNMENT AGENCY FOR LOCATION OF COLLECTION CENTER IN YOUR AREA.
Run engine until achieving normal operating temperature.
1. Position the vehicle on a level surface and turn engine off.

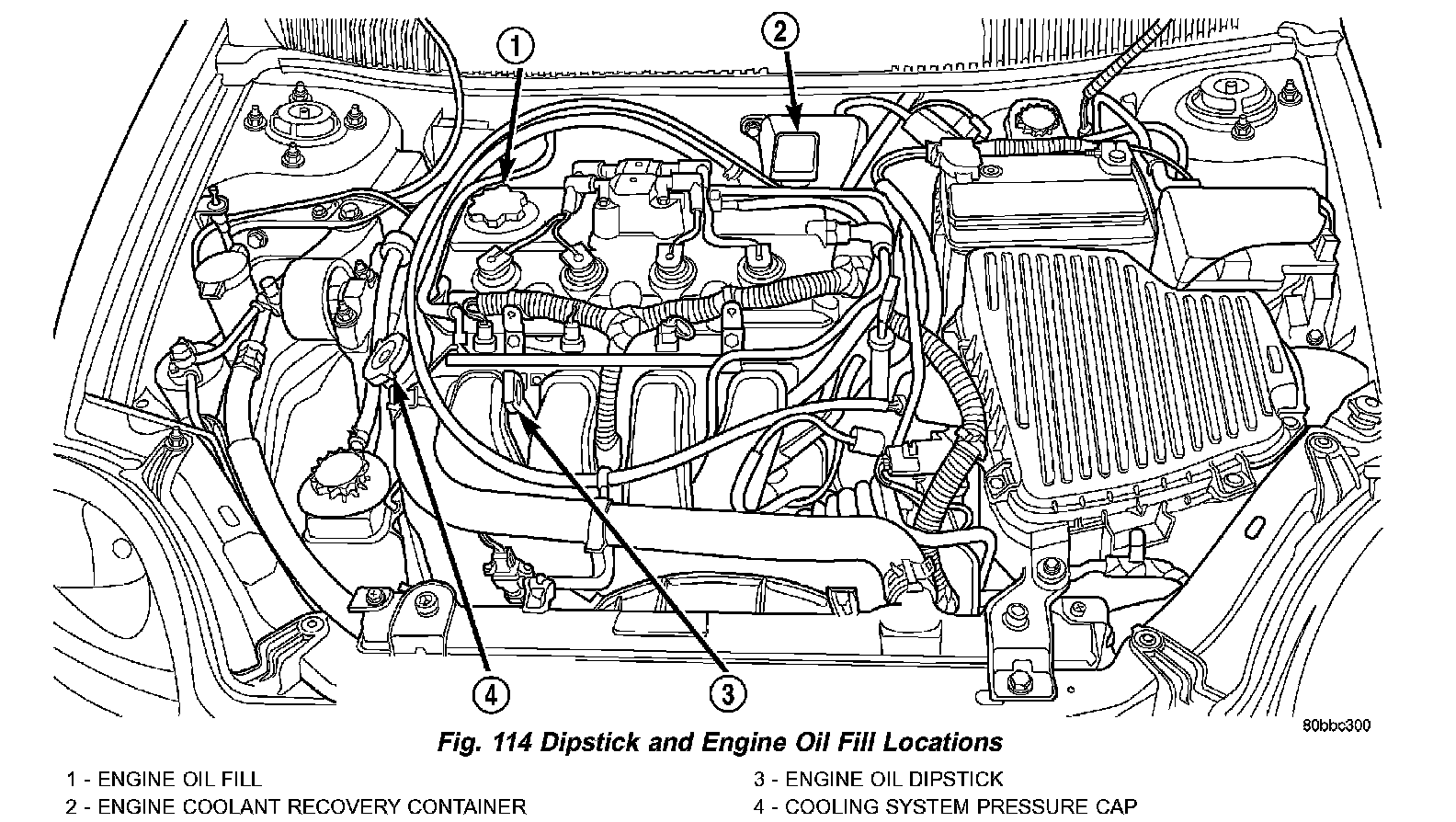

2. Remove oil fill cap (Fig. 114).
3. Raise vehicle on hoist.

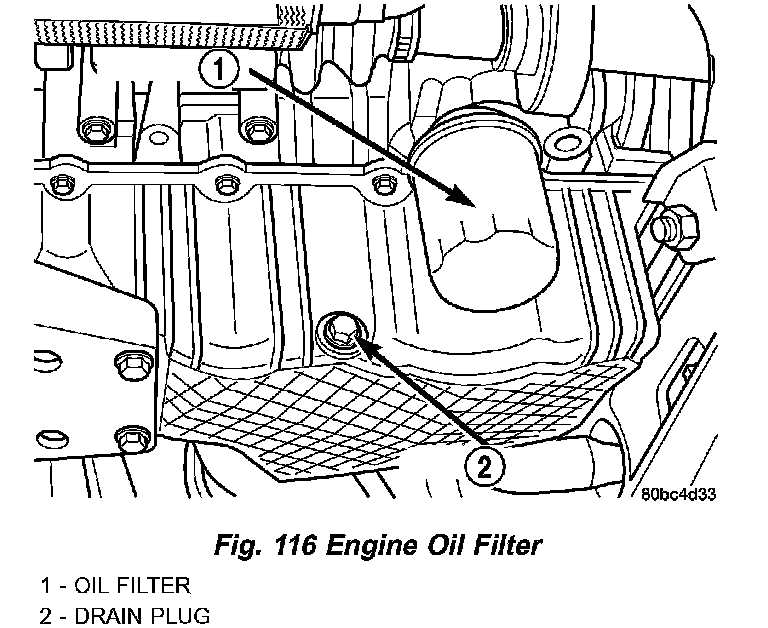

4. Place a suitable oil collecting container under oil pan drain plug (Fig. 116).
5. Remove oil pan drain plug and allow oil to drain into collecting container. Inspect drain plug threads for stretching or other damage. Replace drain plug and gasket if damaged.
6. Remove oil filter.
7. Install and tighten oil pan drain plug to 27 Nm (20 ft. lbs.).
8. Install new oil filter.
9. Lower vehicle and fill crankcase with specified type and amount of engine oil.
10. Install oil fill cap.
11. Start engine and inspect for leaks.
12. Stop engine and inspect oil level.
NOTE: Care should be exercised when disposing used engine oil after it has been drained from a vehicle engine.
Change engine oil at mileage and time intervals described.
WARNING: NEW OR USED ENGINE OIL CAN BE IRRITATING TO THE SKIN. AVOID PROLONGED OR REPEATED SKIN CONTACT WITH ENGINE OIL. CONTAMINANTS IN USED ENGINE OIL, CAUSED BY INTERNAL COMBUSTION, CAN BE HAZARDOUS TO YOUR HEALTH. THOROUGHLY WASH EXPOSED SKIN WITH SOAP AND WATER. DO NOT WASH SKIN WITH GASOLINE, DIESEL FUEL, THINNER, OR SOLVENTS, HEALTH PROBLEMS CAN RESULT. DO NOT POLLUTE, DISPOSE OF USED ENGINE OIL PROPERLY. CONTACT YOUR DEALER OR GOVERNMENT AGENCY FOR LOCATION OF COLLECTION CENTER IN YOUR AREA.
Run engine until achieving normal operating temperature.
1. Position the vehicle on a level surface and turn engine off.
2. Remove oil fill cap (Fig. 114).
3. Raise vehicle on hoist.
4. Place a suitable oil collecting container under oil pan drain plug (Fig. 116).
5. Remove oil pan drain plug and allow oil to drain into collecting container. Inspect drain plug threads for stretching or other damage. Replace drain plug and gasket if damaged.
6. Remove oil filter.
7. Install and tighten oil pan drain plug to 27 Nm (20 ft. lbs.).
8. Install new oil filter.
9. Lower vehicle and fill crankcase with specified type and amount of engine oil.
10. Install oil fill cap.
11. Start engine and inspect for leaks.
12. Stop engine and inspect oil level.
NOTE: Care should be exercised when disposing used engine oil after it has been drained from a vehicle engine.
