2002 Chrysler Intrepid BaseFACTORY OEM SERVICE PROCEDURE

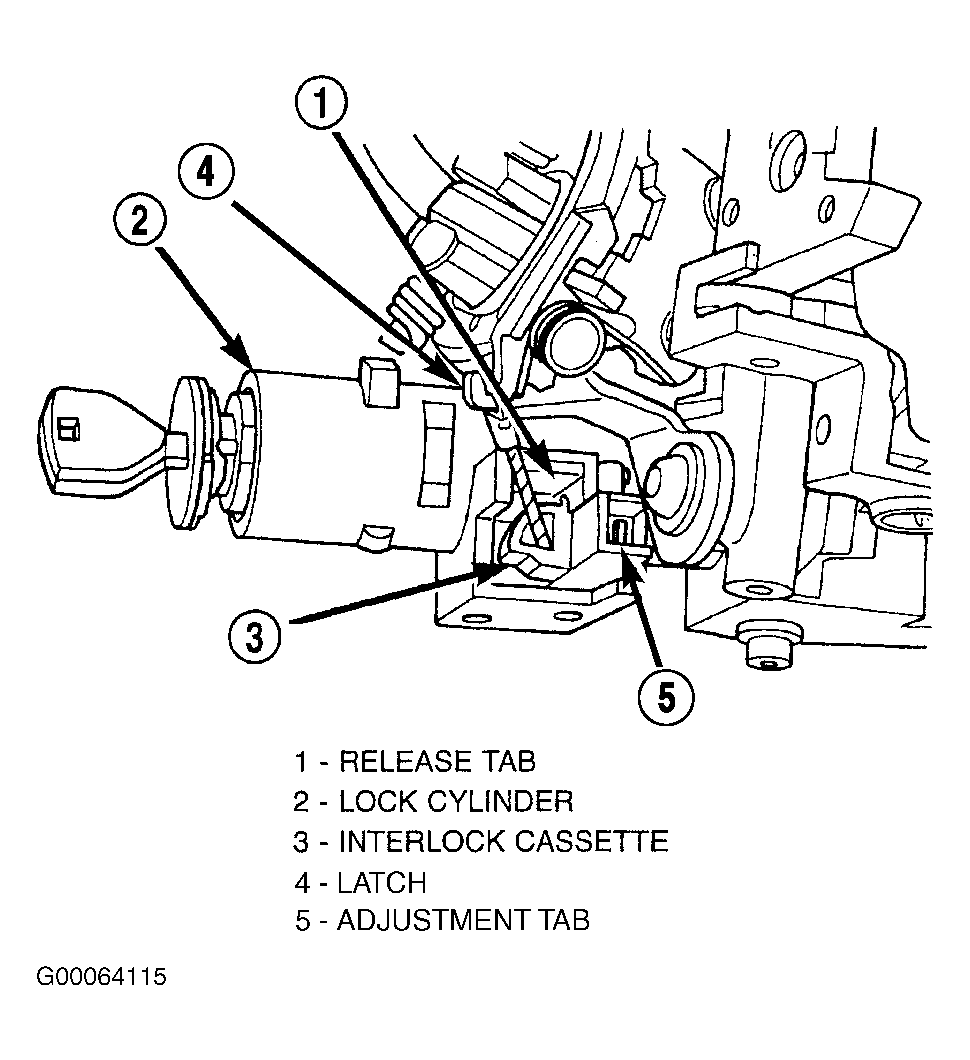

Ignition Interlock Cassette: Installation
NOTE:
Adjustment of interlock cassette is done during installation procedure.
- Ensure latch rotates freely on gearshift lever gate. Ensure gearshift lever is in Park. Remove ignition key. Install cable over hook on locking arm. Slide cassette into housing until it is locked in place. Push adjustment tab in until it stops. Adjustment tab will click as it moves into position. Ensure tab is fully depressed.
- Operate interlock system to confirm correct operation. See SYSTEM OPERATION CHECK under TROUBLE SHOOTING. Ensure ignition switch is prevented from being returned to LOCK or ACC positions unless gearshift lever is returned to Park. Key should only be able to be removed from lock cylinder with ignition switch in LOCK position.
