2002 Chrysler Intrepid BaseFACTORY OEM SERVICE PROCEDURE
Overhaul - Automatic Transmission: Assembly
NOTE:
If the transaxle assembly is being reconditioned (clutch/seal replacement) or replaced, it is necessary to perform the Quick Learn Procedure using the DRBIII® Scan Tool (Refer to SHIFT QUALITY QUICK-LEARN PROCEDURE
(2002) or TRANSAXLE SHIFT QUALITY QUICK LEARN PROCEDURE
(2003)).

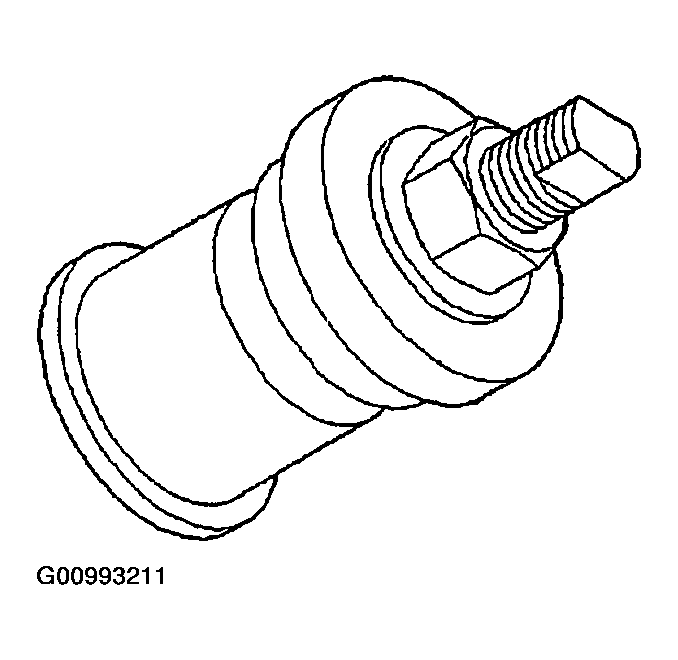

- Install the output bearing cups, use Special Tool # 5050A. See Fig 1.

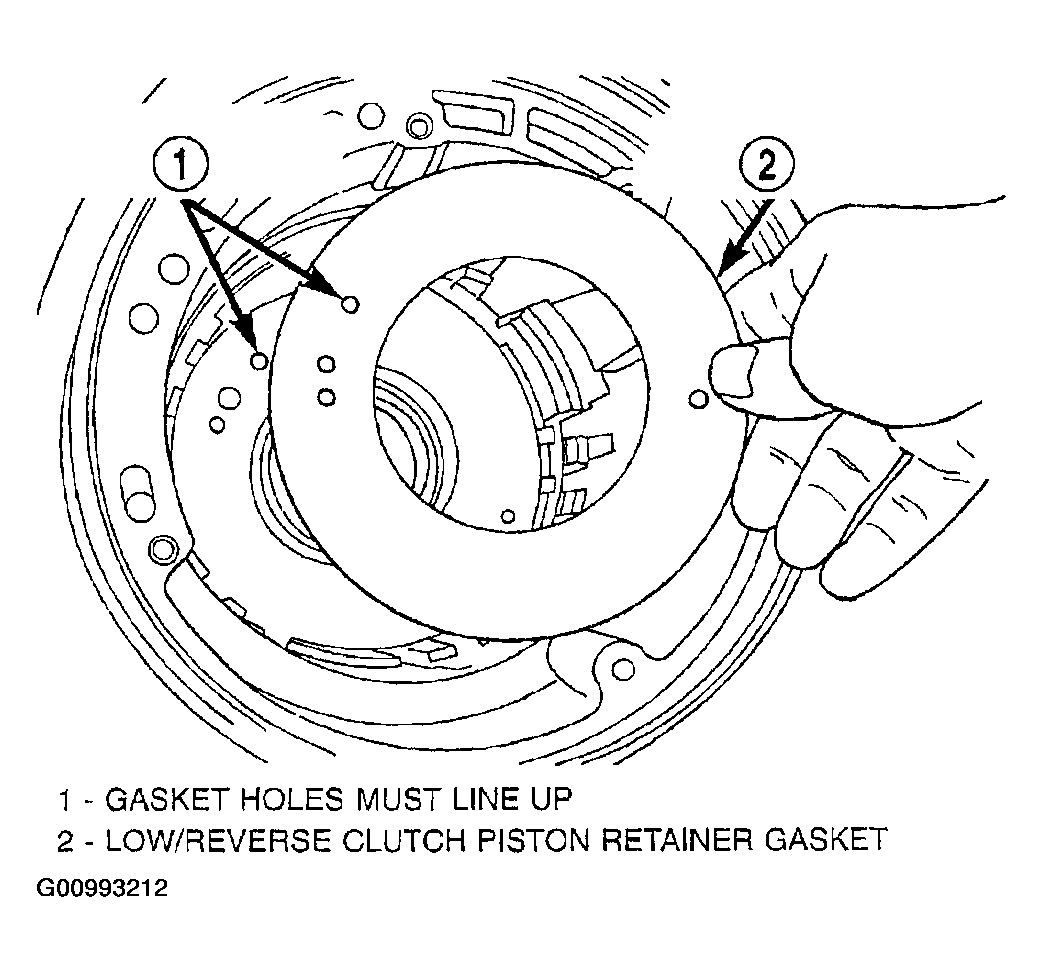

- Install low/reverse piston retainer gasket. See Fig 2.

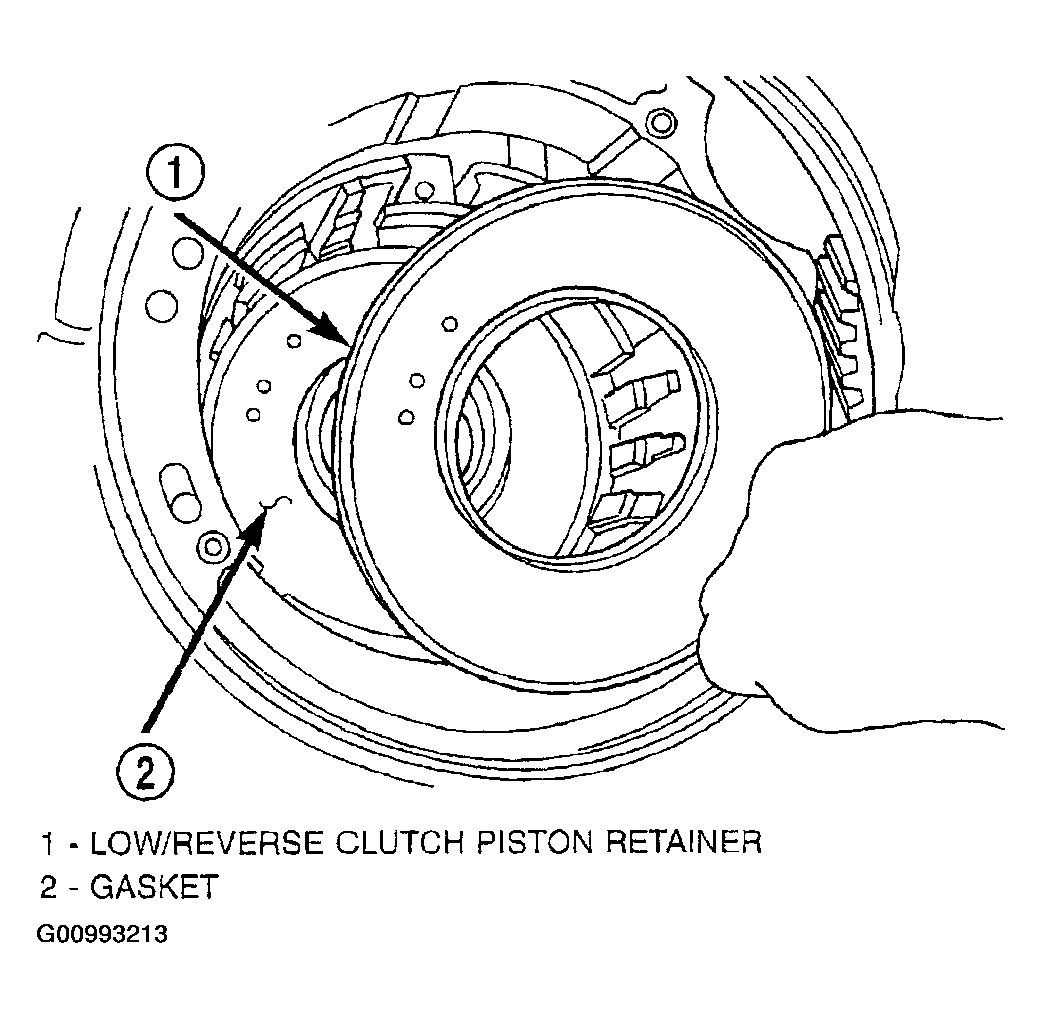

- Install low/reverse piston retainer. See Fig 3.

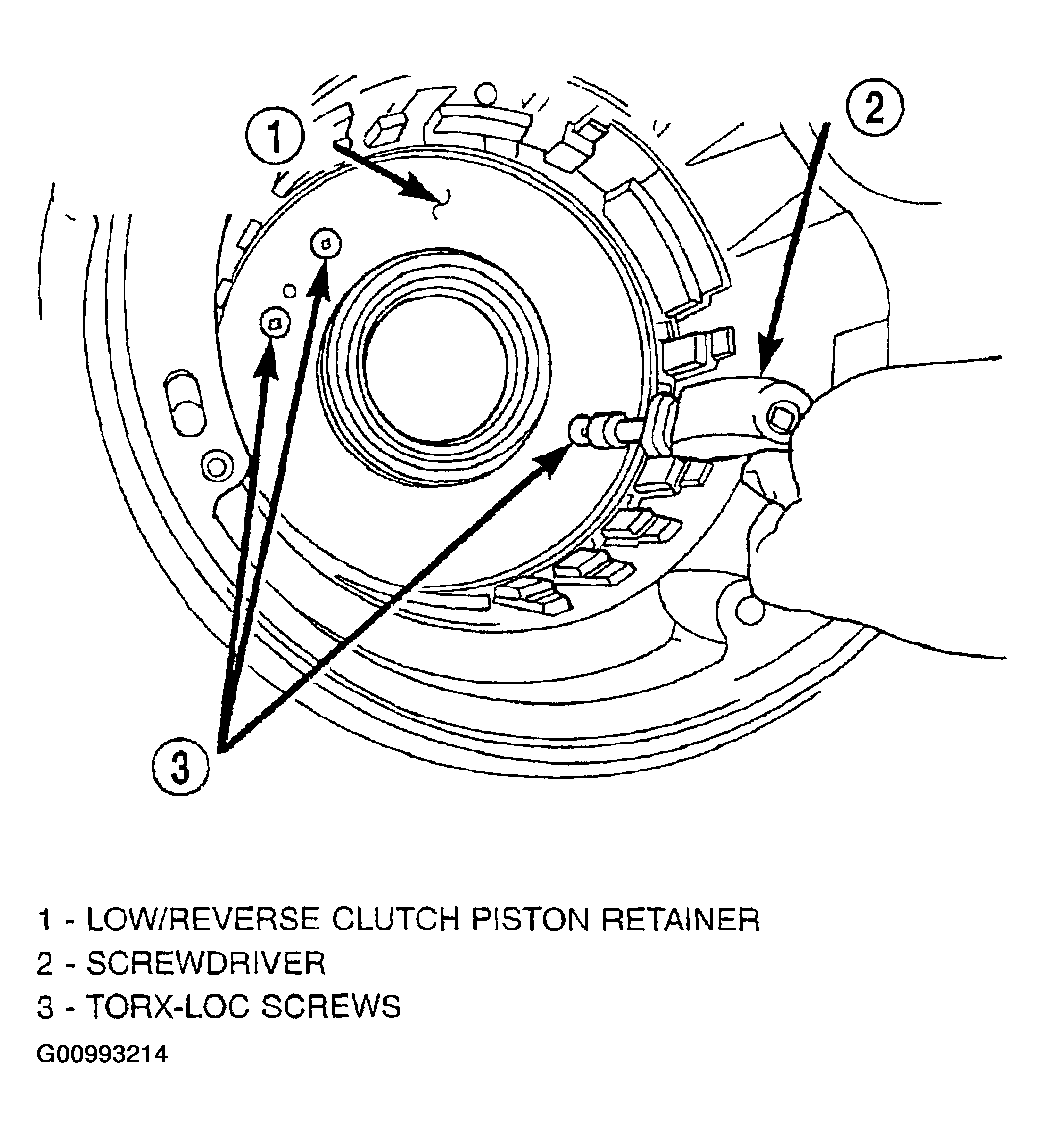

- Install low/reverse piston retainer-to-case screws and torque to 5 N.m (45 in. lbs.). See Fig 4.

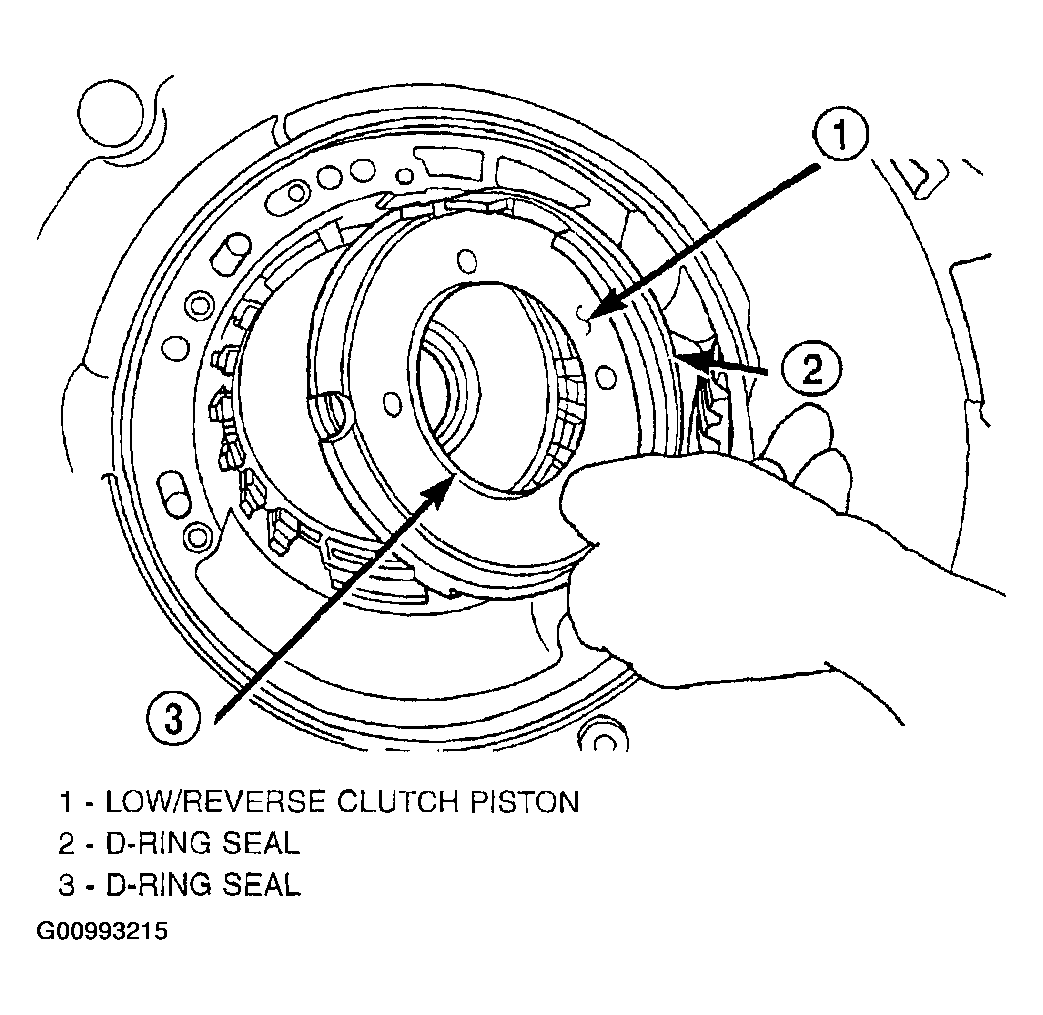

- Install low/reverse clutch piston. See Fig 5.

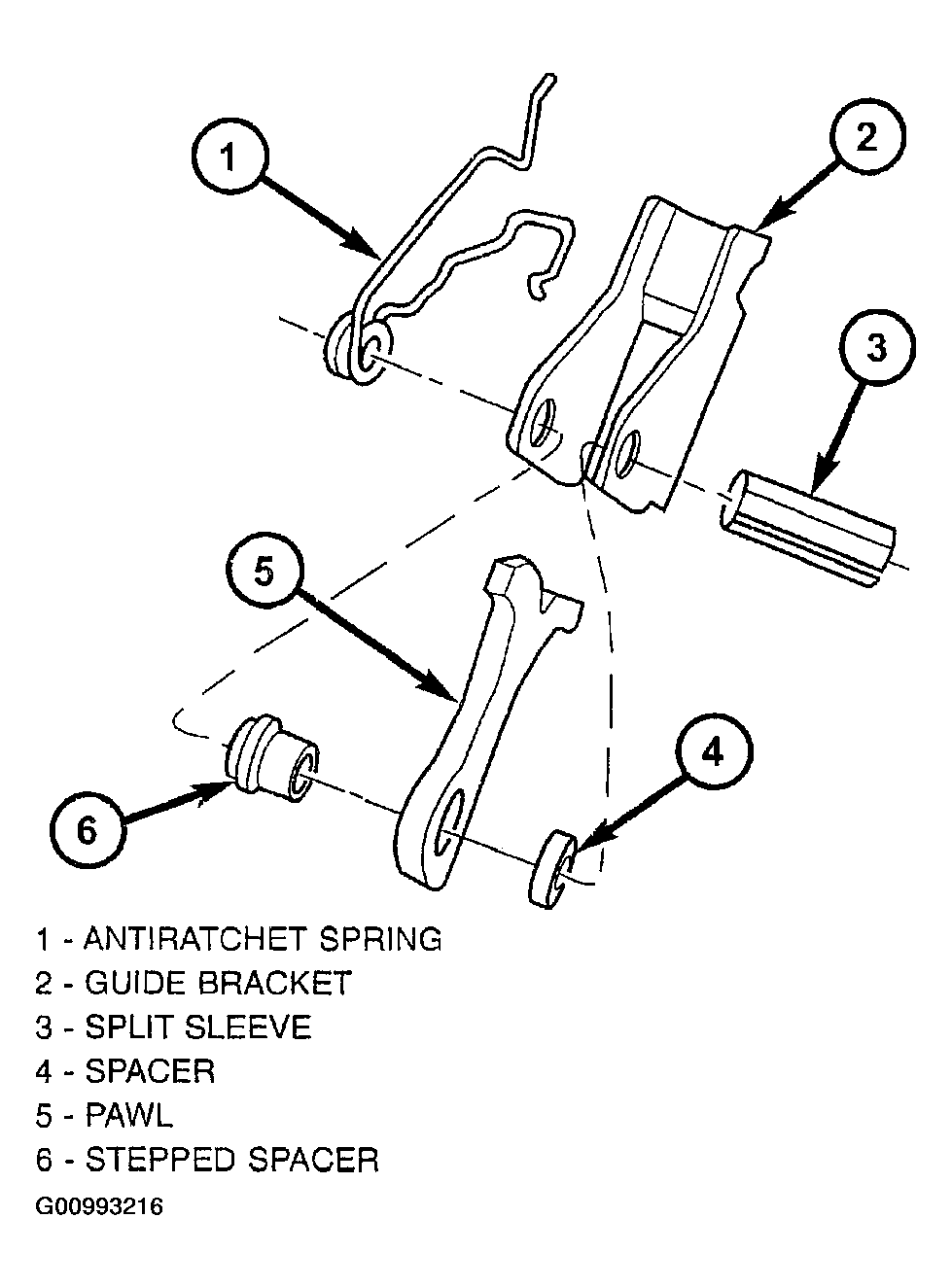

- Assemble guide bracket assembly as shown in Fig 6 and Fig 7 .
