2002 Chrysler Intrepid BaseFACTORY OEM SERVICE PROCEDURE

Connector Identification

CONNECTOR IDENTIFICATION DIRECTORY

Connector	Illustration
Autostick Switch	Fig 1
Data Link Connector	Fig 2
Powertrain Control Module	Fig 3
Solenoid Pack	Fig 4
Transaxle In-Line 10-Pin Harness Connector	Fig 6
Transaxle In-Line 14-Pin Harness Connector	Fig 7
Transmission Range Sensor	Fig 5

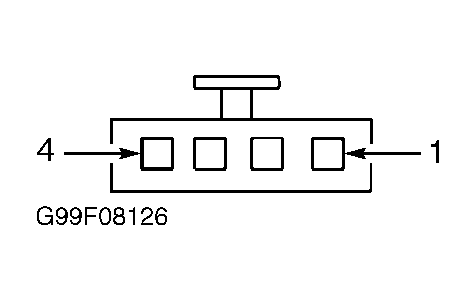

Fig 1: Identifying Autostick Switch Connector Terminals

Courtesy of DAIMLERCHRYSLER CORP.
