2002 Chrysler Intrepid BaseFACTORY OEM SERVICE PROCEDURE
Torque Specifications
WARNING: This page is about a different variant/trim than selected.
TORQUE SPECIFICATIONS
| Application | Ft. Lbs. (N.m) | |||||
|---|---|---|---|---|---|---|
| A/C Bracket-To-Block Bolts | 40 (54) | |||||
| A/C Compressor-To-Bracket Bolts | 21 (28) | |||||
| Camshaft Sprocket Bolts | ||||||
| Right Side - Step 1 | 75 (102) | |||||
| Right Side - Step 2 | Plus 1/4 Turn | |||||
| Left Side - Step 1 | 85 (115) | |||||
| Left Side - Step 2 | Plus 1/4 Turn | |||||
| Camshaft Thrust Plate Bolts | 21 (28) | |||||
| Catalytic Converter Pipe-To-Support Bracket Nut | 35 (47) | |||||
| Connecting Rod Cap Nuts | ||||||
| Step 1 | 40 (54) | |||||
| Step 2 | Plus 1/4 Turn | |||||
| Crankshaft Main Bearing Cap Bolts | ||||||
| Inner Cap Bolts - Step 1 | 15 (20) | |||||
| Inner Cap Bolts - Step 2 | Plus 1/4 Turn | |||||
| Outer Cap Bolts (Windage Tray) - Step 1 | 20 (27) | |||||
| Outer Cap Bolts (Windage Tray) - Step 2 | Plus 1/4 Turn | |||||
| Tie Bolts | 21 (28) | |||||
| Crankshaft Pulley Bolt | 85 (115) | |||||

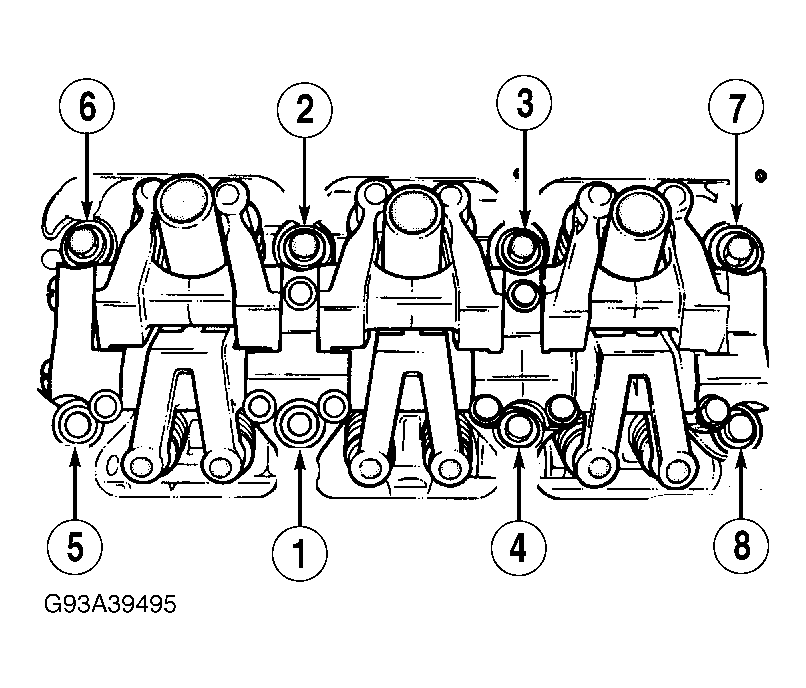

| Cylinder Head Bolts (1) | ||||||
| Step 1 | 45 (61) | |||||
| Step 2 | 65 (88) | |||||
| Step 3 | 65 (88) | |||||
| Step 4 | Plus 1/4 Turn | |||||
| Engine Mount Bracket-To-Block Bolts | N/A | |||||
| Engine Mount Insulator Nuts | 45 (61) | |||||
| Exhaust Manifold-To-Cylinder Head Bolts | 17 (23) | |||||
| Exhaust Support Bracket-To-Transmission | 35 (47) | |||||
| Exhaust Support-To-Body Bracket Bolts | 18 (25) | |||||
| Exhaust System Band Clamp Bolt | 45 (61) | |||||
| Generator Bracket Bolts | 40 (54) | |||||
| Intake Manifold Bolts (2) | ||||||
| M6 | 9 (12) | |||||
| M8 | 21 (28) | |||||
| Oil Filter | 12 (16) | |||||
| Oil Pan Bolts | ||||||
| M6 | 9 (12) | |||||
| M8 | 21 (28) | |||||
| Oil Pan Drain Plug | 20 (27) | |||||
| Oil Pump Pick-Up Tube Bolt | 21 (28) | |||||
| Oil Pump-To-Block Bolts | 21 (28) | |||||
| Rocker Shaft Pedestal Retaining Bolts | 23 (31) | |||||
| Spark Plugs | 20 (28) | |||||
| Starter Bolt | N/A | |||||
| Timing Belt Cover Bolts | ||||||
| M6 | 9 (12) | |||||
| M8 | 21 (28) | |||||
| M10 | 40 (54) | |||||
| Timing Belt Tensioner Bolts | 21 (28) | |||||
| INCH Lbs. (N.m) | ||||||
| Exhaust Manifold Heat Shield Bolts | 106 (12) | |||||
| Exhaust Manifold-To-Converter "V" Band Clamp | 100 (11) | |||||
| Oil Pump Cover Bolts | 106 (12) | |||||
| Rear Crankshaft Seal Retainer Bolts | 106 (12) | |||||
| Thermostat Housing/Water Inlet Connector Bolts | 106 (12) | |||||
| Throttle Body Bolts | 106 (12) | |||||
| Valve Cover Bolts | 106 (12) | |||||
| Water Pump Bolts | 106 (12) | |||||
| Water Outlet Housing Bolt | 106 (12) | |||||
|
||||||
