2002 Chrysler Intrepid BaseFACTORY OEM SERVICE PROCEDURE
Left Mount: Removal
WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, and 2003 Chrysler Concorde. However, it is still accessible from the selected car via links, so may be relevant.
- Raise vehicle on hoist.

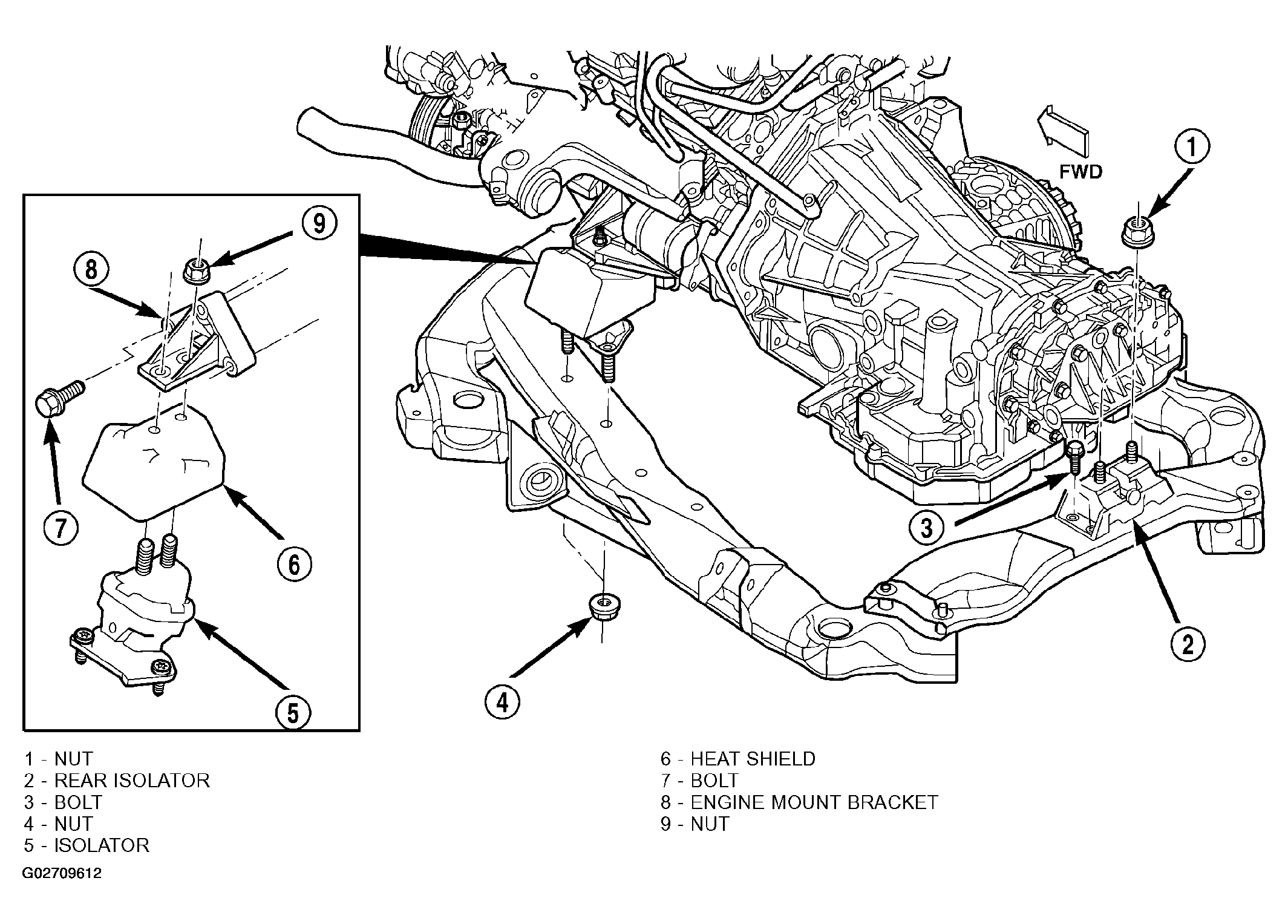

- Remove the isolator attaching nuts from top of the mounting bracket (Fig 1).
- Support the engine with a jack and a block of wood across the full width of the oil pan.
- Remove the lower attaching nuts from the bottom of the isolator to the frame (Fig 1).
- Raise engine carefully with jack enough to remove the isolator with heat shield from its mount.
