2002 Chrysler Intrepid BaseFACTORY OEM SERVICE PROCEDURE

Disassembly - ICU

NOTE: To replace the hydraulic control unit (HCU) or the controller antilock brake (CAB) on this vehicle, the entire integrated control unit (ICU) needs to be removed from the vehicle. The CAB can then be separated from the HCU. Do not attempt to replace the CAB with the ICU mounted in the vehicle.

Remove the ICU from the vehicle. Refer to REMOVAL - ICU .
Disconnect the pump/motor wiring harness from the CAB (Fig 1 ).

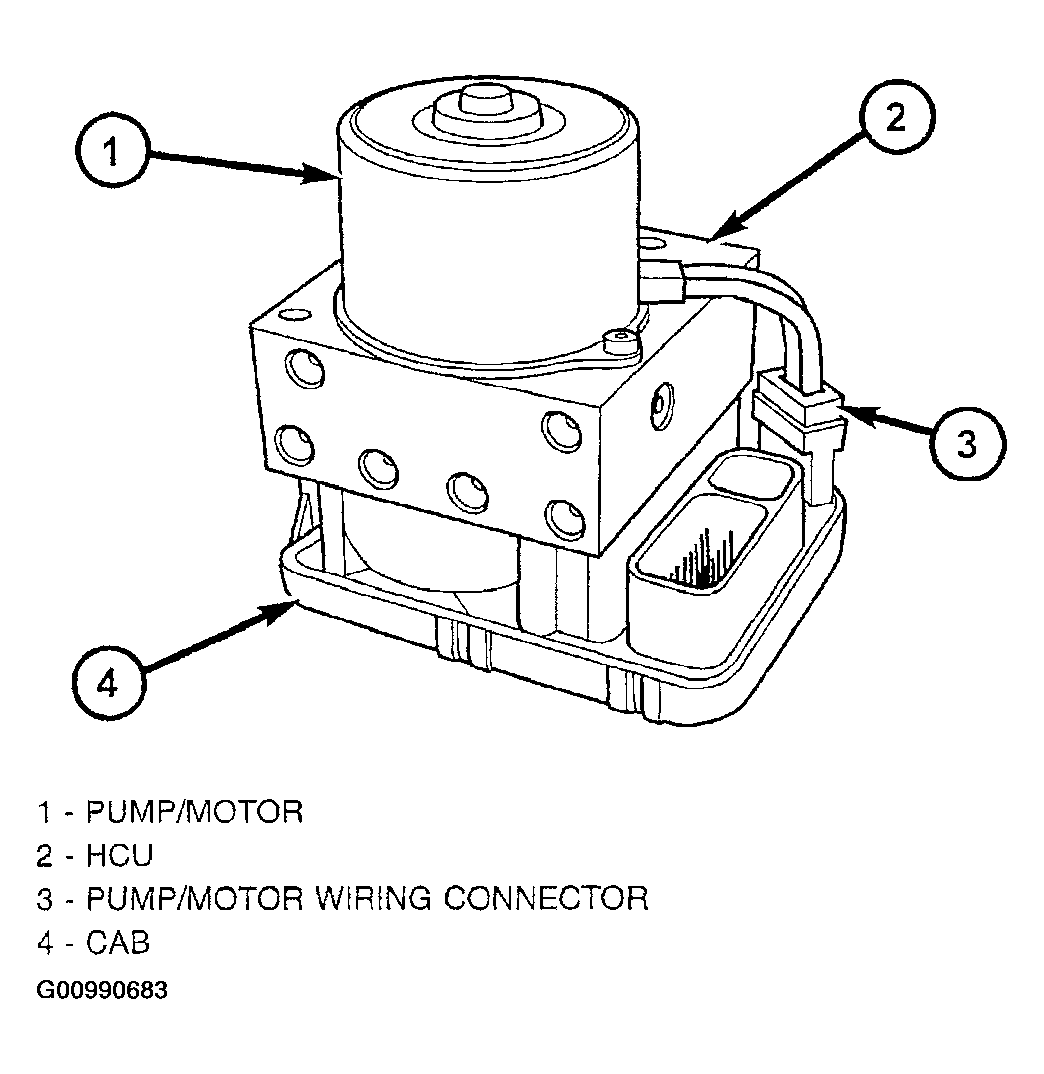

Fig 1: Identifying Integrated Control Unit Components
Courtesy of DAIMLERCHRYSLER CORP.
Remove the 4 bolts (Fig 2 ) attaching the CAB to the HCU.

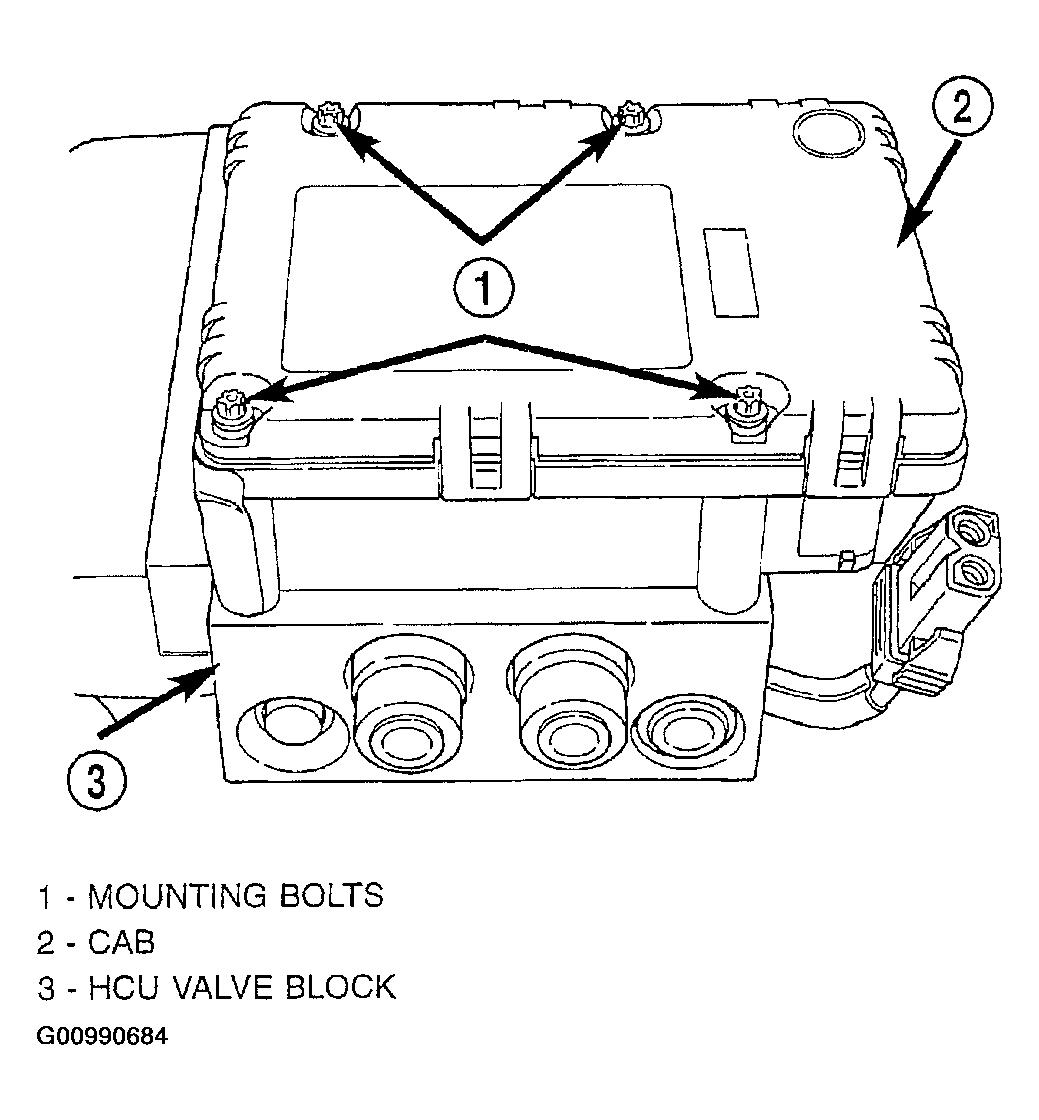

Fig 2: Removing CAB Attaching Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Remove the CAB from the HCU (Fig 3 ).

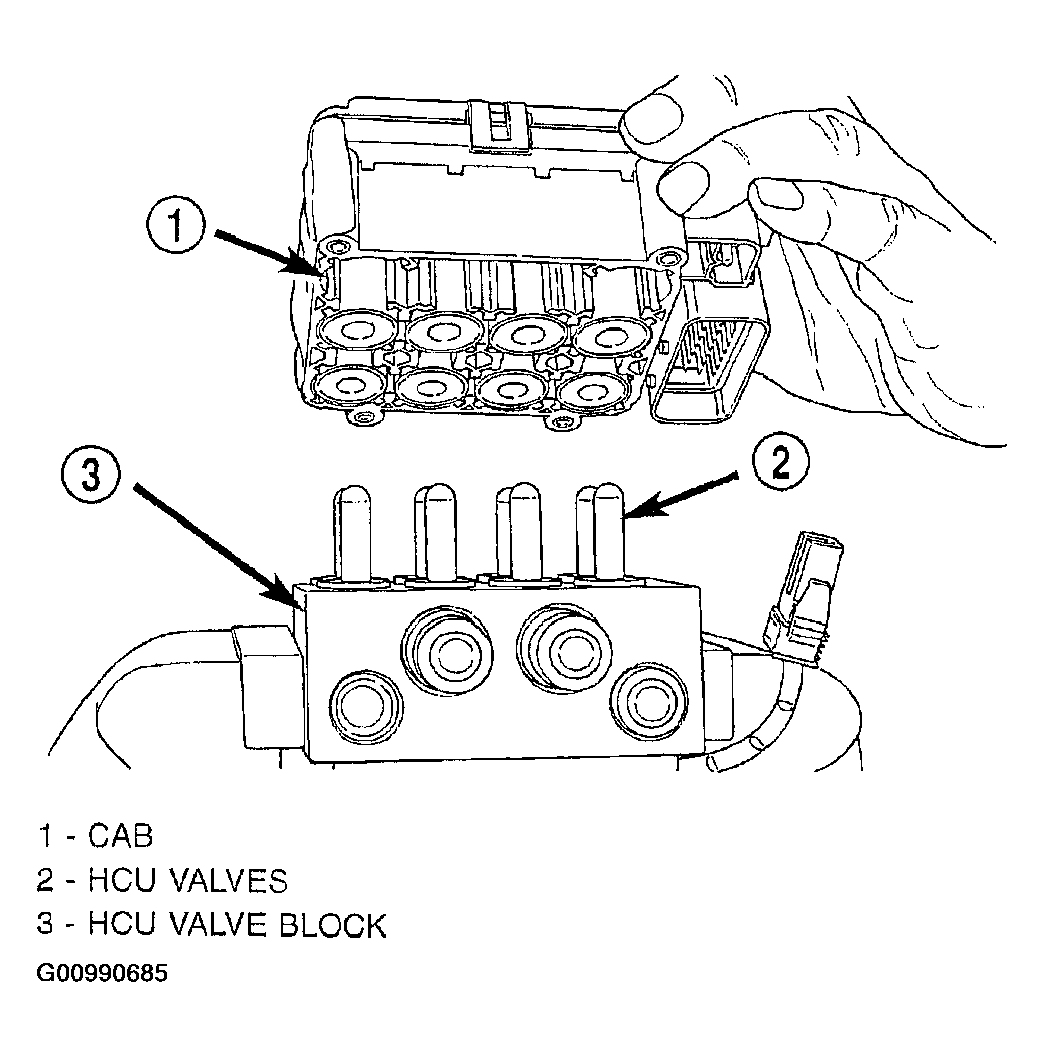

Fig 3: Removing/Installing CAB
Courtesy of DAIMLERCHRYSLER CORP.
