Disconnect power mirror switch connector. See POWER MIRROR SWITCH under REMOVAL & INSTALLATION. Connect one end of a jumper wire to a 12-volt source and other end to specified power mirror connector terminals (mirror side). See POWER MIRROR MOTOR TEST table. Connect one end of another jumper wire to a good ground and other end to specified power mirror connector terminals (mirror side). If mirror does not operate as specified, check for open or shorted circuit between power mirror connector and power mirror. See WIRING DIAGRAMS . If circuits are okay, replace power mirror assembly. See POWER MIRROR ASSEMBLY under REMOVAL & INSTALLATION.

POWER MIRROR MOTOR TEST

Apply 12 Volts To Terminal No.

Ground Terminal No.

Mirror Operation

Master Switch Connector

Right Up

Left Up

Right Down

Left Down

Right Right

Left Right

Right Left

Left Left

Right Mirror Door Connector⁽¹⁾

Right Up

Right Down

Right Right

Right Left

⁽²⁾

⁽¹⁾	Right Mirror Door 6-pin connectors are located at leading edge of both front doors. See Figure and Fig 1 .

⁽²⁾	Used for mirror heater. No mirror movement will be observed.

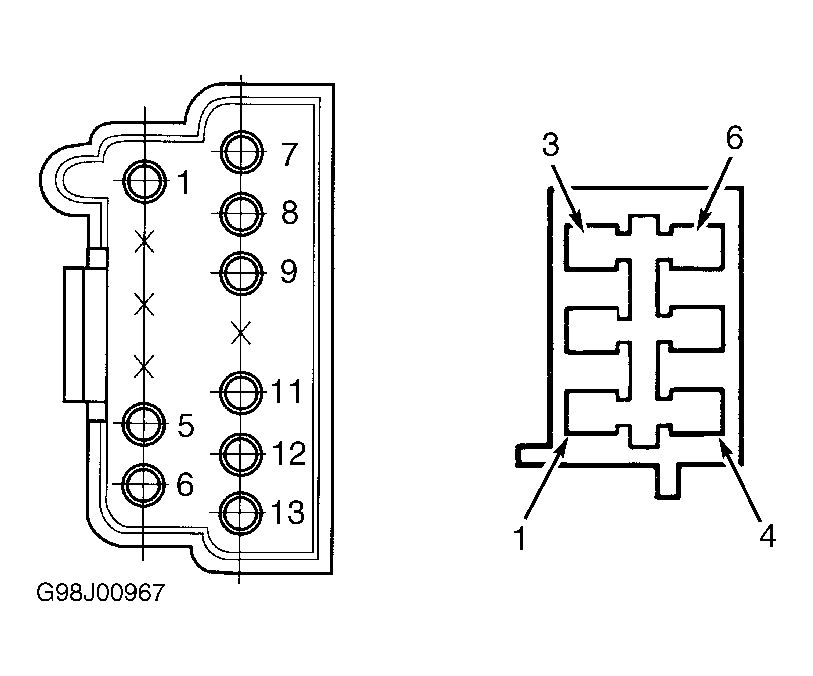

Fig 1: Identifying Power Mirror Switch 13-Pin & Door 6-Pin Connector Terminals

Courtesy of CHRYSLER CORP.
