2002 Chrysler Intrepid BaseFACTORY OEM SERVICE PROCEDURE
Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Body Control Module | On Back Of Junction Block |
| Data Link Connector | Under Left Side Of Instrument Panel, Above Brake Pedal |
| Door 6-Pin Connector | At Leading Edge Of Appropriate Door |
| Junction Block | Behind Left Instrument Panel End Cap |
| Memory Heated Seat/Mirror Module | Under Driver Seat |
| Memory Set Switch | On Outboard Side Of Driver Seat |

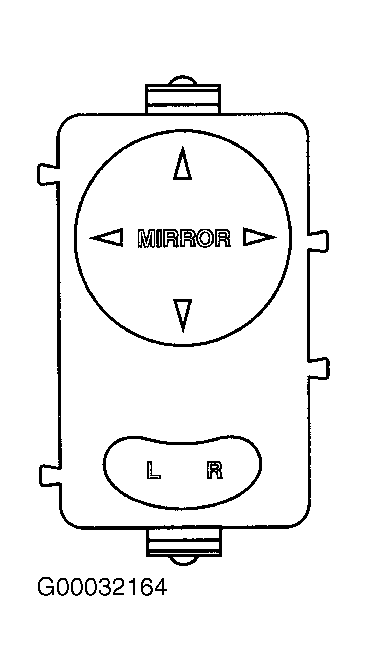

| Power Mirror Switch | On Door Trim Panel |
| Rear Window Defogger Relay | Right Side Of Trunk, Under Carpet |
