2002 Chrysler Intrepid (CANADA) V6-2.7LFACTORY OEM SERVICE PROCEDURE
Manifold Pressure/Vacuum Sensor: Service and Repair
REMOVAL
1. Remove the negative battery cable.
2. Disconnect the electrical connector from the MAP sensor.
3. Remove bolt from sensor.
4. Remove sensor.
INSTALLATION
1. The sensor mounts onto intake manifold plenum. Tighten screws to 4.5 Nm (40 in. lbs.) torque.
2. Attach electrical connector to sensor.
3. Install the negative battery cable.
1. Remove the negative battery cable.

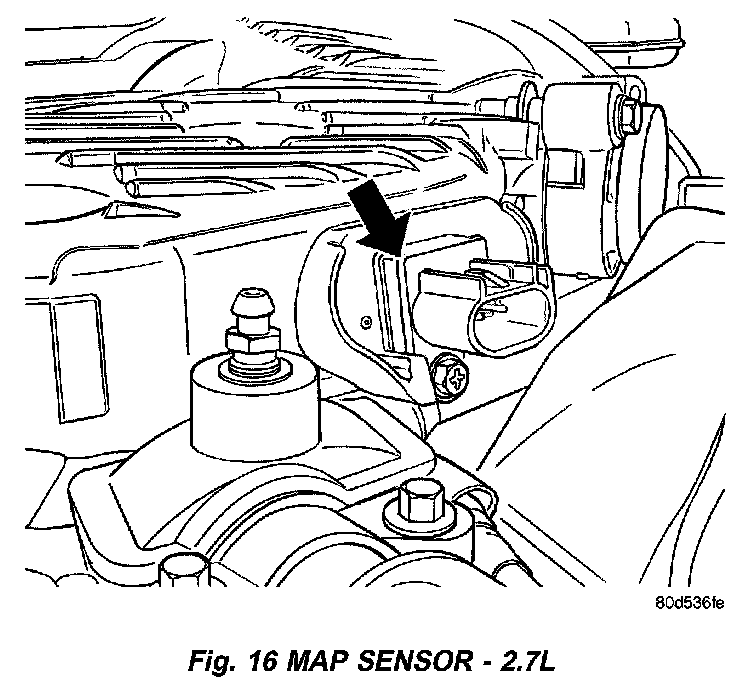

Fig.16 MAP Sensor - 2.7L:
2. Disconnect the electrical connector from the MAP sensor.
3. Remove bolt from sensor.
4. Remove sensor.
INSTALLATION

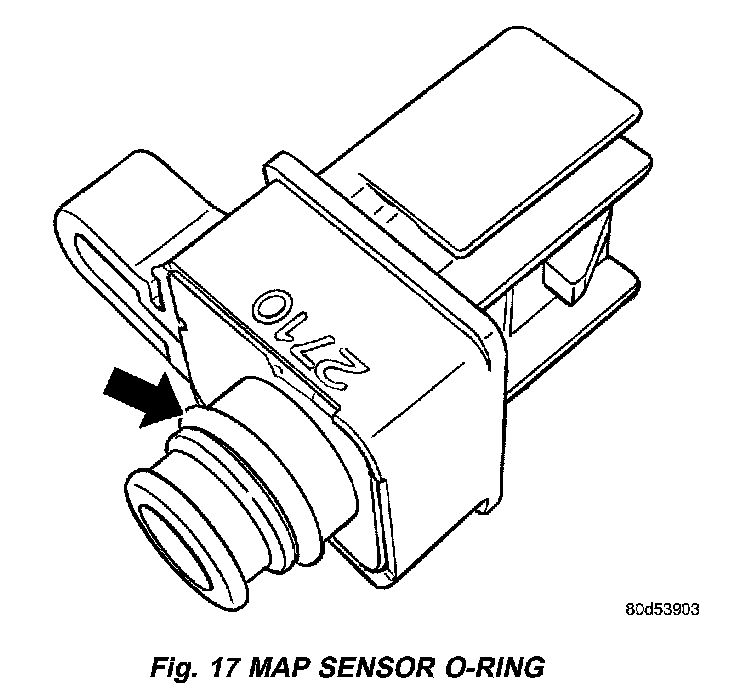

Fig.17 MAP Sensor O-Ring:
1. The sensor mounts onto intake manifold plenum. Tighten screws to 4.5 Nm (40 in. lbs.) torque.
2. Attach electrical connector to sensor.
3. Install the negative battery cable.
