2002 Chrysler Intrepid (CANADA) V6-2.7LFACTORY OEM SERVICE PROCEDURE
Connector Replacement
REMOVAL
1. Disconnect battery
2. Release Connector Lock (Fig. 10).
3. Disconnect the connector being repaired from its mating half/component.
4. Remove the dress cover (if applicable) (Fig. 10).
5. Release the Secondary Terminal Lock, if required (Fig. 11).
6. Position the connector locking finger away from the terminal using the proper special tool. Pull on the wire to remove the terminal from the connector (Fig. 12).
INSTALLATION
1. Insert the removed terminal in the same cavity on the repair connector.
2. Repeat steps for each terminal in the connector, being sure that all wires are inserted into the proper cavities. For additional connector pin-out identification, refer to the wiring diagrams.
3. When the connector is re-assembled, the secondary terminal lock must be placed in the locked position to prevent terminal push out.
4. Replace dress cover (if applicable).
5. Connect connector to its mating half/component.
6. Connect battery and test all affected systems.
1. Disconnect battery

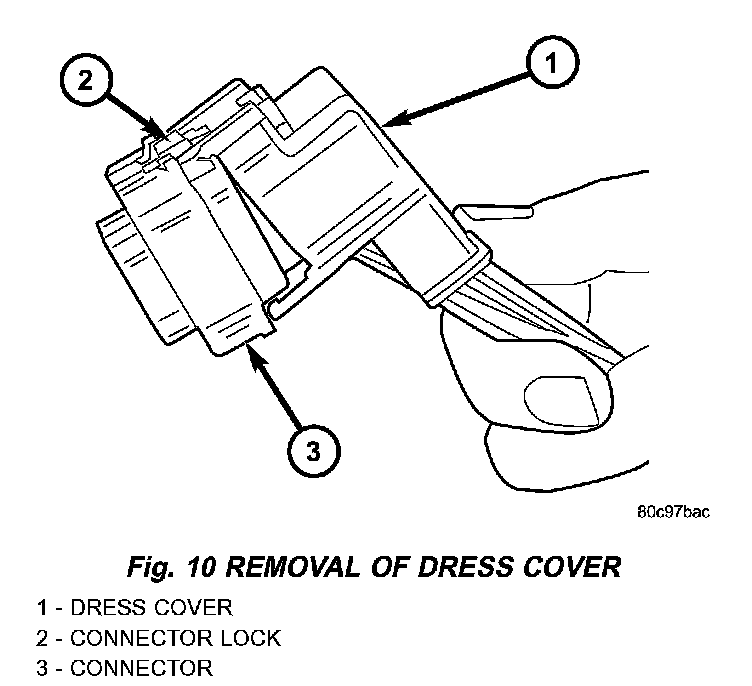

Fig. 10 Removal Of Dress Cover:
2. Release Connector Lock (Fig. 10).
3. Disconnect the connector being repaired from its mating half/component.
4. Remove the dress cover (if applicable) (Fig. 10).

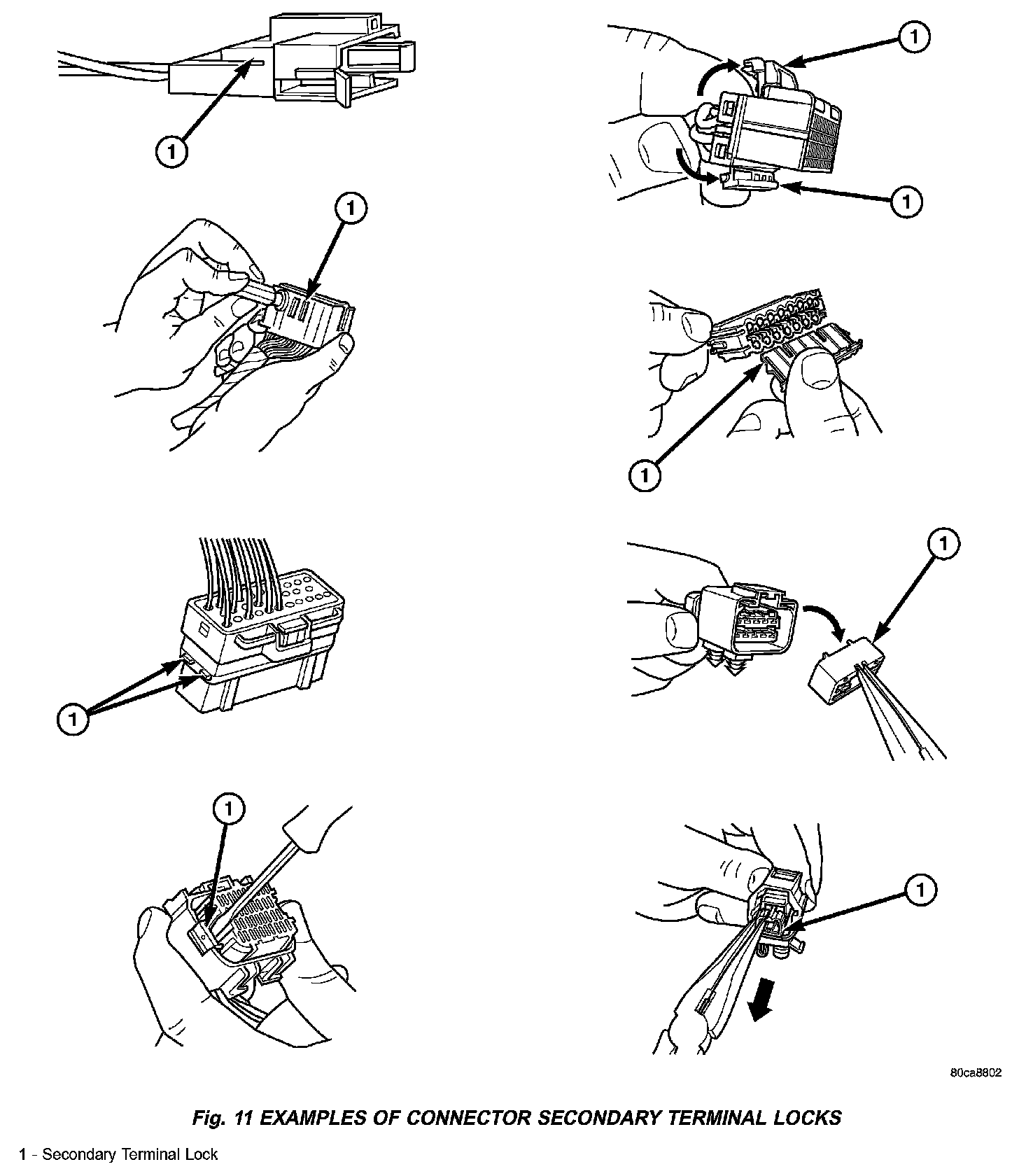

Fig. 11 Examples Of Connector Secondary Terminal Locks:
5. Release the Secondary Terminal Lock, if required (Fig. 11).

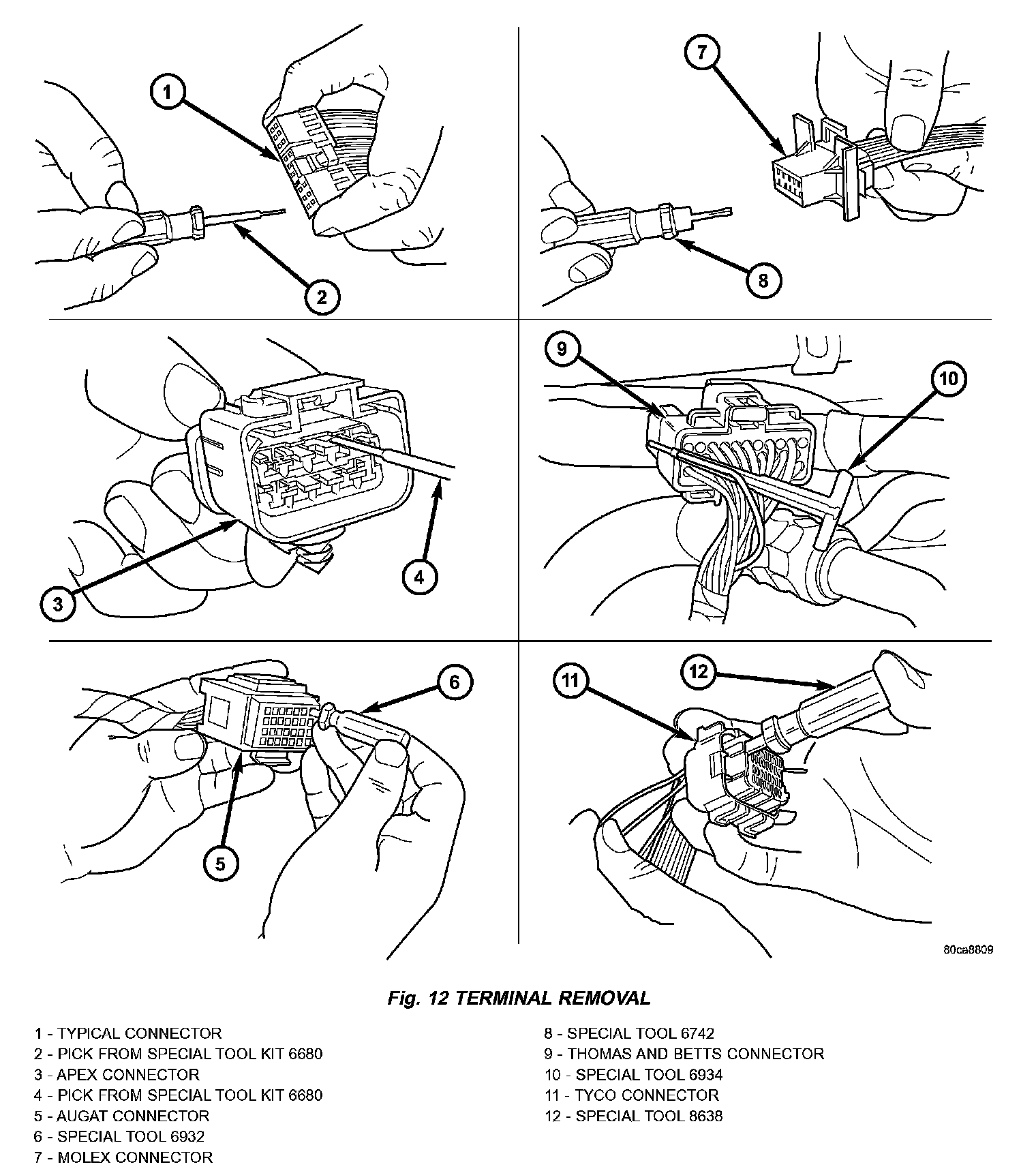

Fig. 12 Terminal Removal:
6. Position the connector locking finger away from the terminal using the proper special tool. Pull on the wire to remove the terminal from the connector (Fig. 12).
INSTALLATION
1. Insert the removed terminal in the same cavity on the repair connector.
2. Repeat steps for each terminal in the connector, being sure that all wires are inserted into the proper cavities. For additional connector pin-out identification, refer to the wiring diagrams.
3. When the connector is re-assembled, the secondary terminal lock must be placed in the locked position to prevent terminal push out.
4. Replace dress cover (if applicable).
5. Connect connector to its mating half/component.
6. Connect battery and test all affected systems.
