2002 Chrysler Intrepid (CANADA) V6-2.7LFACTORY OEM SERVICE PROCEDURE
Camshaft Position Sensor: Service and Repair

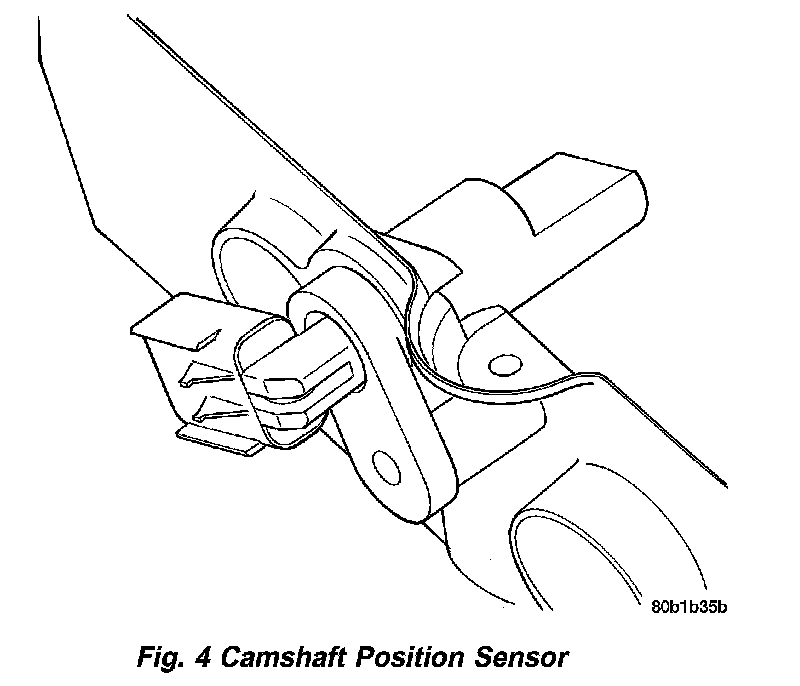

Fig. 4 Camshaft Position Sensor - 2.7L:
REMOVAL
The camshaft position sensor is mounted in the front of the head.
1. Disconnect electrical connector from sensor.
2. Remove camshaft position sensor screw.
3. Without pulling on the connector, pull the sensor out of the chain case cover.
INSTALLATION
The camshaft position sensor is mounted in the front of the head.
1. Install sensor in the chain case cover and push sensor in until contact is made with the boss on the head. While holding the sensor in this position, install and tighten the retaining bolt to 12 Nm (105 in. lbs.) torque.
2. Attach electrical connector to sensor.
