2002 Chrysler Intrepid (CANADA) V6-2.7LFACTORY OEM SERVICE PROCEDURE
Rear Window Defogger Inoperative (MTC)

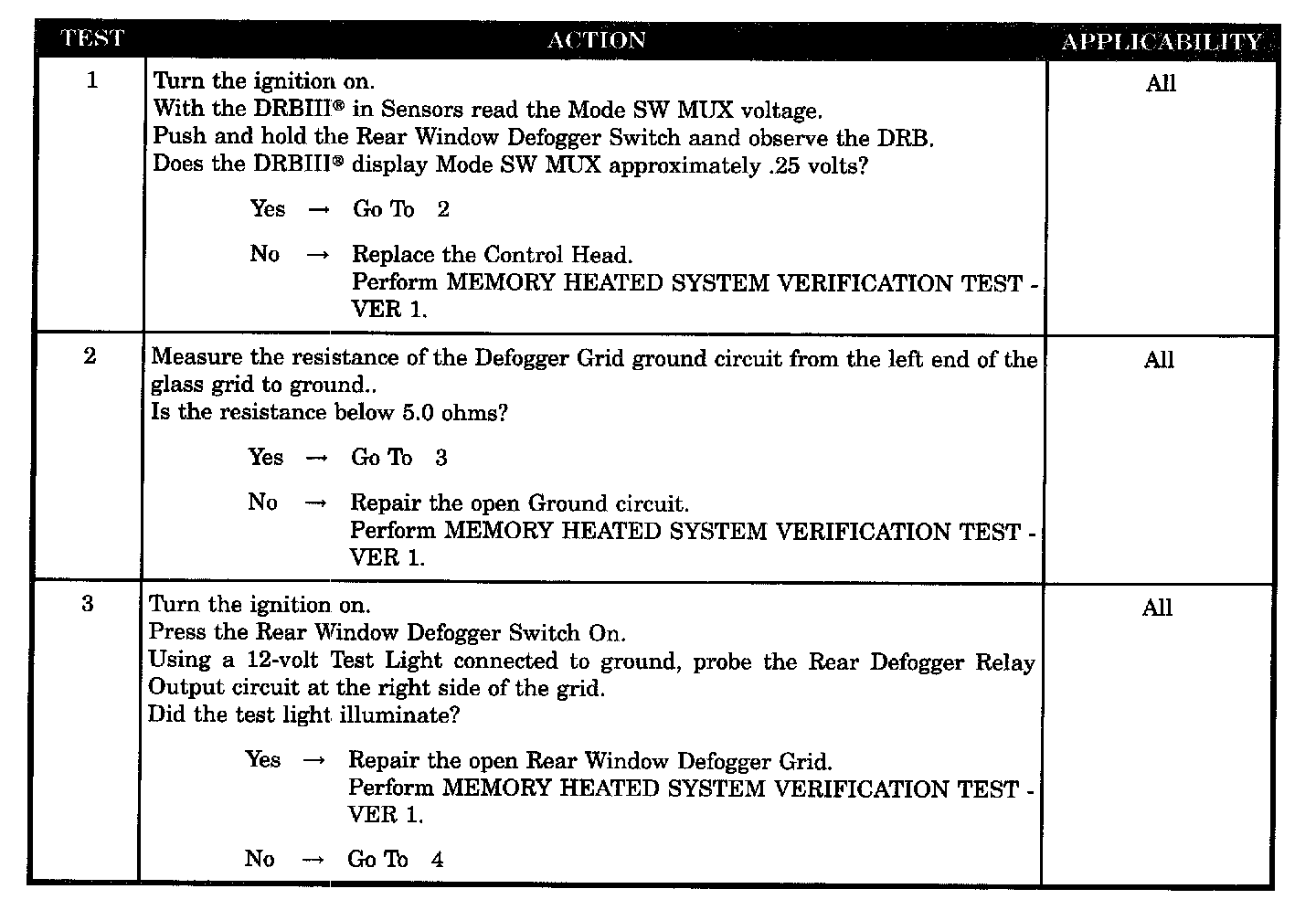

Test 1 - 3:

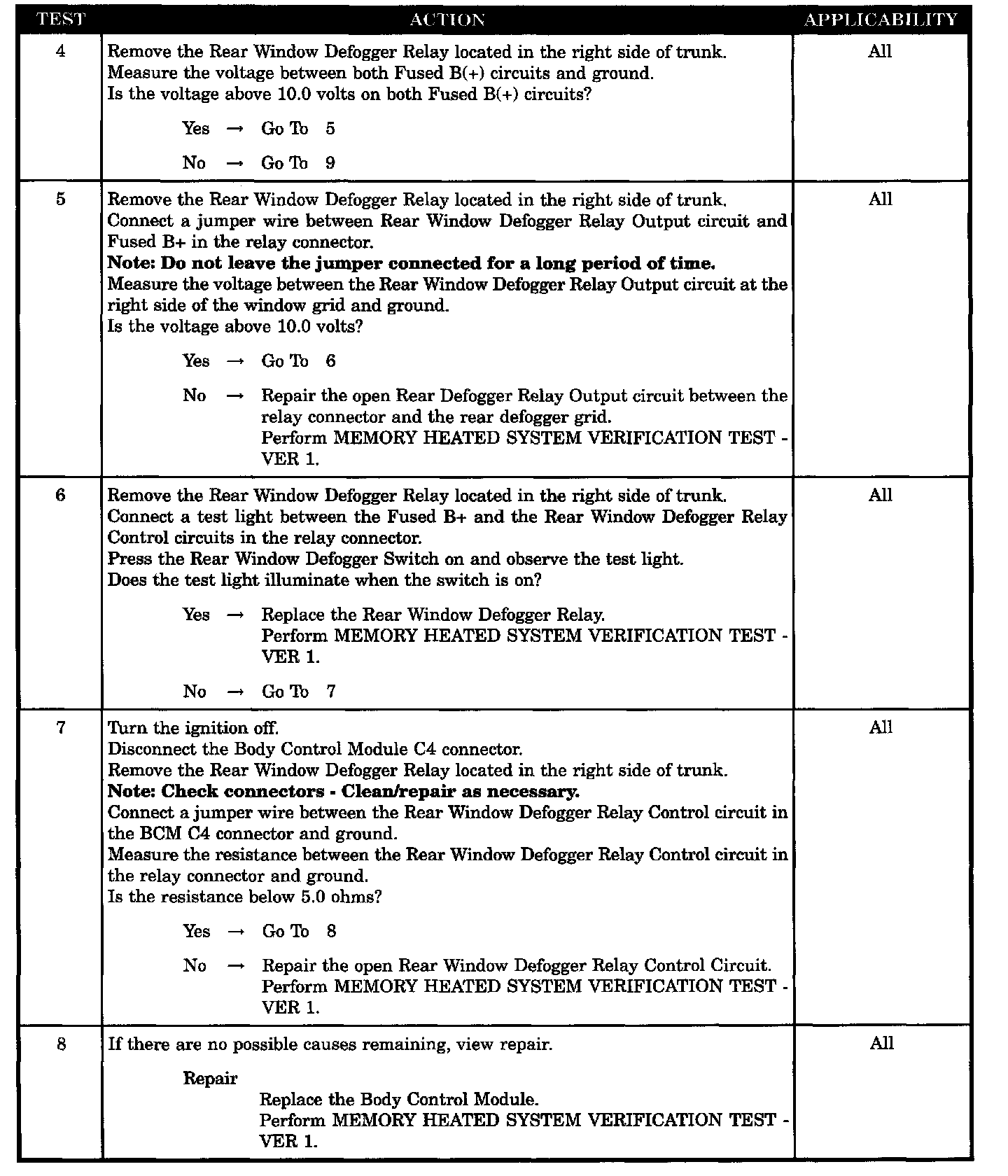

Test 4 - 8:
Test 9 - 11:
SYMPTOM
REAR WINDOW DEFOGGER INOPERATIVE MANUAL AIR CONDITIONING
POSSIBLE CAUSES
- Rear defog operates OK
- Defogger grid ground circuit open
- Rear window defogger grid open
- Rear window defogger relay-open
- Rear defogger relay output circuit open
- Rear window defogger relay control circuit open
- Rear window defogger relay output shorted to ground
- Fused (B+) shorted to ground
- Fused B+ circuit open
- Control head - rear defogger switch
- Body control module - rear defogger relay control open
