2002 Chrysler Intrepid (CANADA) V6-2.7LFACTORY OEM SERVICE PROCEDURE
Mode Door Inoperative

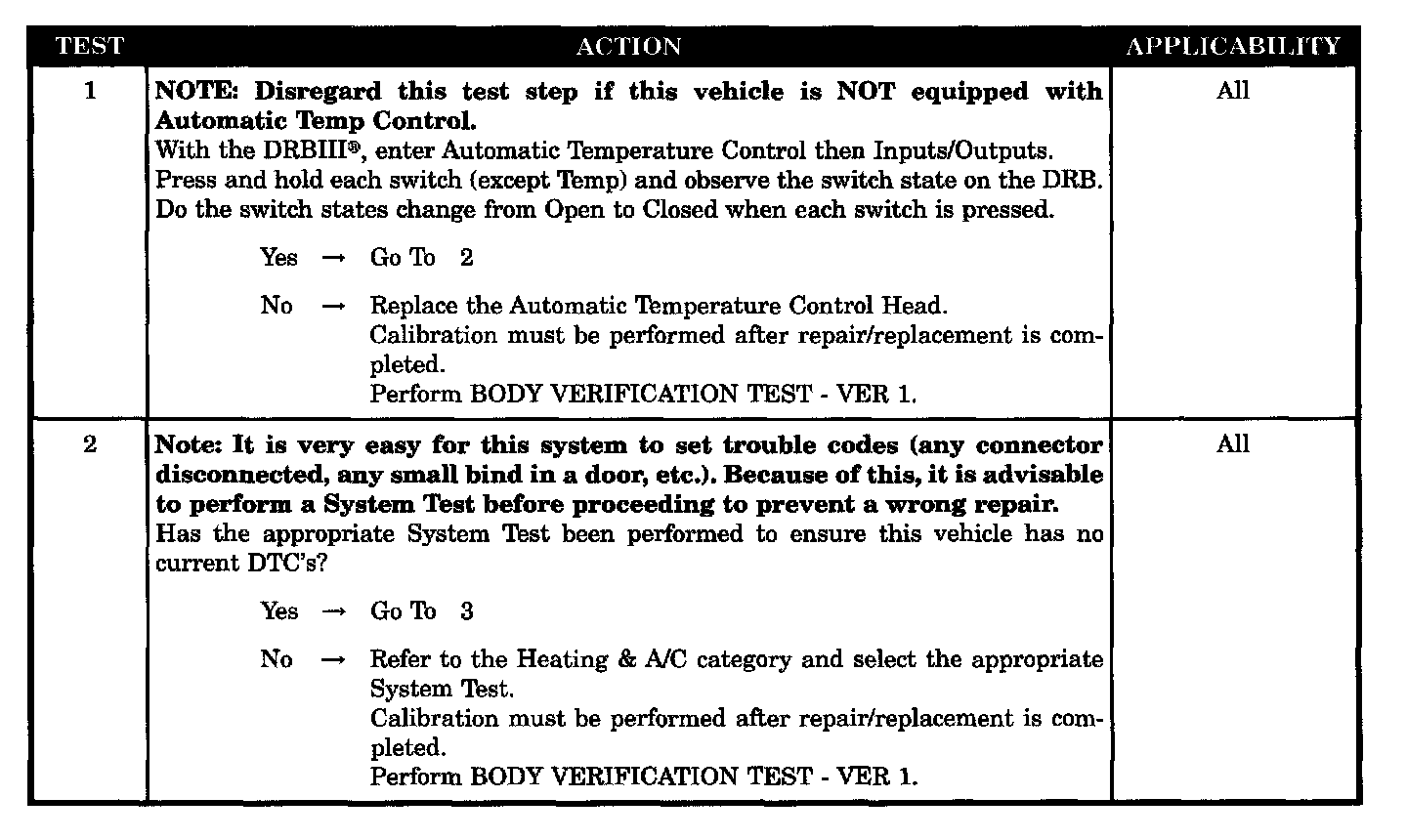

Test 1 - 2:

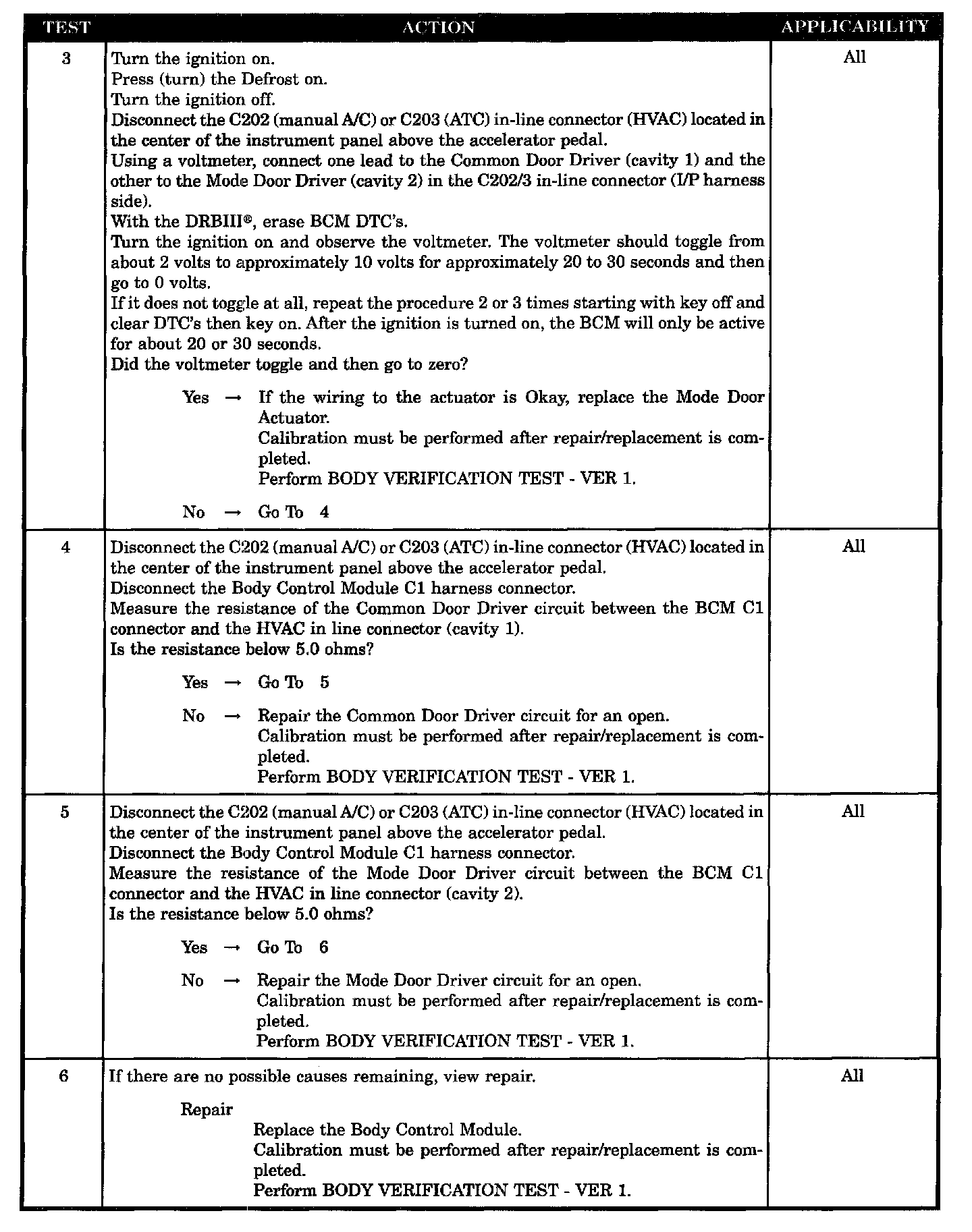

Test 3 - 6:
SYMPTOM
MODE DOOR INOPERATIVE
POSSIBLE CAUSES
- ATC head mode door buttons open
- Mode door inoperable pre test
- Mode door actuator check
- Common door driver circuit open
- Mode door driver circuit open
- Body control module
