2002 Chrysler Intrepid (CANADA) V6-2.7LFACTORY OEM SERVICE PROCEDURE
Fuel Gauge Not Operating Properly

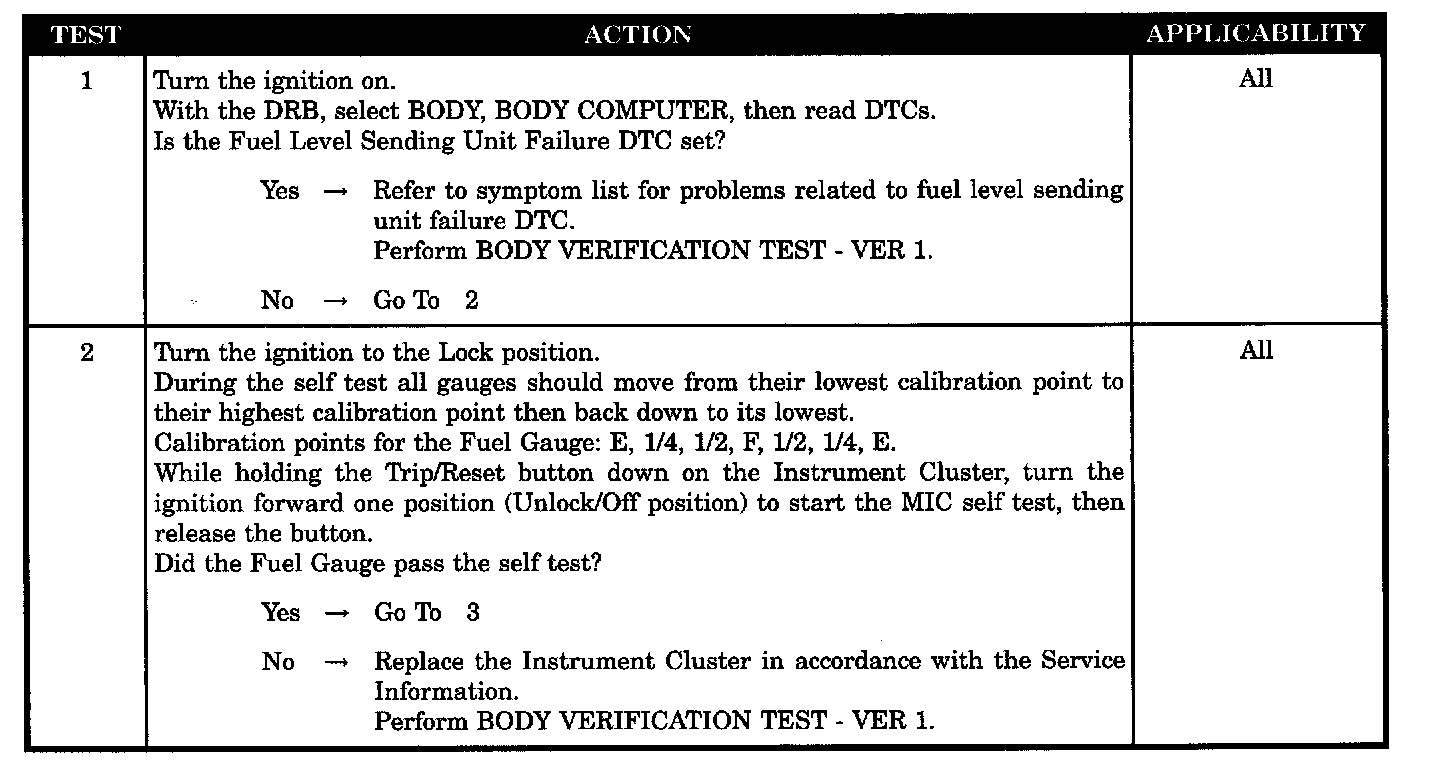

Test 1 - 2:

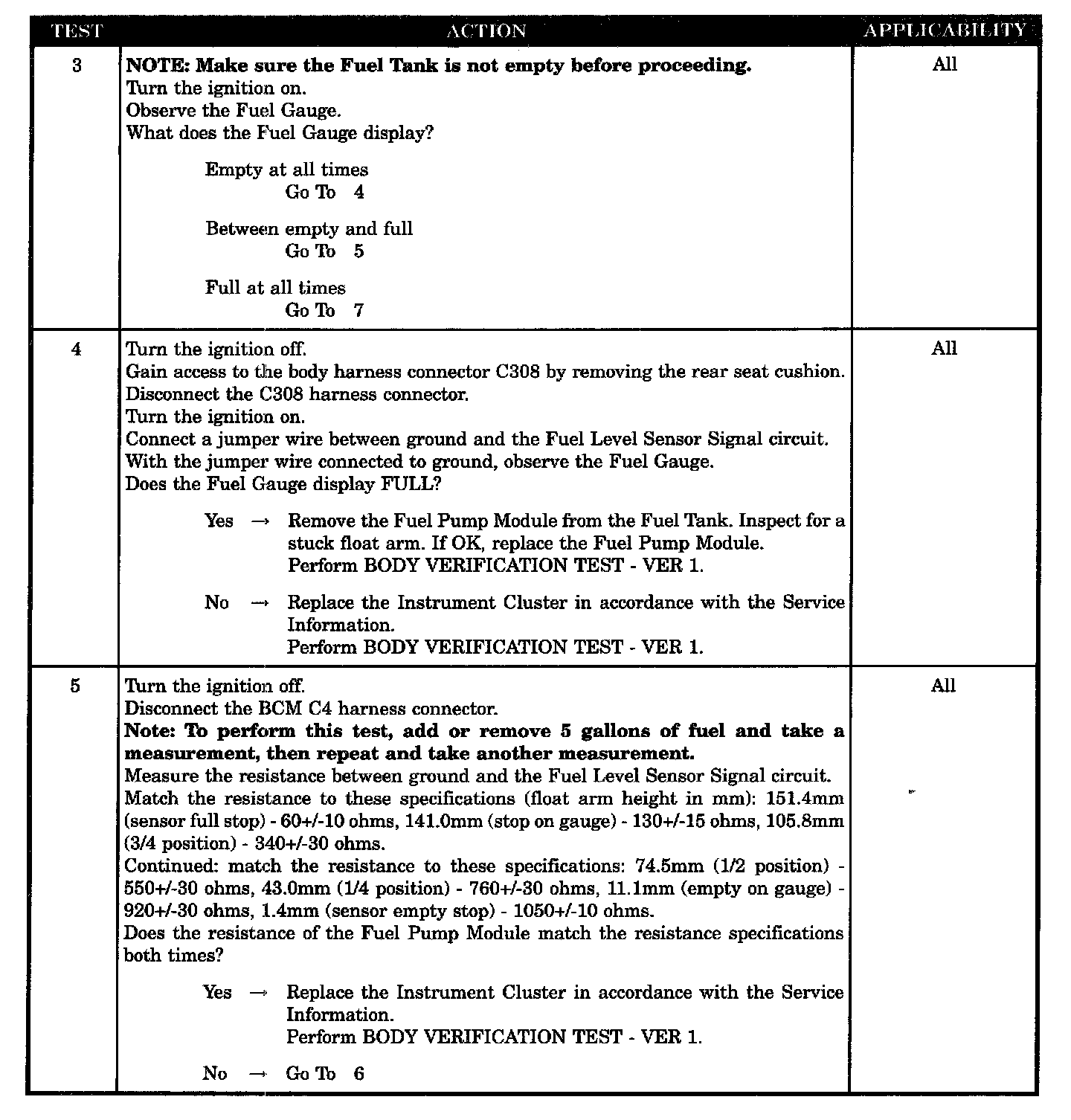

Test 3 - 5:

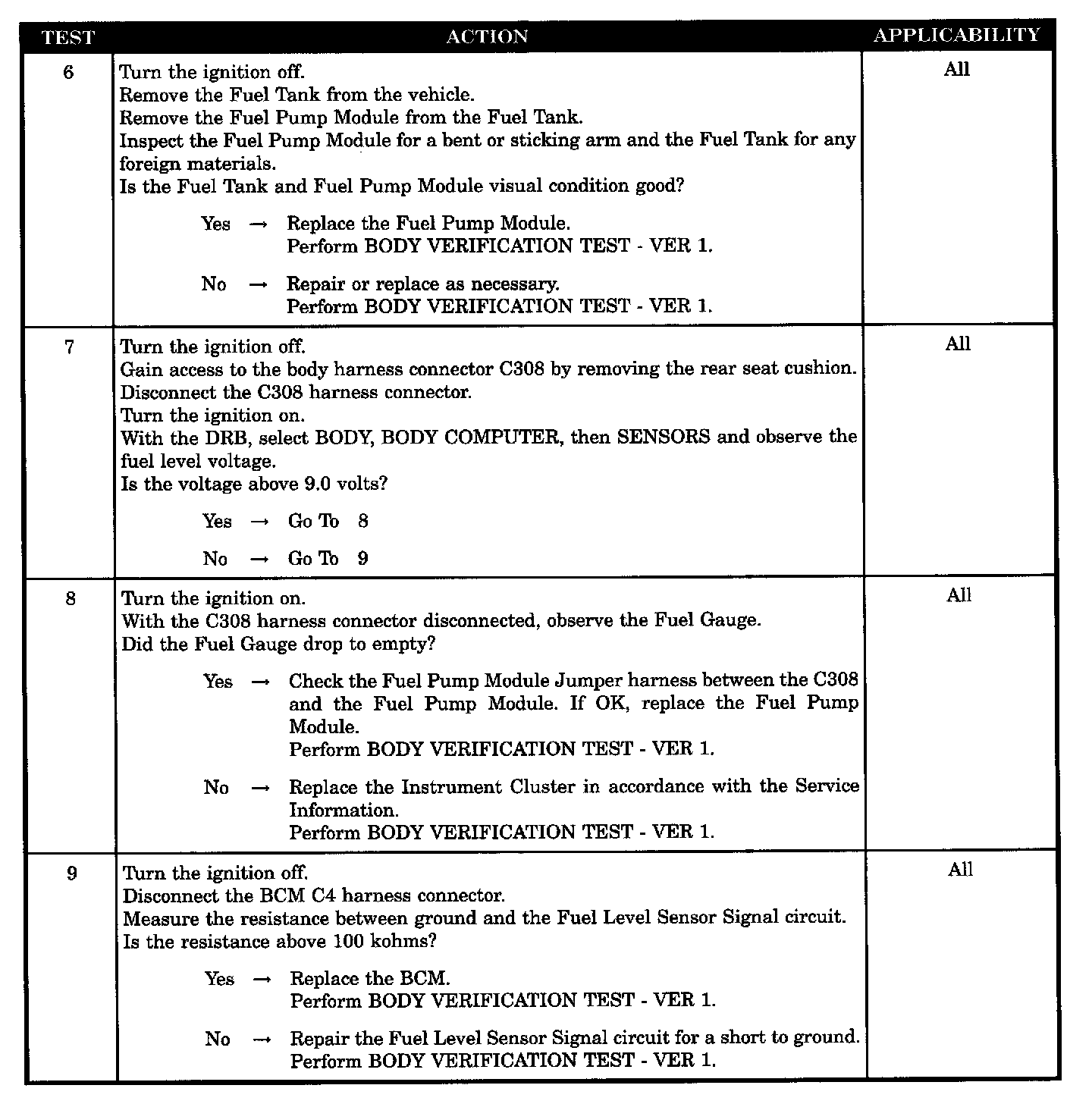

Test 6 - 9:
SYMPTOM
FUEL GAUGE NOT OPERATING PROPERLY
POSSIBLE CAUSES
- Body control module
- Instrument cluster
- Instrument cluster
- Visual condition not good
- Check for fuel level sending unit related BCM DTCS
- Determine if full gauge is inaccurate
- Fuel gauge displays empty
- Fuel level sensor signal circuit shorted to ground
- Observe the fuel gauge
- Inspect the fuel pump module and the fuel tank
- Instrument cluster self test
