2000 Chrysler Voyager Base, 2.4 BFACTORY OEM SERVICE PROCEDURE
Connector Identification
CONNECTOR IDENTIFICATION DIRECTORY
| Connector | Illustration | |
|---|---|---|

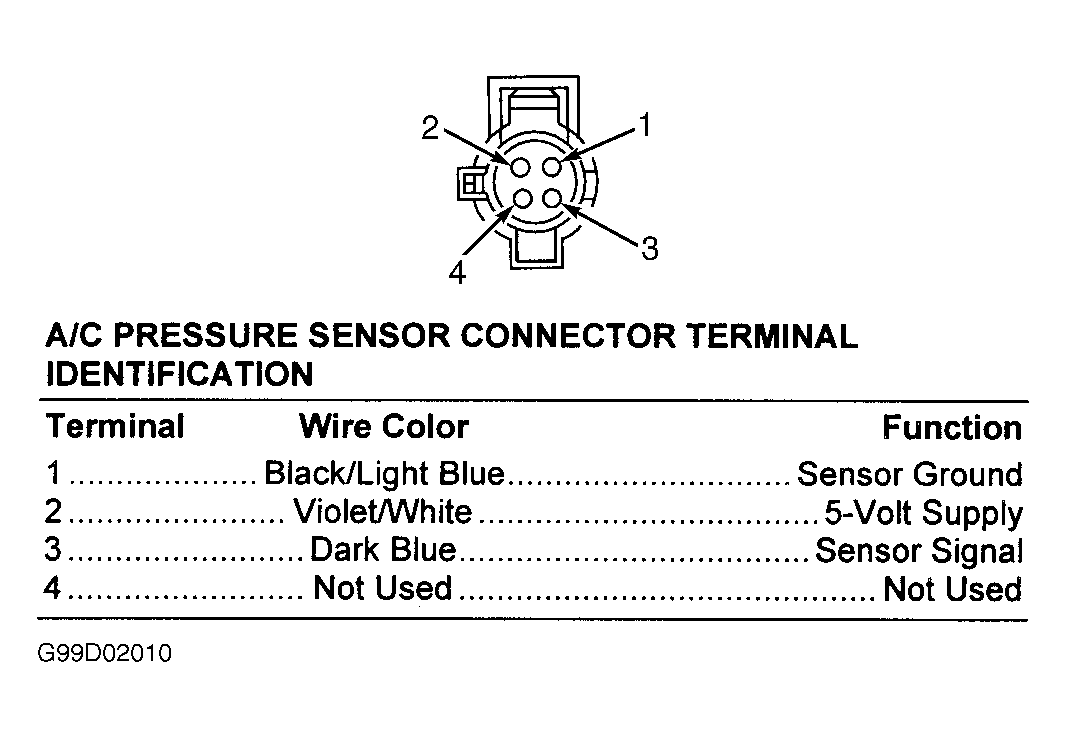

| A/C Pressure Sensor | Fig 1 | |
| Body Control Module Connector "A" | Fig 2 | |
| Body Control Module Connector "B" | Fig 3 | |
| Brake Switch | Fig 4 | |
| Camshaft Position Sensor | ||
| 2.4L, 3.3L & 3.8L | Fig 5 | |
| 3.0L | Fig 6 | |
| Crankshaft Position Sensor | Fig 7 | |
| Data Link Connector | Fig 8 | |
| Downstream (1/2) Oxygen Sensor | Fig 9 | |
| EGR Solenoid | Fig 10 | |
| Engine Coolant Temperature Sensor | Fig 11 | |
| EVAP Purge Solenoid | Fig 12 | |
| Fuel Injector | ||
| 2.4L | Fig 13 | |
| 3.0L | Fig 14 | |
| 3.3L & 3.8L | Fig 15 | |
| Fuel Tank Module | Fig 16 | |
| Idle Air Control Motor | Fig 17 | |
| Ignition Coil | ||
| 2.4L | Fig 18 | |
| 3.0L | Fig 19 | |
| 3.3L & 3.8L | Fig 20 | |
| Intake Air Temperature Sensor | ||
| 2.4L | Fig 21 | |
| Knock Sensor | Fig 22 | |
| Leak Detection Pump | ||
| 2.4L, 3.3L & 3.8L | Fig 23 | |
| Manifold Absolute Pressure Sensor | ||
| 2.4L, 3.3L & 3.8L | Fig 24 | |
| 3.0L | Fig 25 | |
| Message Center | Fig 26 | |
| Output Speed Sensor | ||
| 4-Speed A/T | Fig 27 | |
| Park/Neutral Switch | ||
| 3-Speed A/T | Fig 28 | |
| Powertrain Control Module | Fig 29 | |
| Radiator Cooling Fan Relay | Fig 30 | |
| Speed Control Servo | Fig 31 | |
| Throttle Position Sensor | Fig 32 | |
| Torque Converter Clutch Solenoid | ||
| 3-Speed A/T | Fig 33 | |
| Transmission Control Module | ||
| 4-Speed A/T | Fig 34 | |
| Transmission Range Sensor | ||
| 4-Speed A/T | Fig 35 | |
| Upstream (1/1) Oxygen Sensor | Fig 36 | |
| Vehicle Speed Sensor | ||
| 3-Speed A/T | Fig 37 | |
