CONNECTOR IDENTIFICATION DIRECTORY

Connector		Illustration
A/C Pressure Sensor		Fig 1
Battery Temperature Sensor		Fig 2
Body Control Module Connector C1		Fig 3
Body Control Module Connector C2		Fig 4
Body Control Module Connector C3		Fig 5
Body Control Module Connector C4		Fig 6
Body Control Module Connector C5		Fig 7
Brake Switch		Fig 8
Clockspring 4-Pin Connector		Fig 9
Crankshaft Position Sensor		Fig 10
Data Link Connector		Fig 11
Distributor Connector
2-Pin Connector		Fig 12
6-Pin Connector		Fig 13
Downstream (1/2) Oxygen Sensor		Fig 14
EGR Solenoid		Fig 15
Engine Coolant Temperature Sensor		Fig 16
EVAP Purge Solenoid		Fig 17
Fuel Injector		Fig 18
Fuel Pump Module		Fig 19
Idle Air Control Motor		Fig 20
Intake Air Temperature Sensor		Fig 21
Manifold Absolute Pressure Sensor		Fig 22
Output Speed Sensor		Fig 23
Power Steering Pressure Switch		Fig 24
Powertrain Control Module		Fig 25
Speed Control Servo		Fig 26
Throttle Position Sensor		Fig 27
Transmission Control Module		Fig 28
Transmission Range Sensor		Fig 29
Upstream (1/1) Oxygen Sensor		Fig 30

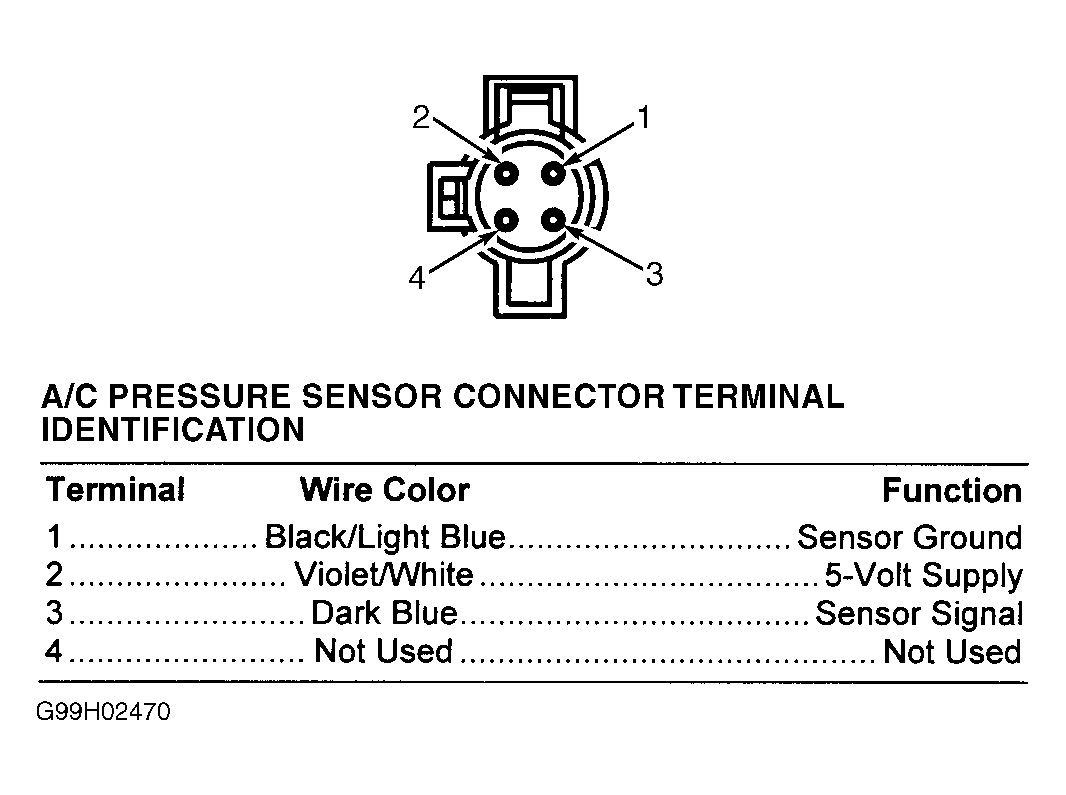

Fig 1: Identifying A/C Pressure Sensor Connector Terminals

Courtesy of DAIMLERCHRYSLER CORPORATION
