2000 Chrysler Neon LE, AutomaticFACTORY OEM SERVICE PROCEDURE
Connector Identification
CONNECTOR IDENTIFICATION DIRECTORY
| Connector | Illustration |
|---|---|

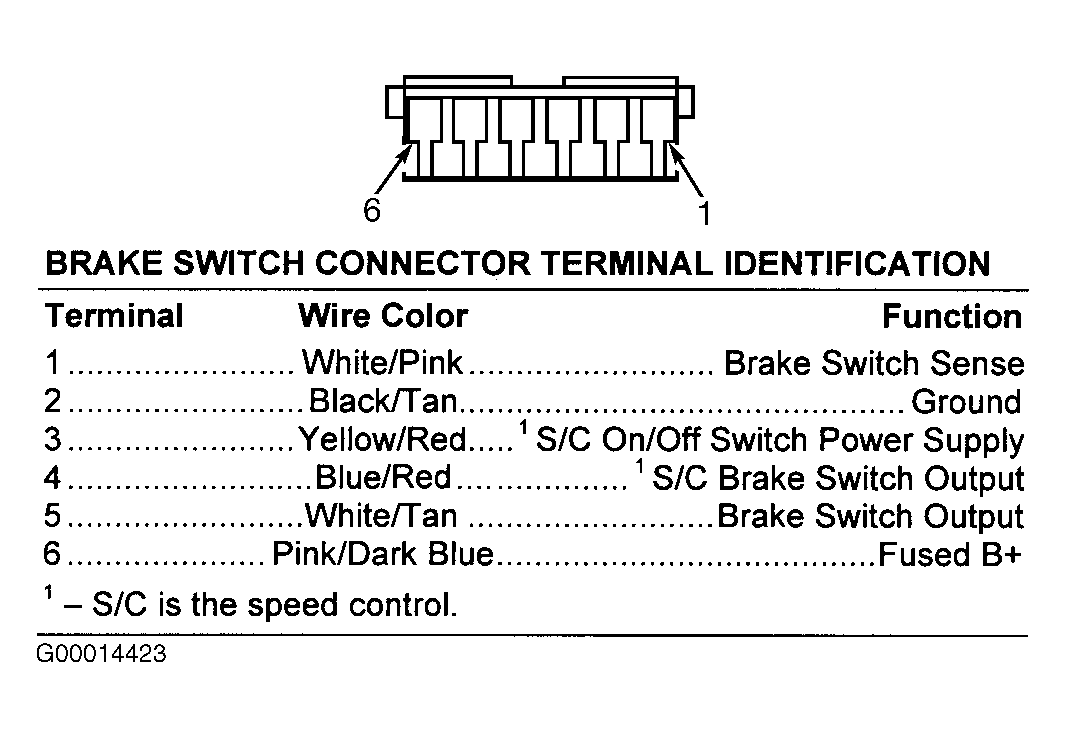

| Brake Switch | Fig 1 |
| Camshaft Position Sensor | Fig 2 |
| Crankshaft Position Sensor | Fig 3 |
| Data Link Connector (DLC) | Fig 4 |
| Downstream (1/2) Oxygen Sensor | Fig 5 |
| Engine Coolant Temperature Sensor | Fig 6 |
| EVAP Purge Solenoid | Fig 7 |
| Fuel Pump Module | Fig 8 |
| MAP Sensor | Fig 9 |
| Idle Air Control Motor | Fig 10 |
| Instrument Cluster | Fig 11 |
| Ignition Coil | Fig 12 |
| Injector | Fig 13 |
| Knock Sensor | Fig 14 |
| Leak Detection Pump | Fig 15 |
| Park/Neutral Switch (A/T) | Fig 16 |
| Power Steering Pressure Switch | Fig 17 |
| Powertrain Control Module (PCM) | Fig 18 |
| Radiator Fan Control Relay | Fig 19 |
| Speed Control Servo | Fig 21 |
| Throttle Position Sensor | Fig 22 |
| Torque Converter Clutch Solenoid (A/T) | Fig 23 |
| Upstream (1/1) Oxygen Sensor | Fig 24 |
| Vehicle Speed Sensor | Fig 25 |
