2000 Chrysler Neon (CANADA) L4-2.0LFACTORY OEM SERVICE PROCEDURE
Window Handle: Service and Repair
WINDOW CRANK
REMOVAL
1. Open door.
2. Slide a window crank removal tool behind the window crank to release crank handle lock clip (Fig. 12).
3. Remove handle from regulator shaft.
INSTALLATION
1. Place the lock clip on the window crank.
2. Place window crank on regulator shaft with the window in the down position.
3. Orientate the window regulator crank handle appropriately at the 10 o'clock position and the left handle at the 2 o'clock position.
4. Push the handle in to the lock position on the regulator shaft.
REMOVAL
1. Open door.

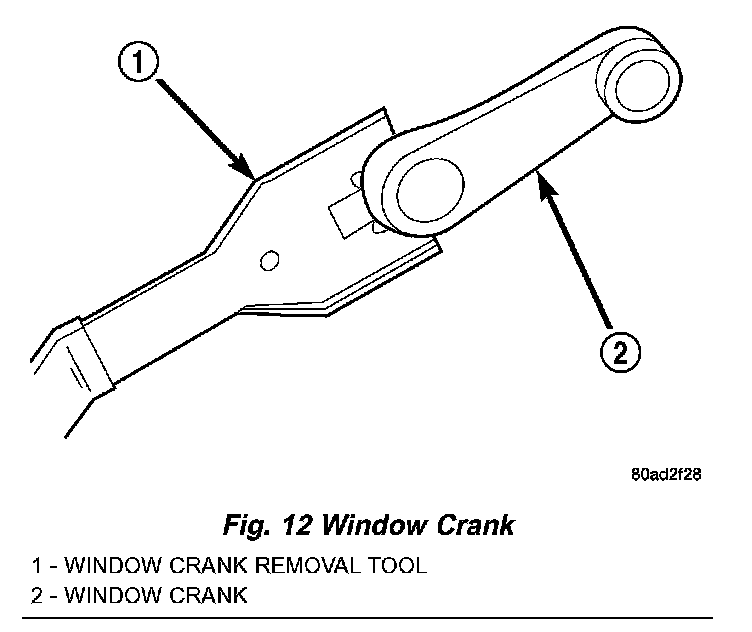

Fig. 12:
2. Slide a window crank removal tool behind the window crank to release crank handle lock clip (Fig. 12).
3. Remove handle from regulator shaft.
INSTALLATION
1. Place the lock clip on the window crank.
2. Place window crank on regulator shaft with the window in the down position.
3. Orientate the window regulator crank handle appropriately at the 10 o'clock position and the left handle at the 2 o'clock position.
4. Push the handle in to the lock position on the regulator shaft.
