2000 Chrysler Neon (CANADA) L4-2.0LFACTORY OEM SERVICE PROCEDURE
Ignition Switch: Service and Repair

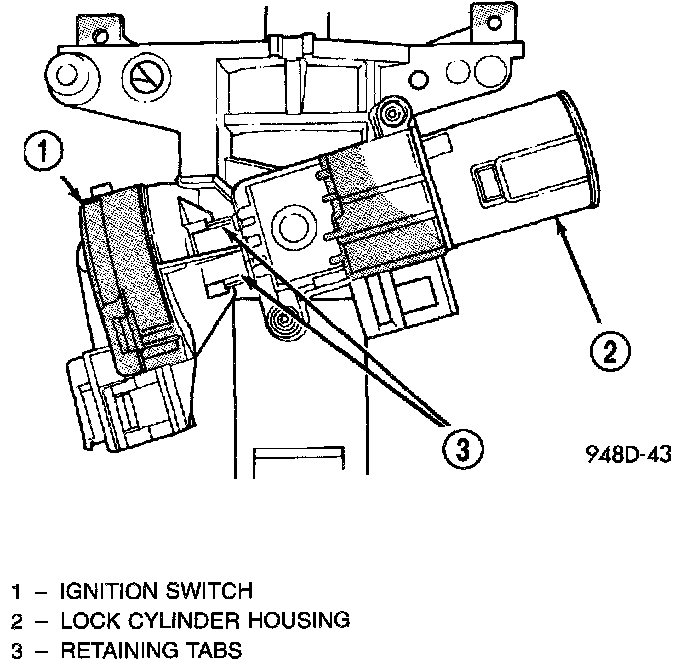

Ignition Switch - Viewed From Below Column:
The ignition switch attaches to the lock cylinder housing on the end opposite the lock cylinder. For ignition switch terminal and circuit identification.
REMOVAL
1. Disconnect negative cable from battery.

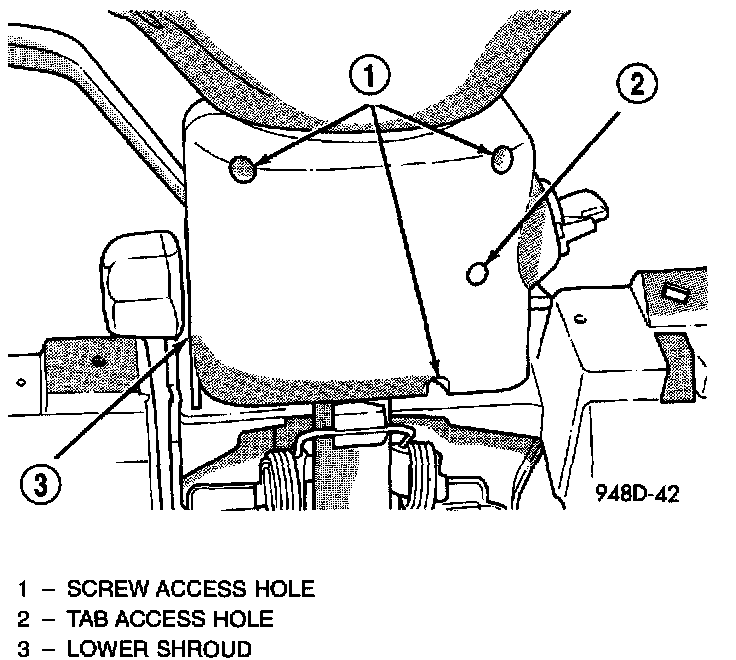

Steering Column Shrouds:
2. Place key cylinder in RUN position. Through the hole in the lower shroud, depress lock cylinder retaining tab and remove key cylinder.
3. Remove upper and lower shrouds from steering column.
4. Disconnect electrical connectors from ignition switch.

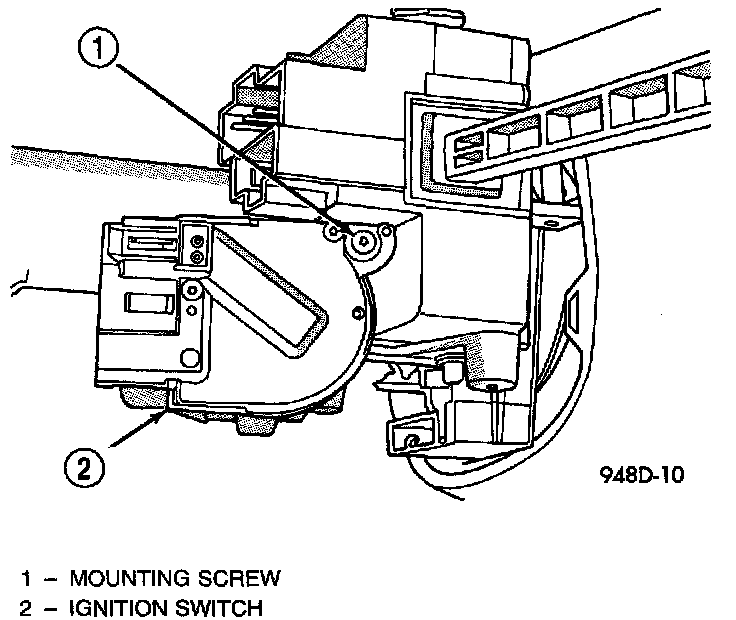

Ignition Switch Mounting Screw:
5. Remove ignition switch mounting screw with a # 10 Torx bit.

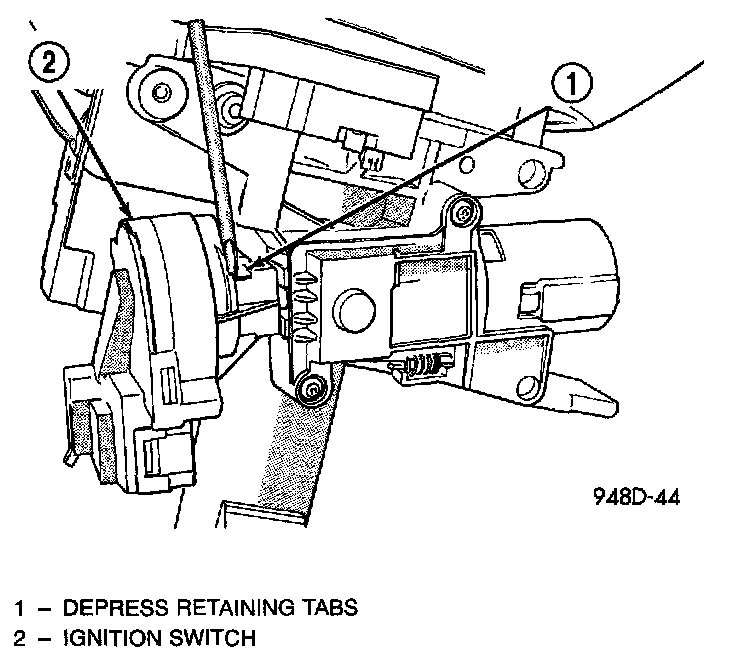

Removing Ignition Switch:
6. Depress retaining tabs and pull ignition switch from steering column.
INSTALLATION
1. Ensure the ignition switch is in the RUN position and the actuator shaft in the lock housing is in the RUN position.

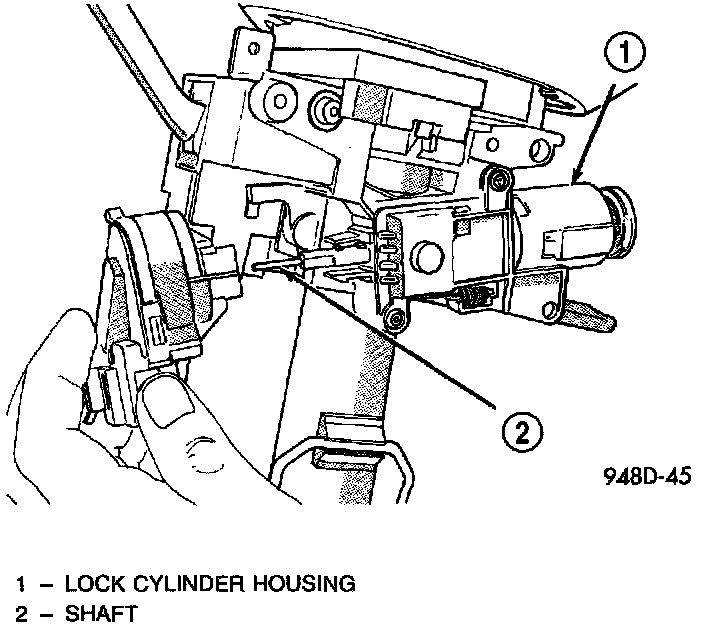

Ignition Switch Installation:
2. Carefully install the ignition switch. The switch will snap over the retaining tabs. Install mounting screw.
3. Install electrical connectors to ignition switch.
4. Install upper and lower shrouds.
5. Install key cylinder (cylinder retaining tab will depress only in the RUN position).
6. Connect negative cable to battery.
7. Check for proper operation of ignition switch and key-in warning switch.
