2000 Chrysler Neon (CANADA) L4-2.0LFACTORY OEM SERVICE PROCEDURE
Crankshaft Position Sensor: Service and Repair
Crankshaft Position Sensor:

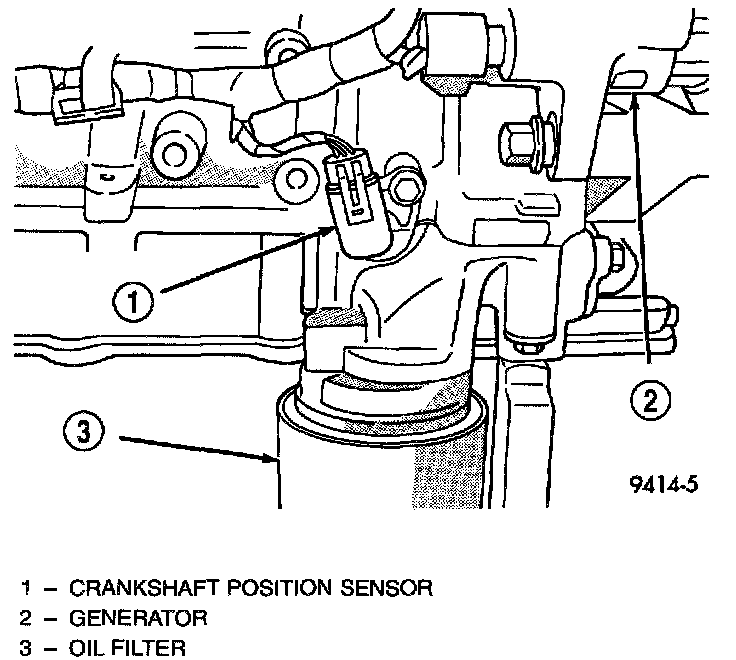

The Crankshaft Position Sensor mounts to the engine block behind the generator, just above the oil filter.
REMOVAL
1. Disconnect electrical connector from Crankshaft Position Sensor.
2. Remove sensor mounting screw. Remove sensor.
INSTALLATION
1. Install sensor. Install sensor mounting screw and tighten.
2. Connect electrical connector to Crankshaft Position Sensor.
