2000 Chrysler LHSFACTORY OEM SERVICE PROCEDURE

Component Locations

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, 2003 Chrysler 300M, and 2002 Dodge Intrepid. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For component locations, see Fig 1-Fig 4 .
COMPONENT LOCATIONS

Component Location
Body Control Module Attached To Back Of Junction Block
Data Link Connector Under Left Side Of Instrument Panel, Above Brake Pedal
Junction Block Behind Driver's Side Instrument Panel End Cover
Power Distribution Center Left Side Of Engine Compartment, In Front Of Coolant Reservoir
Remote Keyless Entry Module Between BCM & Junction Block, On Back Of Junction Block

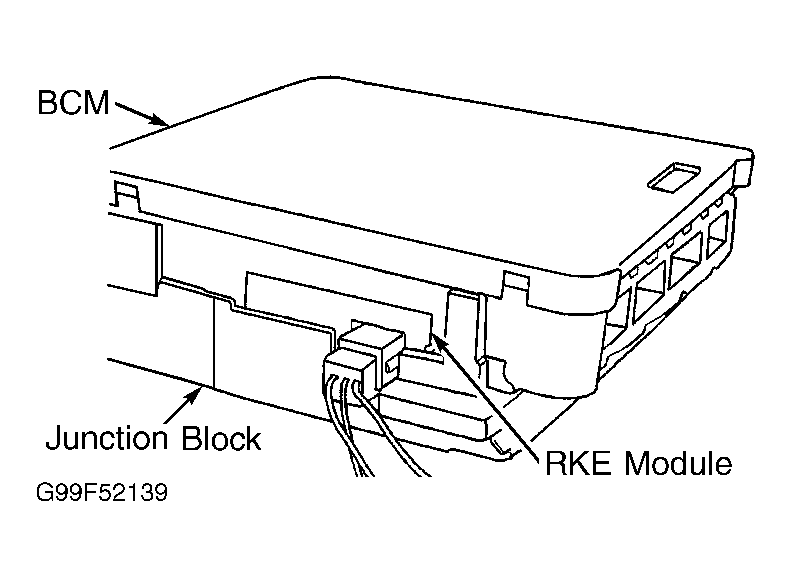

Fig 1: Locating Body Control Module & Remote Keyless Entry Module
G99F52139Courtesy of DAIMLERCHRYSLER CORP.
