2000 Chrysler Intrepid BaseFACTORY OEM SERVICE PROCEDURE

Front Wheel Speed Sensor: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise vehicle.
  2. Remove the tire and wheel assembly from the vehicle.
  3. Remove bolt securing the speed sensor cable routing bracket (Fig 1 ) to the strut assembly.

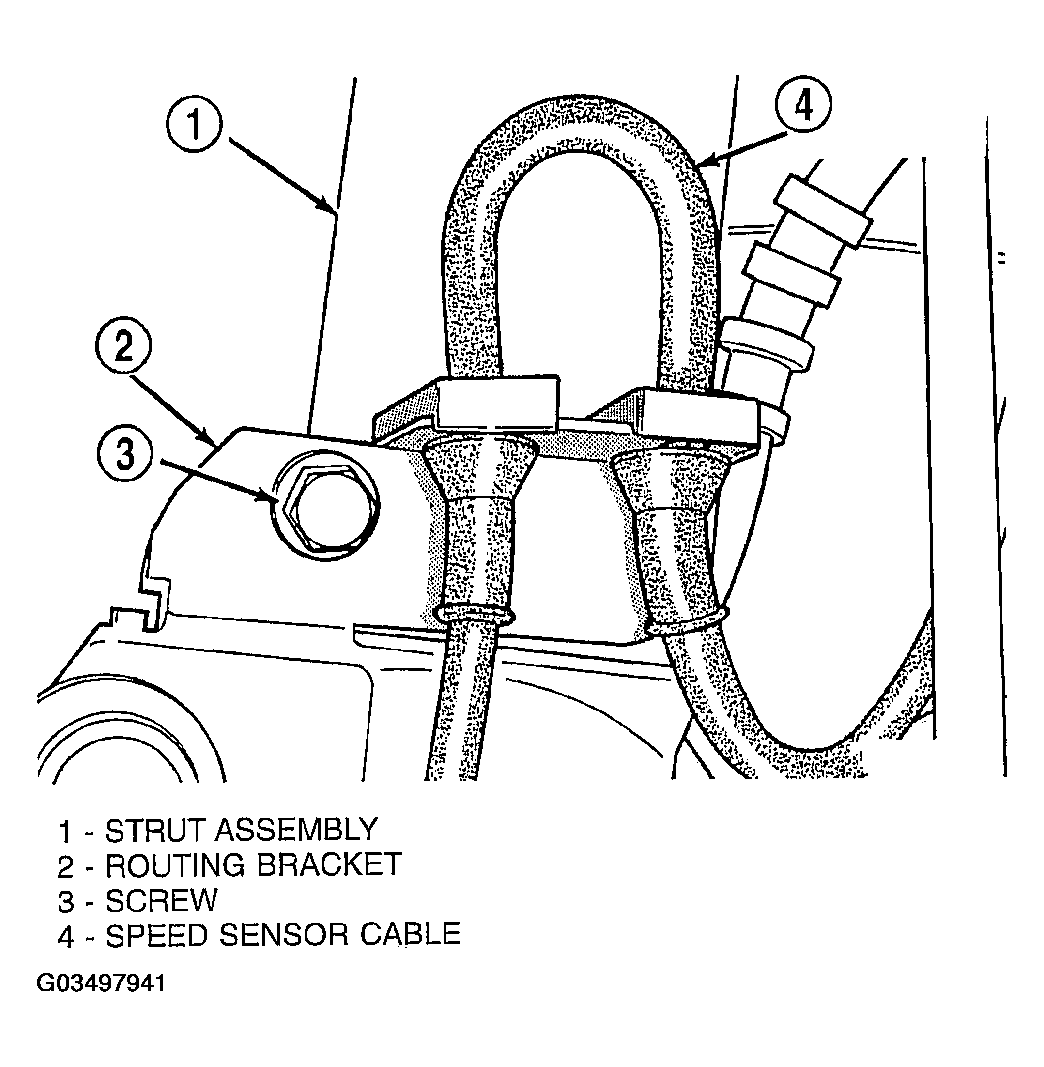

    Fig 1: Locating Speed Sensor Cable Routing Bracket
    G03497941Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove retainer, holding the speed sensor sealing grommet, from the inner fender, pull the grommet out, then unplug the speed sensor cable from the vehicle wiring harness
  5. Remove bolt attaching speed sensor to steering knuckle. Carefully remove speed sensor head from steering knuckle. If sensor is seized in place by corrosion, tap the edge of the sensor ear with a hammer and brass punch (Fig 2 ), working it side to side.
    CAUTION: If speed sensor head locating pin has seized to the steering knuckle, do not attempt to remove speed sensor head by grasping with pliers and turning. This will damage the speed sensor head. Use only the following procedure.
