2000 Chrysler Intrepid BaseFACTORY OEM SERVICE PROCEDURE
Rocker Arm/Adjuster Assembly: Removal
WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
The rocker arm shafts are hollow and are used as lubrication oil passages. The rocker arm and shaft assembly on the RIGHT side of the engine has an oil passage hole from the cylinder head to the third rocker shaft support. The rocker arm shaft assembly on the LEFT side of the engine has an oil passage hole from the cylinder head to the second rocker shaft support.
- Remove cylinder head covers. (Refer to REMOVAL )

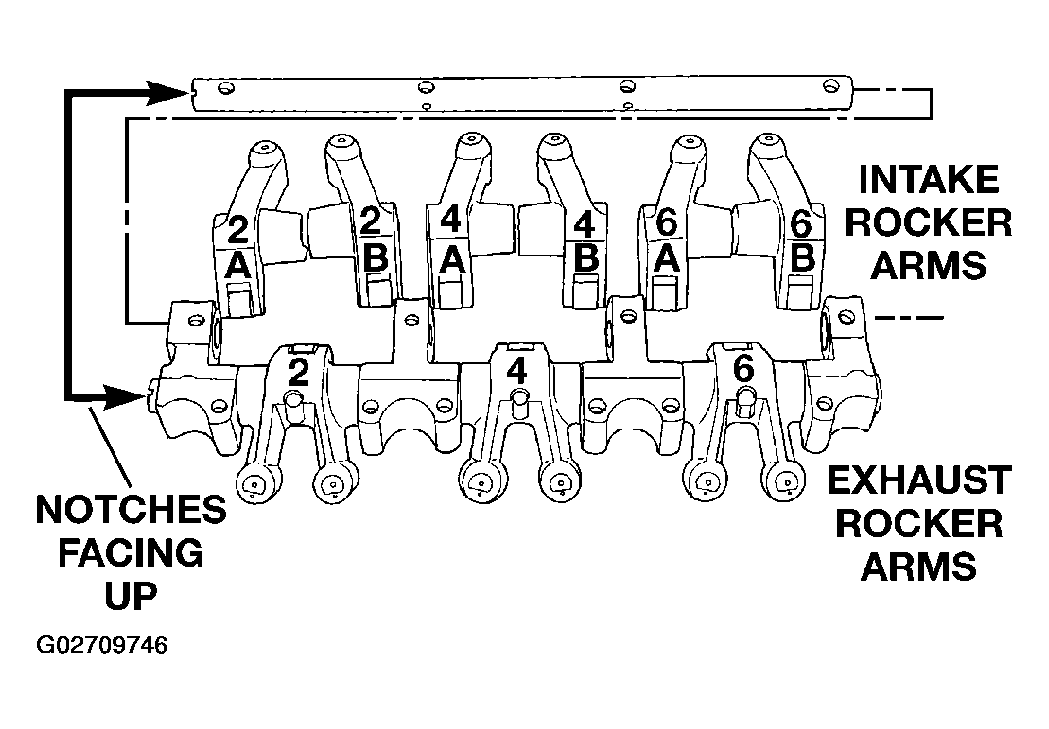

- Identify the rocker arm assembly and rocker arms before disassembly (Fig 1).
- Remove rocker arm assembly bolts.
- Remove rocker arm assembly.
NOTE:
To prevent air ingestion into lash adjusters, avoid turning rocker arm assembly upside down.
