2000 Chrysler Intrepid BaseFACTORY OEM SERVICE PROCEDURE
Component Locations
WARNING: This page is about a different car, the 2002 Dodge Intrepid, 2002 Chrysler Intrepid, 2002 Chrysler Concorde, and 2002 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| A/C Compressor Clutch | Front Of Compressor |
| A/C Compressor Clutch Relay | In Power Distribution Center |
| A/C Pressure Transducer | Right Front Engine Compartment |
| Ambient Temperature Sensor | Front Grille Area |
| Automatic Temperature Control Head | Center Of Instrument Panel |
| Blend Door Actuator | Right Side Of HVAC Housing |
| Blower Motor | Passenger Side Of HVAC Housing |
| Blower Motor Power Module | Right Side Of HVAC Housing |
| Body Control Module | Left Side Of Instrument Panel |
| Evaporator Temperature Sensor | Lower Right Side Of Heater Housing |
| Fuse 17 | In Junction Block |
| Fuse 19 | In Junction Block |
| Fuse 21 | In Junction Block |
| Fuse 23 | In Junction Block |
| Fuse B | In Power Distribution Center |
| Fuse E | In Power Distribution Center |
| G101 | Rear Of Block Left Side |
| G105 | Near Right Horn |
| G200 | Lower Center Of Instrument Panel |
| G201 | Lower Center Of Instrument Panel |
| High Speed Radiator Fan Relay | In power Distribution Center |
| Junction Block | Left Side Of Instrument Panel |
| Low Speed Radiator Fan Relay | In Power Distribution Center |
| Mode Door Actuator | On HVAC Housing |
| Power Distribution Center | Left Front Corner Of Engine Compartment |
| Powertrain Control Module | Near Power Distribution Center |
| Radiator Fan | Rear Of Motor |

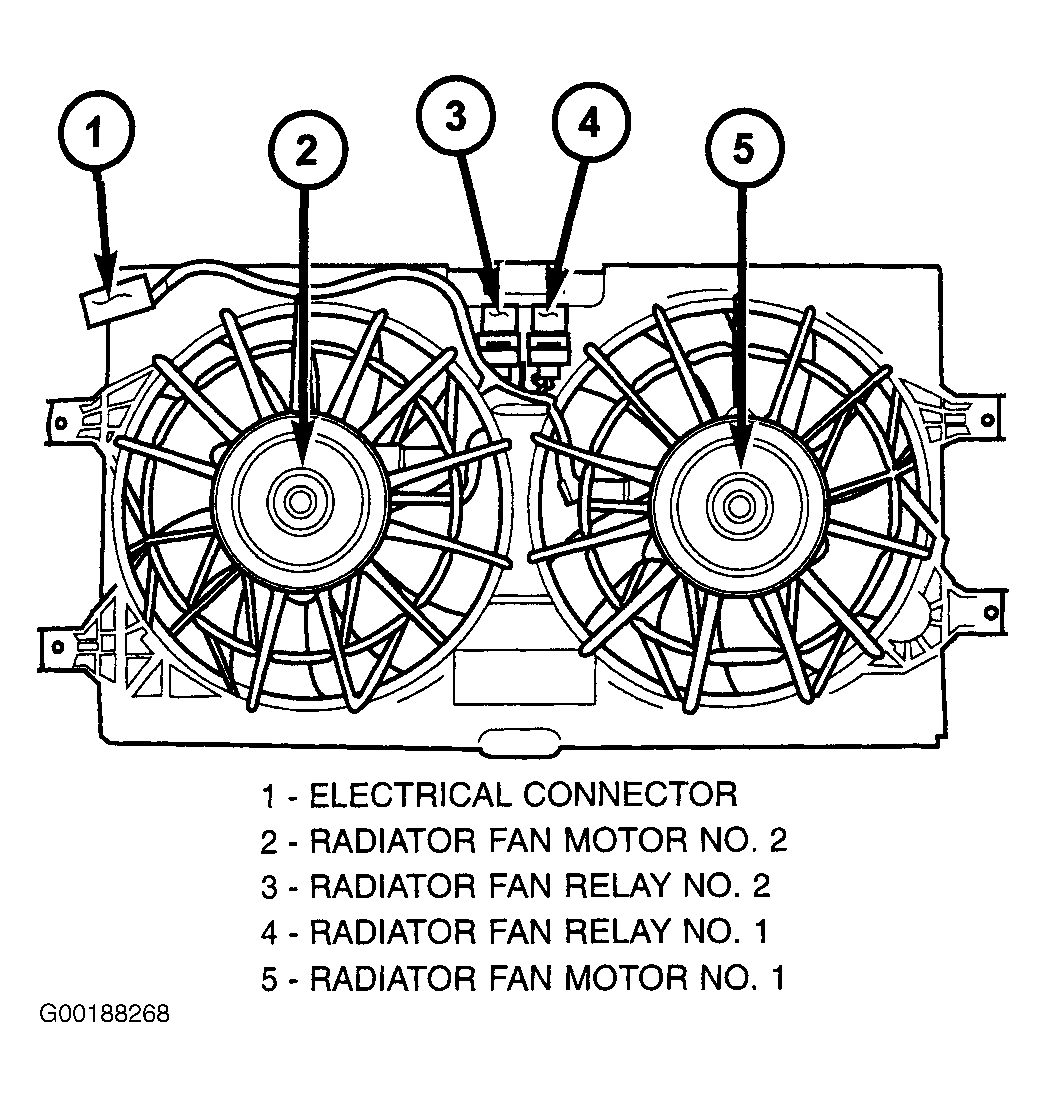

| Radiator Fan Motor No. 1 | Rear Of Motor |
| Radiator Fan Motor No. 2 | Rear Of Motor |
| Radiator Fan Relay No. 1 | On Fan Module |
| Radiator Fan Relay No. 2 | On Fan Module |
| Recirculation Door Actuator | On HVAC Housing |
| Sun Sensor/UTSS LED | Top Center Of Instrument Panel |
