2000 Chrysler Intrepid BaseFACTORY OEM SERVICE PROCEDURE

Section 131 (Engine Cooling System): Radiator: Removal

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: It is not necessary to discharge air conditioning system when removing the radiator.
  1. Disconnect negative cable from remote jumper terminal.
    WARNING: DO NOT REMOVE THE CYLINDER BLOCK PLUG OR THE RADIATOR DRAINCOCK WITH THE SYSTEM HOT AND UNDER PRESSURE BECAUSE SERIOUS BURNS FROM COOLANT CAN OCCUR.
  2. Drain cooling system.
  3. Remove radiator upper crossmember.
  4. Remove upper and lower coolant hoses from the radiator.
  5. Disconnect transmission hoses from cooler and plug (Fig 1 ).
  6. Disconnect engine oil cooler lines (if equipped) (Fig 1 ).

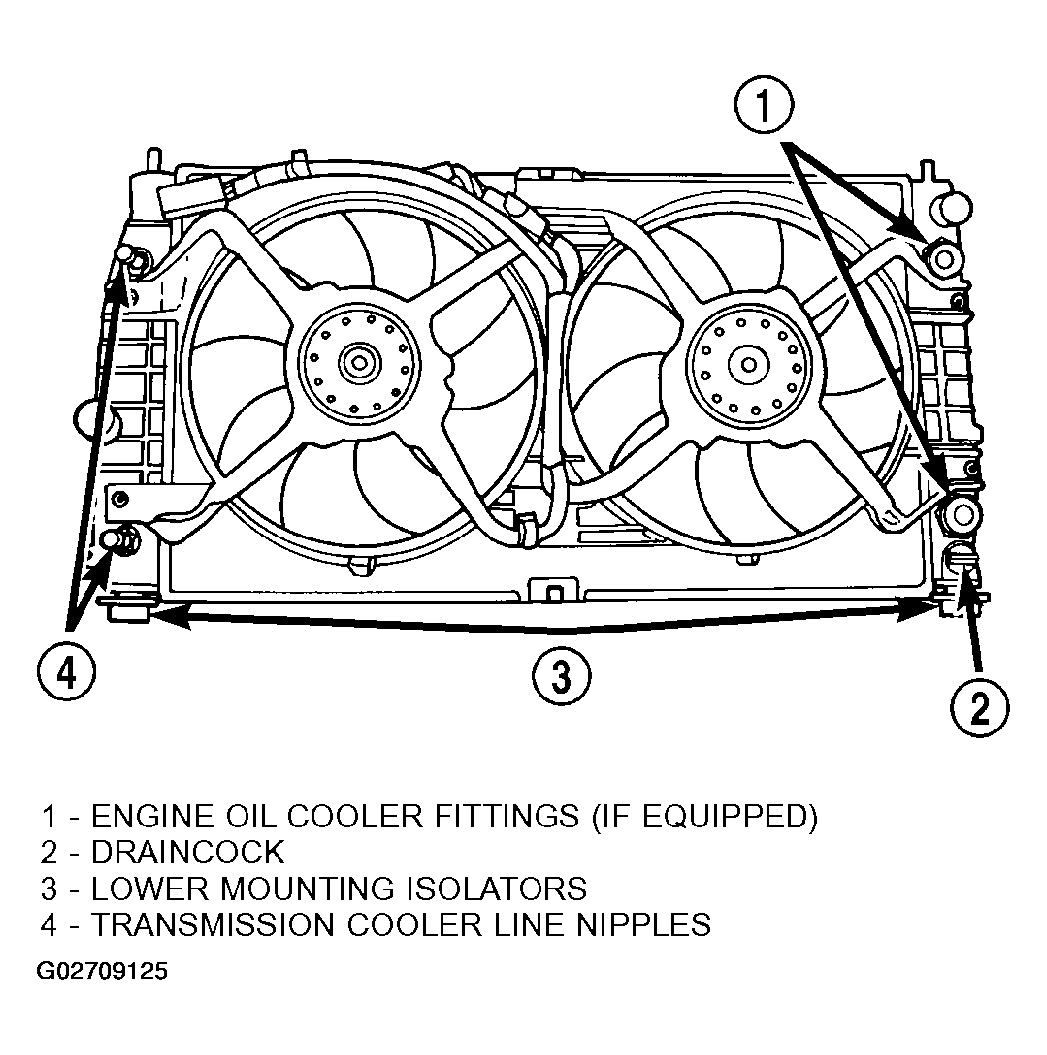

    Fig 1: Identifying Radiator Components
    G02709125Courtesy of DAIMLERCHRYSLER CORP.
  7. Disconnect the radiator fan electrical connector (Fig 2 ).
  8. Remove radiator fan (Fig 2 ).
    CAUTION: Avoid bending the condenser inlet tube. Care should be taken not to damage radiator or condenser cooling fins or water tubes during removal.
