Junction Block

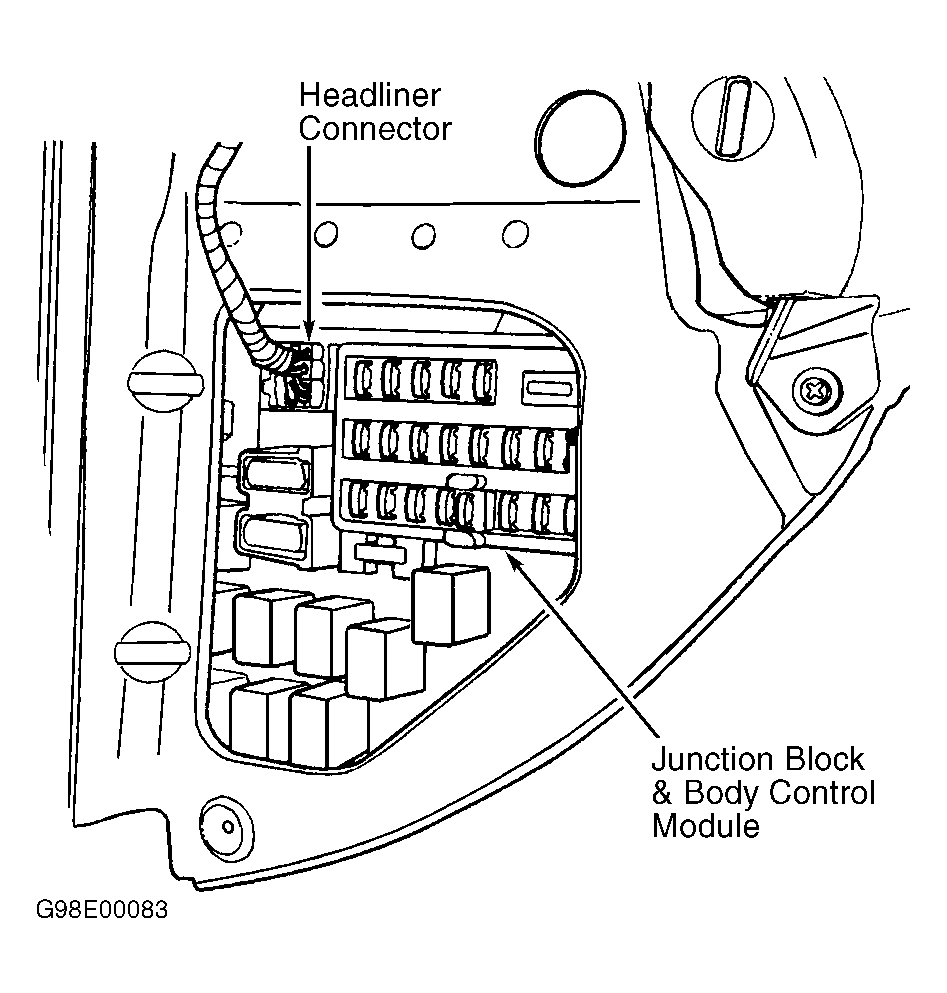

Disconnect battery. Remove driver's side instrument panel end cover. See Fig 1. Remove lower instrument panel cover screws, trunk release switch wiring and lower instrument panel cover. Disconnect junction block/BCM wiring connectors. Remove 4 junction block/BCM mounting screws. Remove junction block/BCM. To install, reverse removal procedure.
