2000 Chrysler Intrepid (CANADA) V6-2.7LFACTORY OEM SERVICE PROCEDURE
Cylinder Head

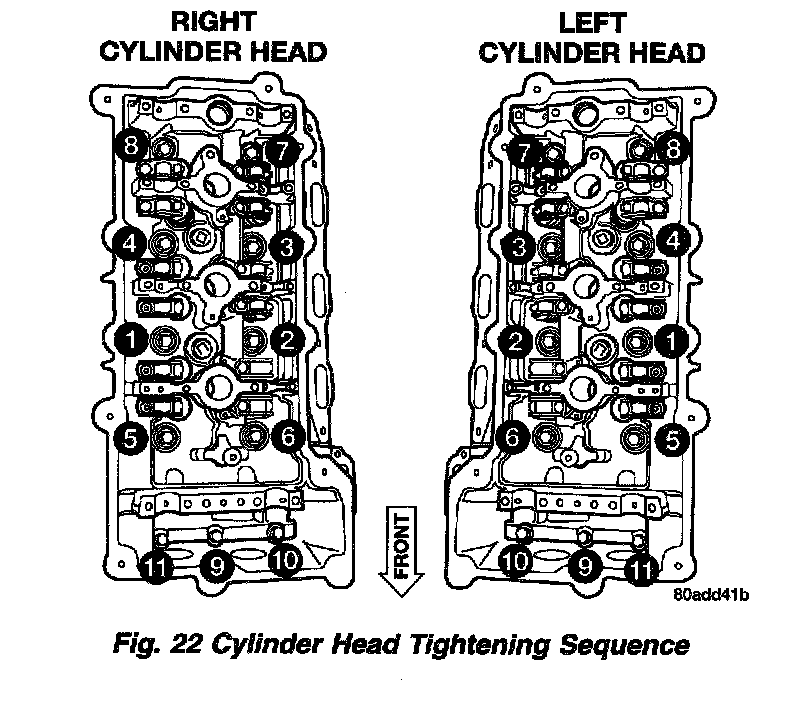

Tighten bolts in sequence shown, using the following steps and torque values:
- Step 1: Bolts 1-8 to 48 Nm (35 ft. lbs.)
- Step 2: Bolts 1-8 to 75 Nm (55 ft. lbs.)
- Step 3: Bolts 1-8 to 75 Nm (55 ft. lbs.)
- Step 4: Bolts 1-8 an additional 1/4 turn. Do not use a torque wrench for this step.
- Step 5: Bolts 9-11 to 28 Nm (250 in. lbs.)
