2000 Chrysler Intrepid (CANADA) V6-2.7LFACTORY OEM SERVICE PROCEDURE
Rear Toe Adjustment

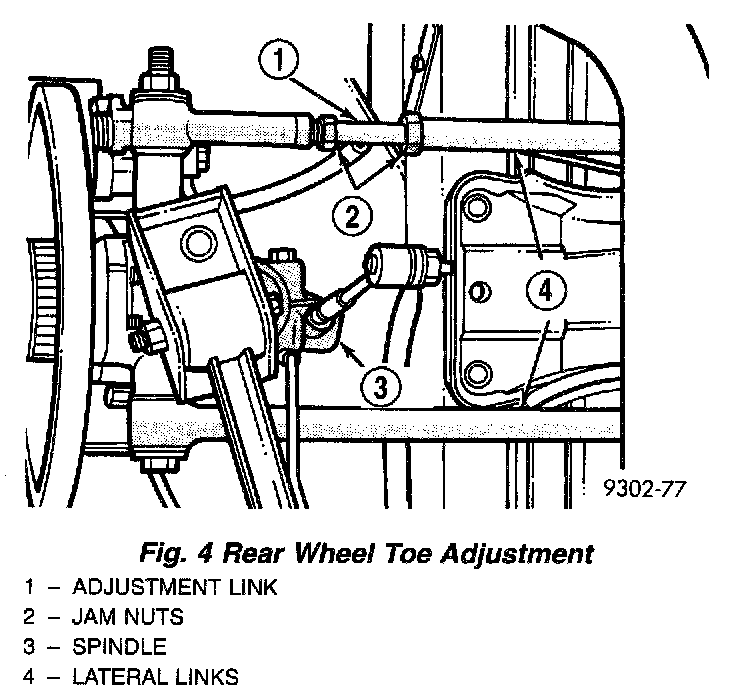

1. Loosen lateral link, adjustment link jam nuts. Rotate adjustment links as required to set rear wheel Toe to specifications. Do not exceed the maximum length dimensions of the lateral links shown in. Both dimensions must be checked to ensure they do not exceed maximums allowed.

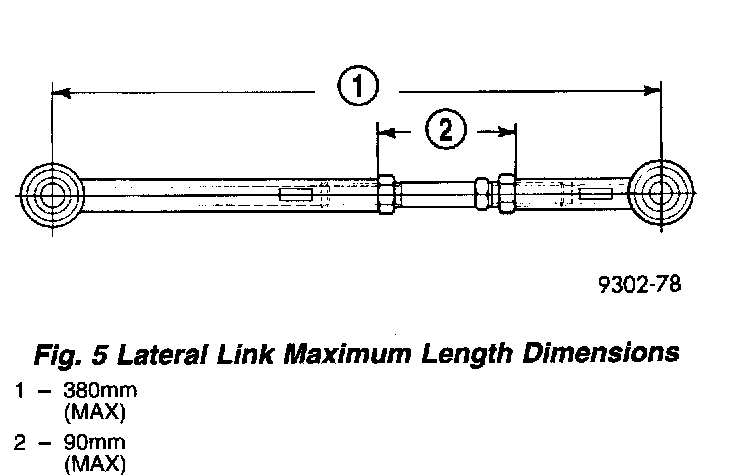

CAUTION: When setting rear toe-in on vehicle, the maximum lengths of the adjustable lateral link at the locations shown in must not be exceeded. If these maximum lengths are exceeded, inadequate retention of adjustment link to the inner and outer link may result. Ensure that the adjustment sleeve jam nuts are torqued to the required specifications when the Toe setting procedure is completed.
2. Tighten lateral link, adjustment link lock-nuts to 88 Nm (65 ft. lbs.) torque.
3. Proceed to set the front wheel alignment. If front camber and caster readings are within required specifications, proceed to Front Wheel Toe Adjustment. If not, refer to camber.
