2000 Chrysler Intrepid (CANADA) V6-2.7LFACTORY OEM SERVICE PROCEDURE
Control Assembly: Service and Repair
REMOVAL
1. Open hood and disconnect the negative battery cable remote terminal from the remote battery post.
2. Remove the ash receiver assembly, if necessary.
3. Remove the instrument panel center trim bezel and remove the two electrical connectors from the back of the control head and traction control switch (if equipped).
4. From the back of the center trim bezel, remove the six retaining screws from the heater-a/c control head and remove from the bezel.
INSTALLATION
For installation, reverse the above procedures.

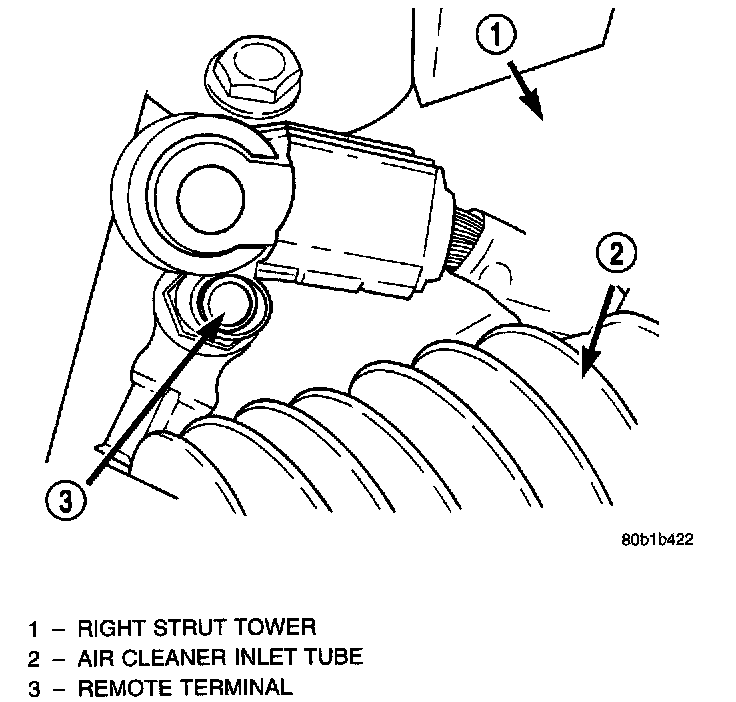

Negative Battery Cable Remote Terminal:
1. Open hood and disconnect the negative battery cable remote terminal from the remote battery post.
2. Remove the ash receiver assembly, if necessary.

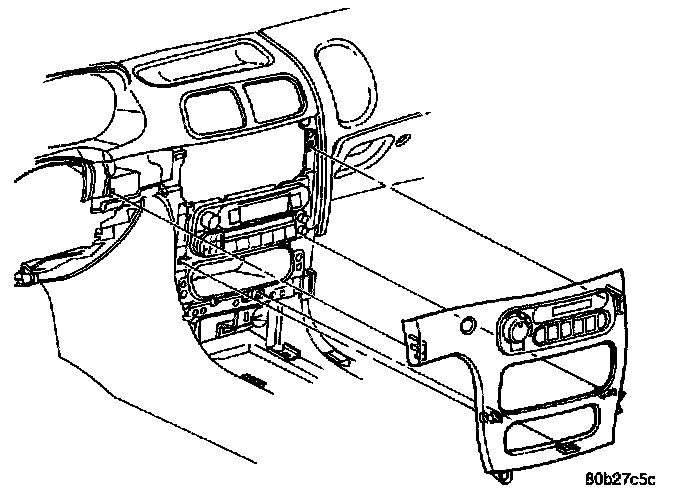

Instrument Panel Center Trim Panel Removal:

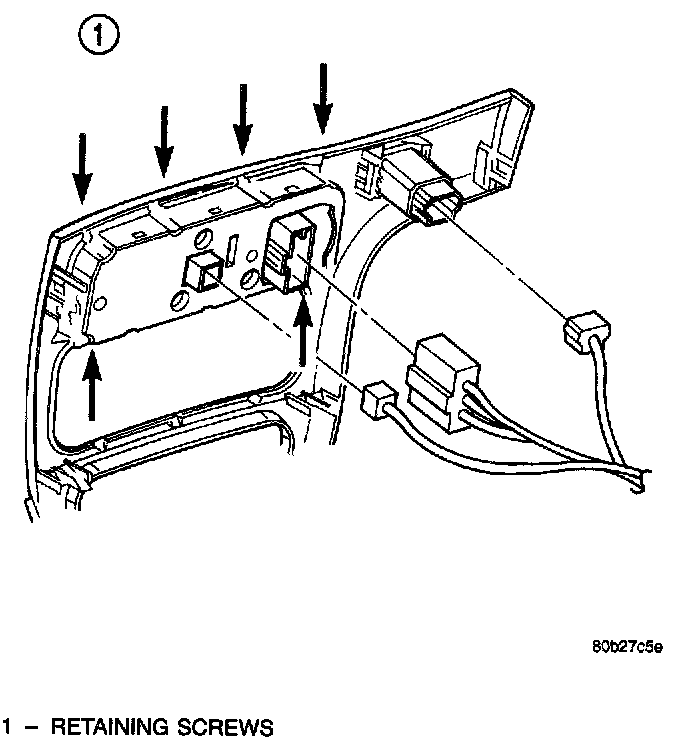

Heater - A/C Control Head Removal:
3. Remove the instrument panel center trim bezel and remove the two electrical connectors from the back of the control head and traction control switch (if equipped).
4. From the back of the center trim bezel, remove the six retaining screws from the heater-a/c control head and remove from the bezel.
INSTALLATION
For installation, reverse the above procedures.
