Starter Relay Test

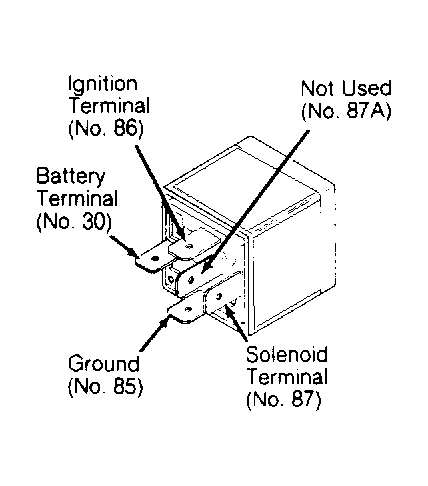

Remove starter relay from Power Distribution Center (PDC). Refer to PDC cover for proper relay location. PDC is located in engine compartment. Connect 12-volt power source to starter relay terminal No. 86 and ground terminal No. 85. See Fig 1 . Using ohmmeter, check continuity across starter relay terminals No. 30 and 87. If continuity is not present, replace starter relay.
