CONNECTOR IDENTIFICATION DIRECTORY

Connector		Figure
ABS Pump/Motor Relay		9
ABS Relay		10
CAB		11
CCD Data Link
6-Pin Connector		12
Modulator		13
Wheel Speed Sensors		14

Following tables are for CONNECTOR IDENTIFICATION illustrations.

For Fig 1

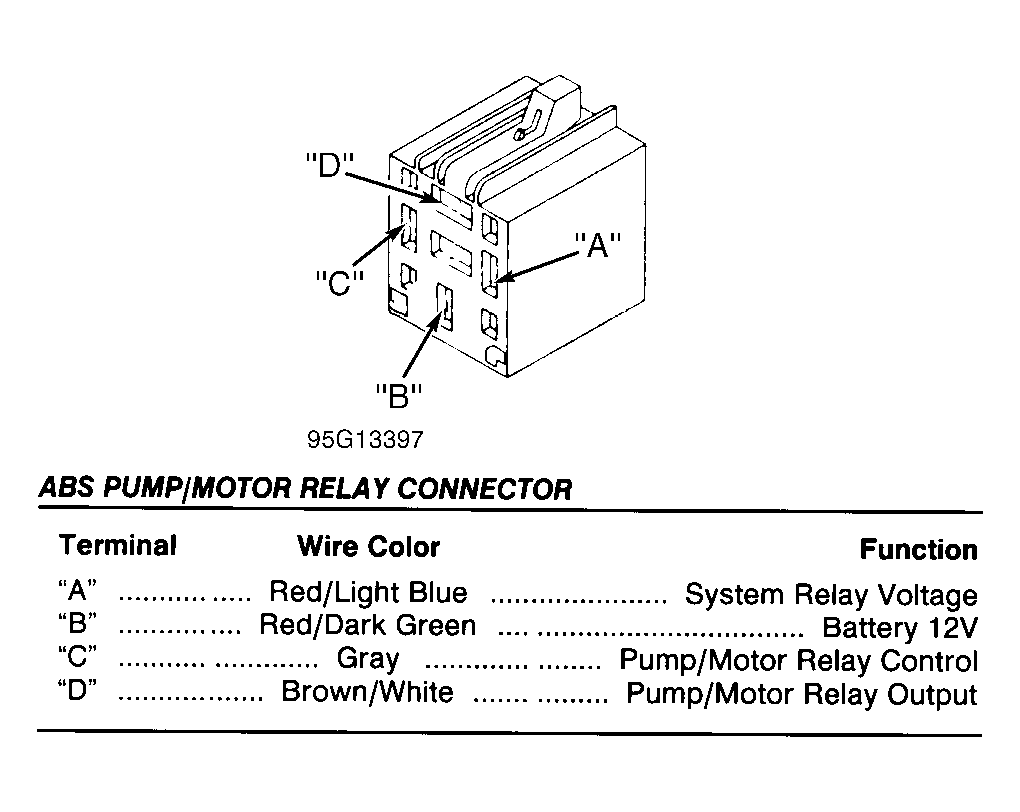

ABS PUMP/MOTOR RELAY CONNECTOR

Terminal	Wire Color	Function
"A"	Red/Light Blue	System Relay Voltage
"B"	Red/Dark Green	Battery 12V
"C"	Gray	Pump/Motor Relay Control
"D"	Brown/White	Pump/Motor Relay Output

Fig 1: Identifying ABS Pump/Motor Relay Connector Terminals

Courtesy of CHRYSLER CORP.

For Fig 2

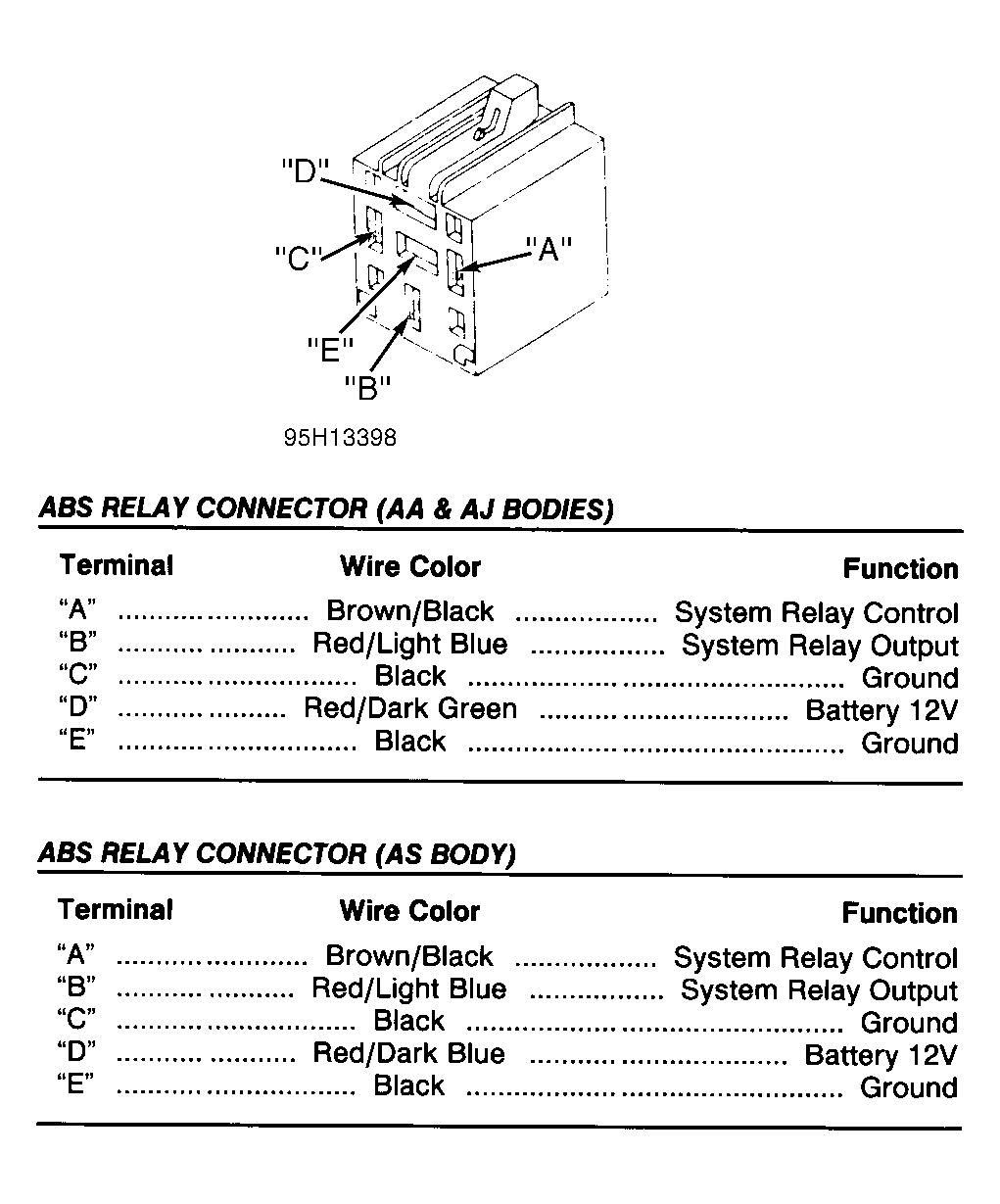

ABS RELAY CONNECTOR

Terminal	Wire Color	Function
"A"	Brown/Black	System Relay Control
"B"	Red/Light Blue	System Relay Output
"C"	Black	Ground
"D"	Red/Dark Green	Battery 12V
"E"	Black	Ground

Fig 2: Identifying ABS Relay Connector Terminals

Courtesy of CHRYSLER CORP.

For Fig 3

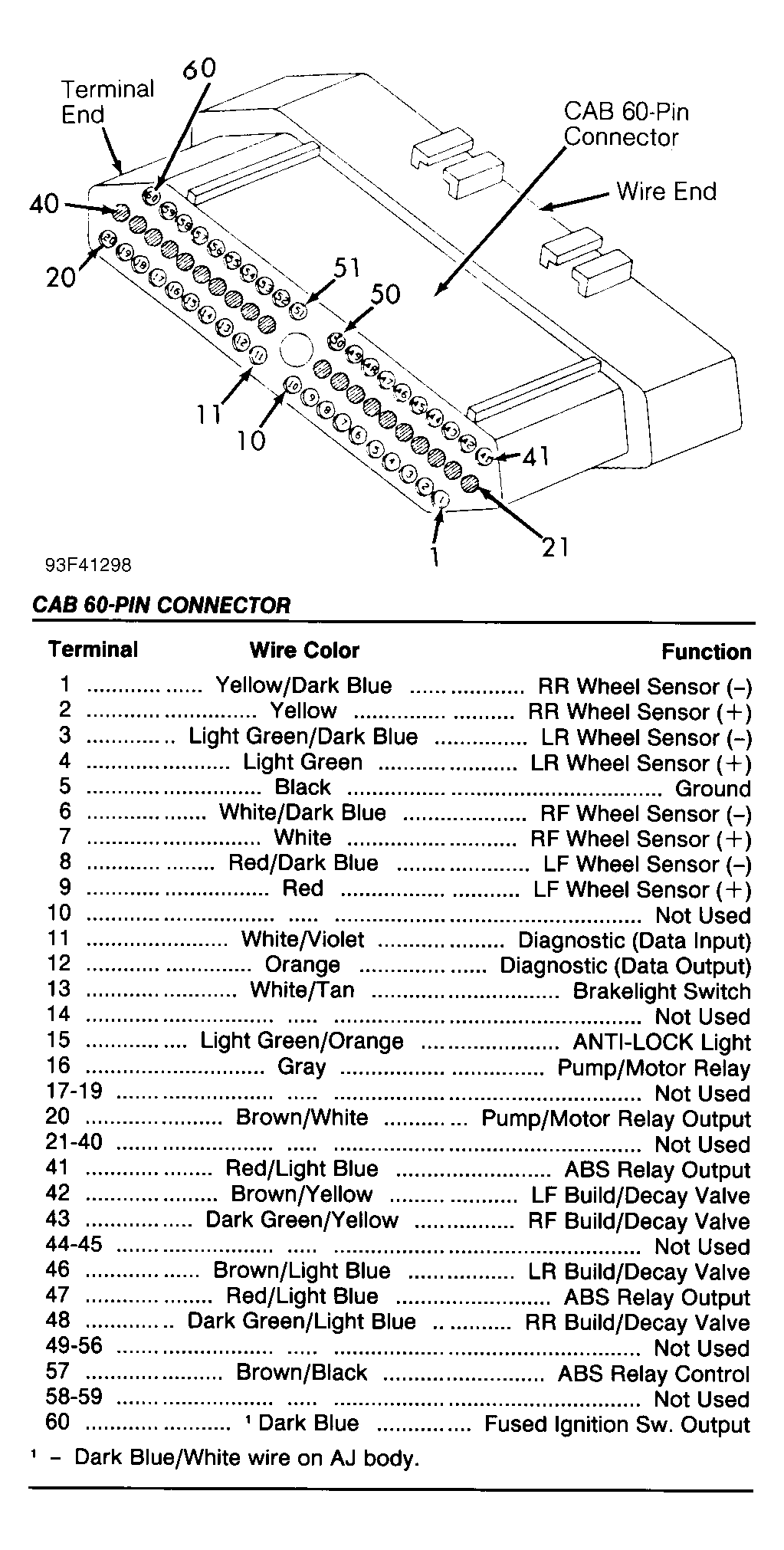

CAB 60-PIN CONNECTOR

Terminal	Wire Color	Function
1	Yellow/Dark Blue	RR Wheel Sensor (-)
2	Yellow	RR Wheel Sensor (+)
3	Light Green/Dark Blue	LR Wheel Sensor (-)
4	Light Green	LR Wheel Sensor (+)
5	Black	Ground
6	White/Dark Blue	RF Wheel Sensor (-)
7	White	RF Wheel Sensor (+)
8	Red/Dark Blue	LF Wheel Sensor (-)
9	Red	LF Wheel Sensor (+)
10		Not Used
11	White/Violet	Diagnostic (Data Input)
12	Orange	Diagnostic (Data Output)
13	White/Tan	Brakelight Switch
14		Not Used
15	Light Green/Orange	ANTI-LOCK Light
16	Gray	Pump/Motor Relay
17-19		Not Used
20	Brown/White	Pump/Motor Relay Output
21-40		Not Used
41	Red/Light Blue	ABS Relay Output
42	Brown/Yellow	LF Build/Decay Valve
43	Dark Green/Yellow	RF Build/Decay Valve
44-45		Not Used
46	Brown/Light Blue	LR Build/Decay Valve
47	Red/Light Blue	ABS Relay Output
48	Dark Green/Light Blue	RR Build/Decay Valve
49-56		Not Used
57	Brown/Black	ABS Relay Control
58-59		Not Used
60	Dark Blue/White	Fused Ignition Sw. Output

Fig 3: Identifying CAB Connector Terminals

Courtesy of CHRYSLER CORP.

For Fig 4

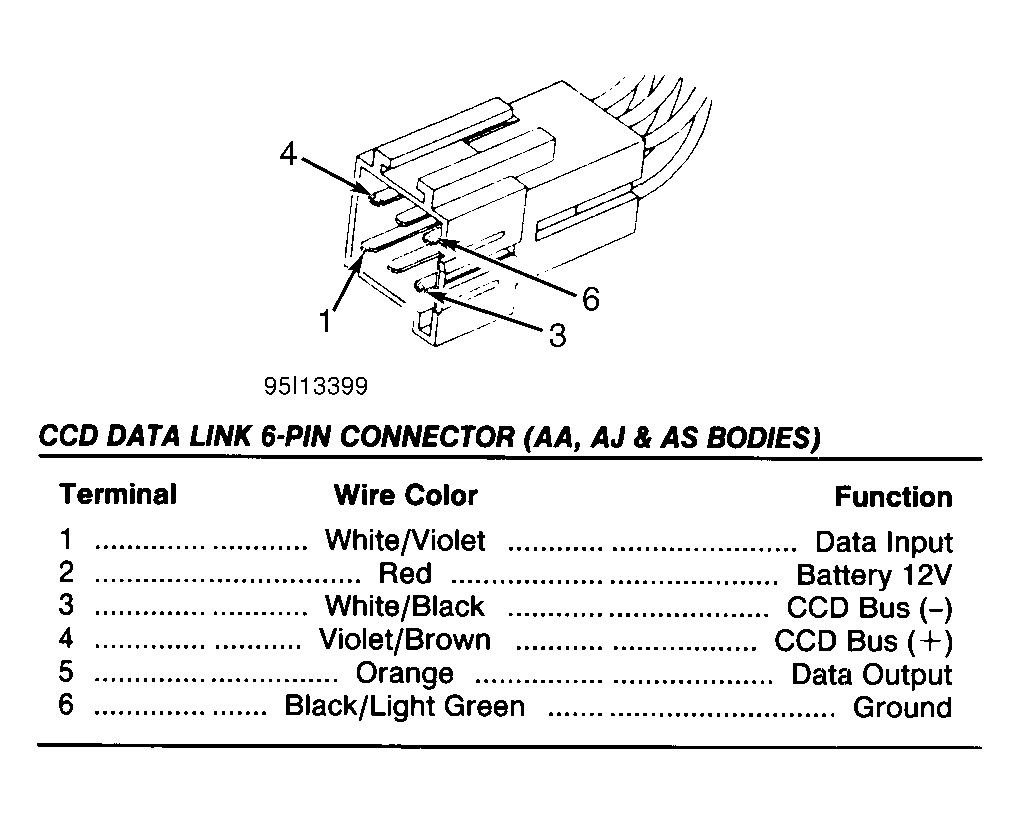

CCD DATA LINK 6-PIN CONNECTOR

Terminal	Wire Color	Function
1	White/Violet	Data Input
2	Red	Battery 12V
3	White/Black	CCD Bus (-)
4	Violet/Brown	CCD Bus (+)
5	Orange	Data Output
6	Black/Light Green	Ground

Fig 4: Identifying CCD Data Link 6-Pin Connector Terminals

Courtesy of CHRYSLER CORP.

For Fig 5

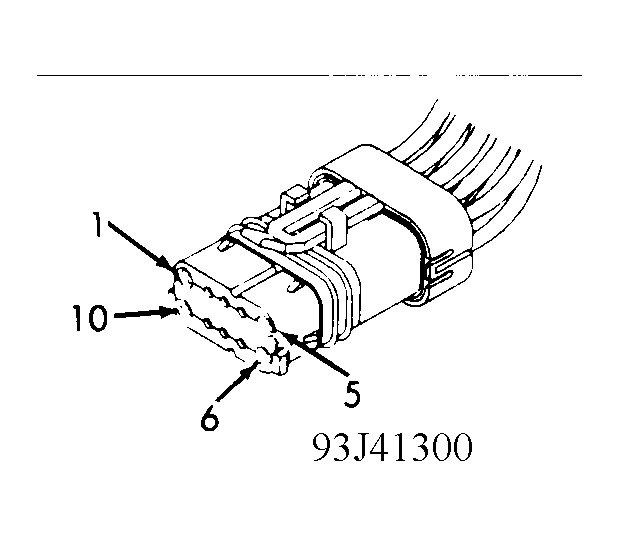

MODULATOR ASSEMBLY CONNECTOR

Terminal	Wire Color	Function
1	Black	Ground
2	Dark Green/Light Blue	RR Build/Decay Valve
3		Not Used
4	Brown/Light Blue	LR Build/Decay Valve
5	Black	Ground
6	Brown/White	Pump/Motor Relay Output
7	Dark Green/Yellow	RF Build/Decay Valve
8		Not Used
9	Brown/Yellow	v
10	Black	Ground

Fig 5: Identifying Modulator Connector Terminals

Courtesy of CHRYSLER CORP.

Next four tables are for Fig 6

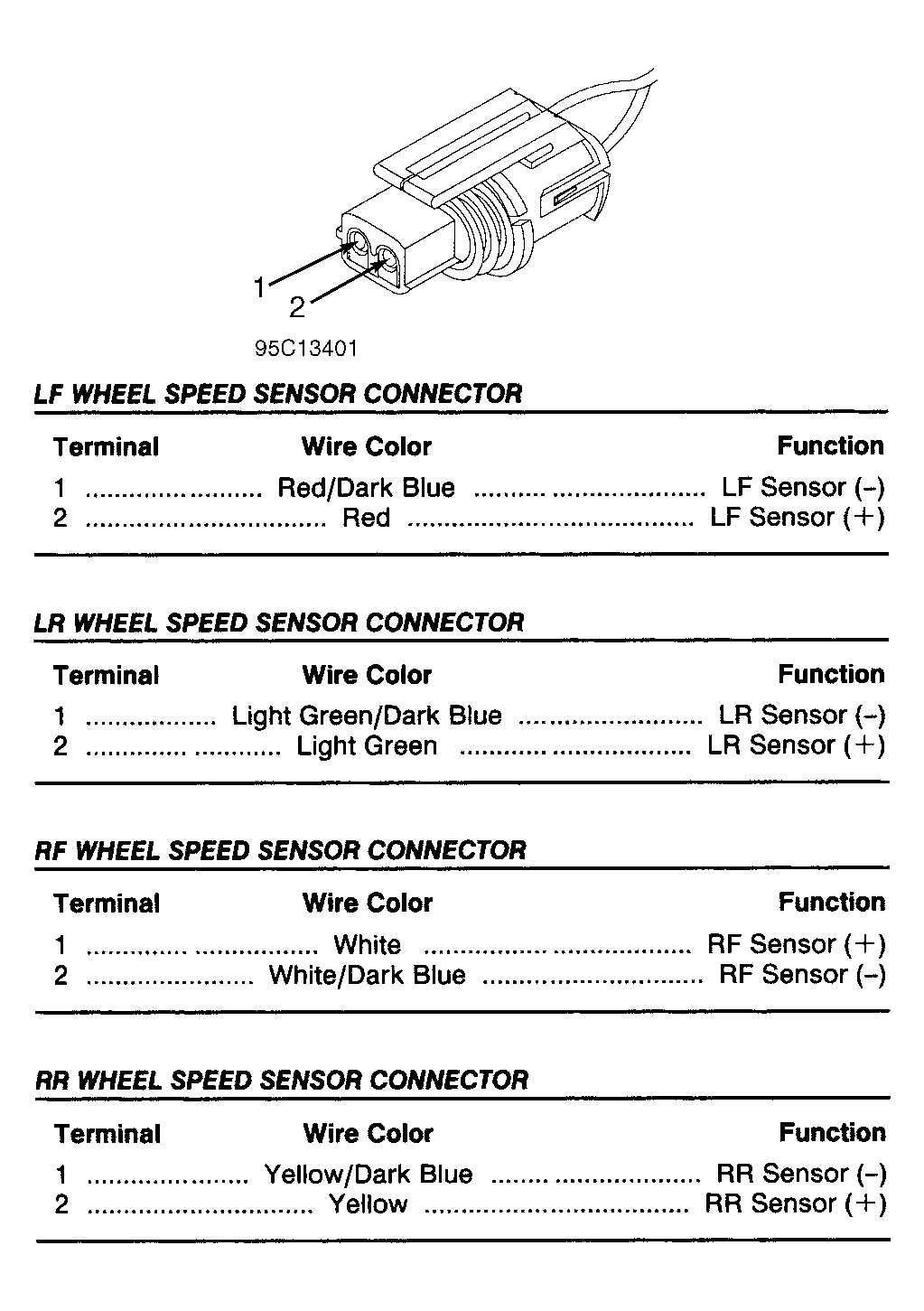

LF WHEEL SPEED SENSOR CONNECTOR

Terminal	Wire Color	Function
1	Red/Dark Blue	LF Sensor (-)
2	Red	LF Sensor (+)

LR WHEEL SPEED SENSOR CONNECTOR

Terminal	Wire Color	Function
1	Light Green/Dark Blue	LR Sensor (-)
2	Light Green	LR Sensor (+)

RF WHEEL SPEED SENSOR CONNECTOR

Terminal	Wire Color	Function
1	White	RF Sensor (+)
2	White/Dark Blue	RF Sensor (-)

RR WHEEL SPEED SENSOR CONNECTOR

Terminal	Wire Color	Function
1	Yellow/Dark Blue	RR Sensor (-)
2	Yellow	RR Sensor (+)

Fig 6: Identifying Wheel Speed Sensor Connector Terminals

Courtesy of CHRYSLER CORP.
