1995 Chrysler LeBaronFACTORY OEM SERVICE PROCEDURE
Bleeding Modulator Assembly
CAUTION:
Perform MANUAL BLEEDING procedure before bleeding modulator assembly.
- To gain access to 6 bleed screws located on modulator assembly, remove battery, battery tray and acid shield. Connect battery to vehicle using jumper cables.
- Ensure all fluid lines are installed and correctly torqued. Bleed base brake system using standard manual procedure.

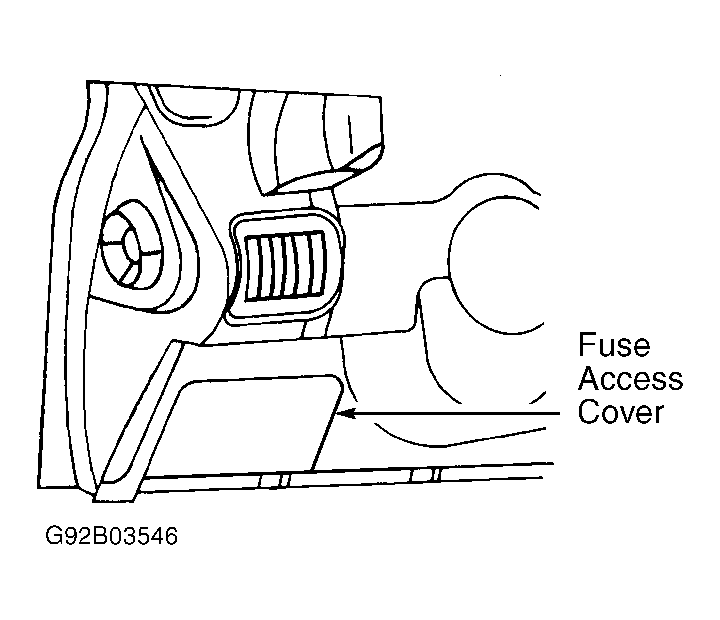

- Connect scan tool to CCD data link connector, located behind fuse access cover on lower section of dash panel, left of steering column. See Fig 1.
