ENGINE CODE LOCATION

Application		Location
Avenger & Sebring
2.0L 4 Cyl.		Side Of Cylinder Block, Behind Starter. See Fig 1
2.5L V6		Front Side Of Cylinder Block, Below Front Exhaust Manifold, Near Transaxle Housing. See Fig 2
Cirrus & Stratus
2.0L 4 Cyl.		Side Of Cylinder Block, Behind Starter. See Fig 4
2.4L 4 Cyl.		Rear Of Cylinder Block, Below Cylinder Head Surface, Just Above Flywheel. See Fig 5
2.5L V6		Front Side Of Cylinder Block, Below Front Exhaust Manifold, Near Transaxle Housing. See Fig 3
New Yorker, LHS, Concorde, Intrepid & Vision
3.3L V6 & 3.5L V6		Rear Of Cylinder Block, Below Driver's Side Cylinder Head Surface, Just Above Flywheel. See Fig 6
Neon
2.0L 4 Cyl. SOHC		Side Of Cylinder Block, Behind Starter. See Fig 4
Talon
2.0L 4 Cyl. Non-Turbo		Side Of Cylinder Block, Behind Starter. SeeFig 1
Turbo		Front Of Cylinder Block, Just Below Exhaust Manifold. See Fig 7
Viper
	8.0L V10	Front Right Hand Side Of Cylinder Block, Near The Oil Filter. See Fig 8

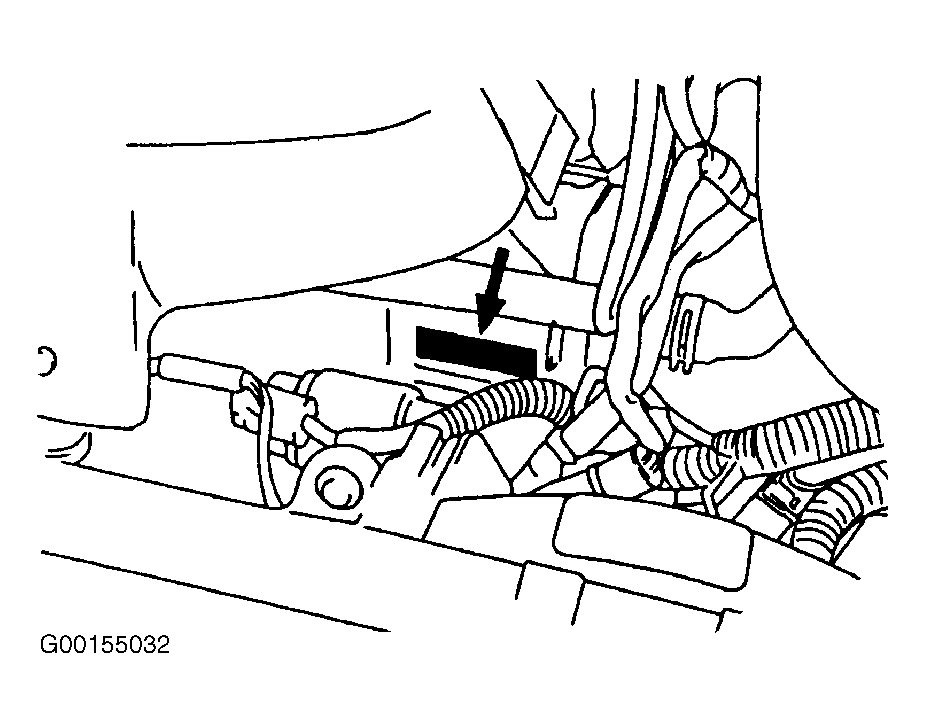

Fig 1: Locating Engine Identification Code (2.0L 4 Cyl. -- Avenger, Sebring & Talon)

Courtesy of CHRYSLER CORP.
