1995 Chrysler LHSFACTORY OEM SERVICE PROCEDURE

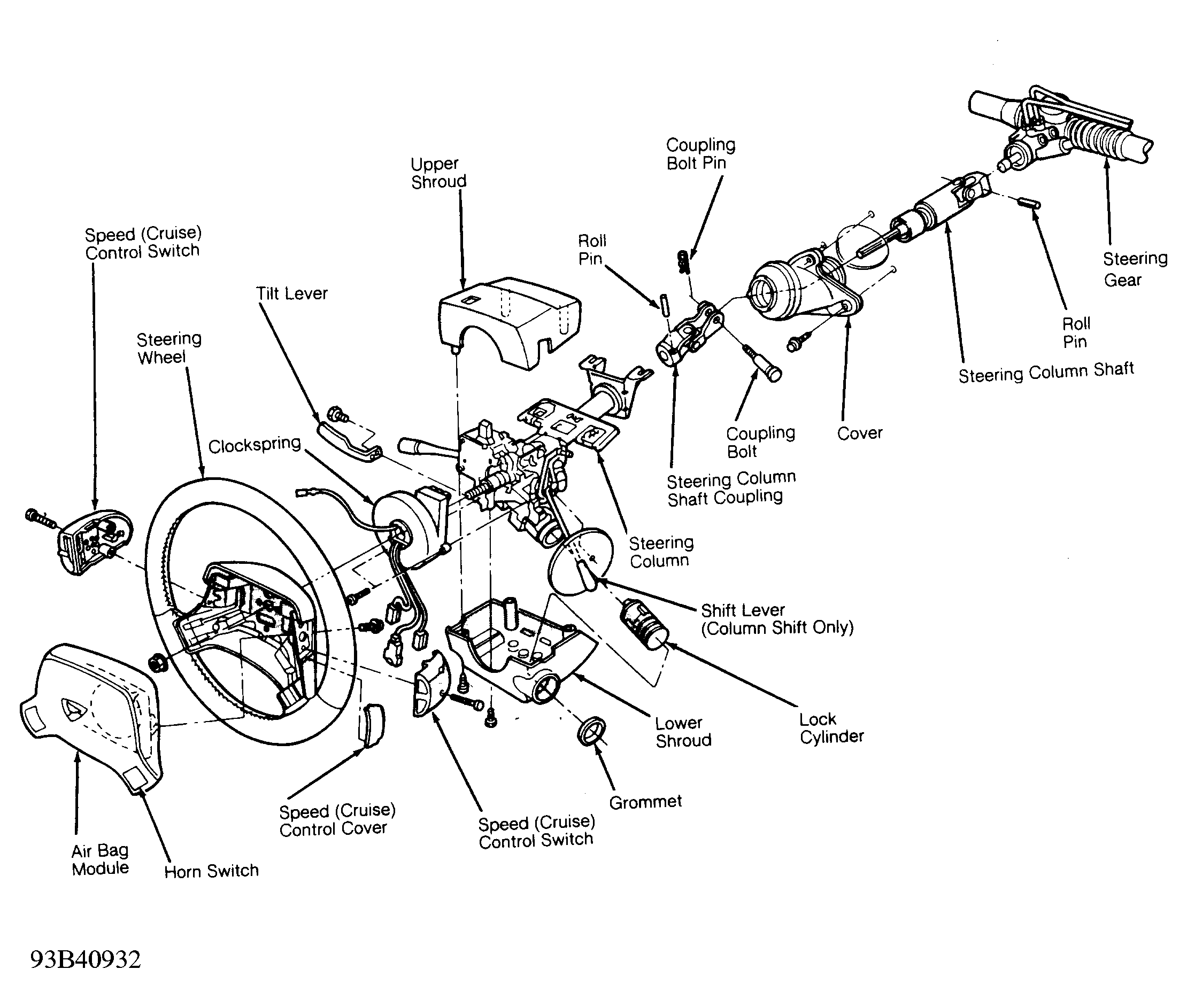

Steering Column: Overhaul
- Remove steering column from vehicle. Remove steering column shaft coupling. Bend tabs on jacket bushing, at base of steering column, and slide bracket off bushing. Tap jacket bushing off of steering column.
- If replacement jacket bushing comes assembled with bracket, remove bracket before installing jacket bushing. Align tab on jacket bushing with slot in steering column jacket. Press jacket bushing onto steering column jacket using Adapter (MB990800).
