1993 Chrysler ImperialFACTORY OEM SERVICE PROCEDURE
Test 14A - Ignition Key-In Light Circuit
NOTE:
For connector terminal identification, see CONNECTOR IDENTIFICATION
. For appropriate wiring diagram, see WIRING DIAGRAMS
at end of article.
- Ensure all doors are closed. Turn ignition off and wait one minute. If ignition key-in light is on constantly, go to TEST 14B. If ignition key-in light is not on constantly, turn ignition on (engine off). Using DRB-II, actuate ignition key-in light test.

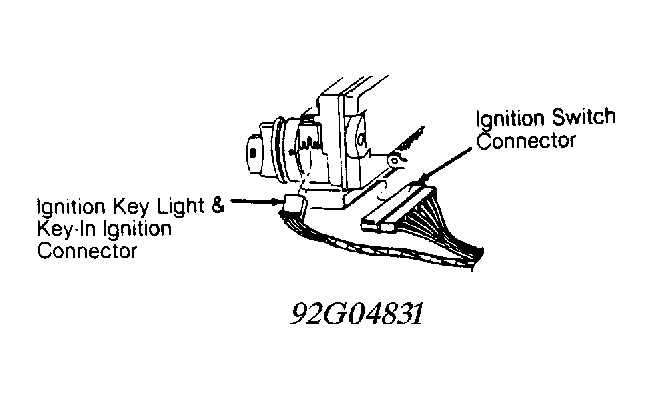

- If ignition key-in light flashes on and off, go to TEST 14C . If ignition key-in light does not flash on and off, stop ignition key-in light test using DRB-II. Disconnect ignition key-in light connector. See Fig 1 .
