2025 Chevrolet Trax LSFACTORY OEM SERVICE PROCEDURE
Fastener Specifications

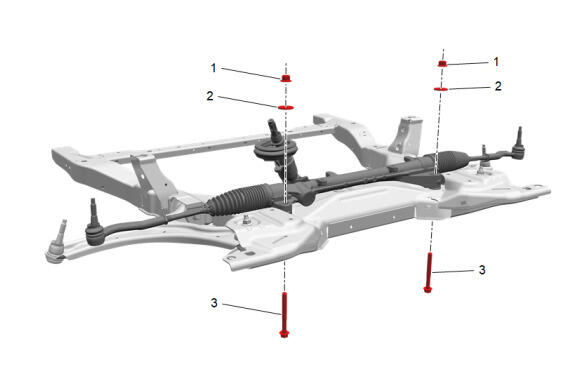

Steering Gear
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Steering Gear Nut [2x] | - | - | - | Steering Gear Replacement |
| 2 | Steering Gear Washer [2x] | - | - | - | Steering Gear Replacement |
| 2 | Steering Gear Bolt [2x] | Yes | - | First Pass: 100 N.m (74 lb ft) Final Pass: 90 - 105 degrees |
Steering Gear Replacement |

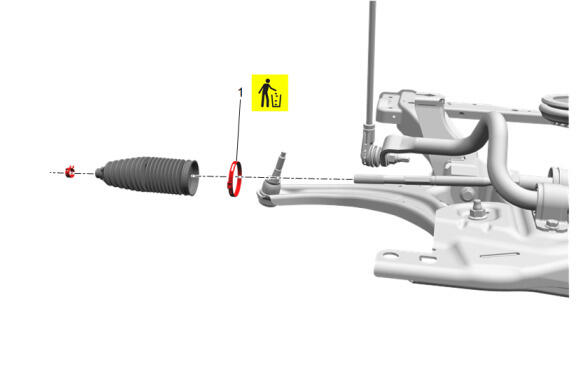

Steering Gear Boot
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Steering Gear Boot Inner Clamp - Large Clamp | Yes | - | - | Steering Gear Boot Replacement |

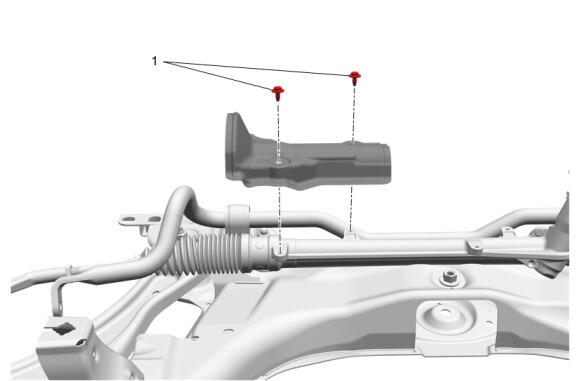

Steering Gear Heat Shield
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Steering Gear Heat Shield Bolt [2x] | - | - | 9 N.m (80 lb in) | Steering Gear Heat Shield Replacement |

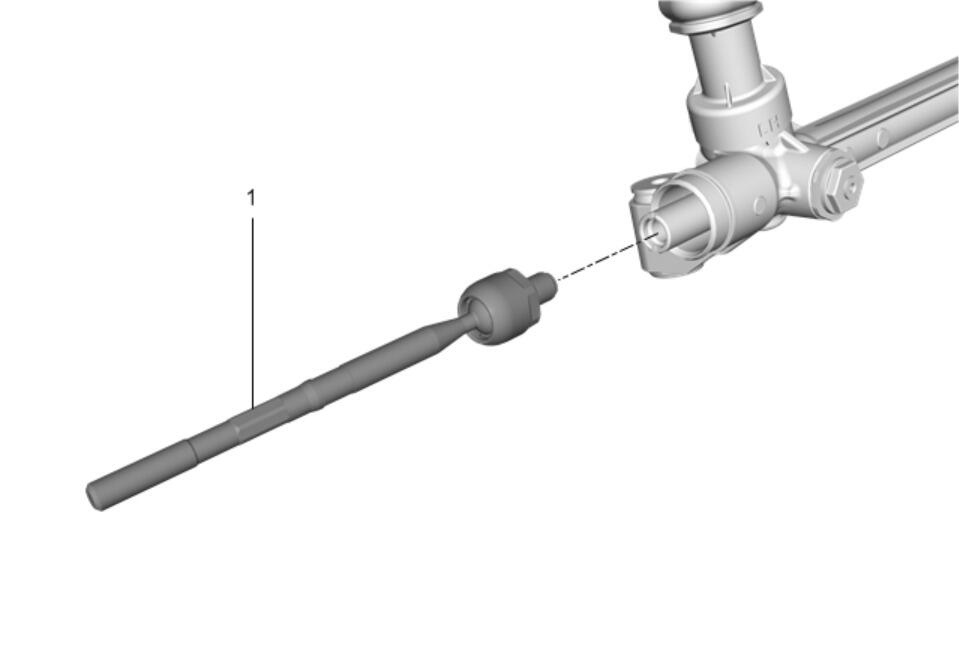

Steering Linkage Inner Tie Rod
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Steering Linkage Inner Tie Rod | - | - | 70 N.m (52 lb ft) | Steering Linkage Inner Tie Rod Replacement |

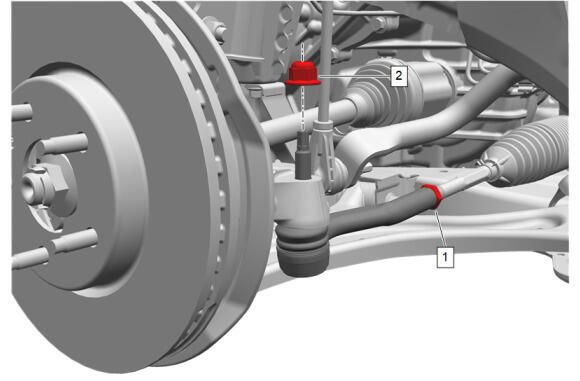

Steering Linkage Outer Tie Rod
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Steering Linkage Tie Rod Adjuster Nut | - | - | 75 N.m (55 lb ft) | Steering Linkage Outer Tie Rod Replacement |
| 2 | Steering Linkage Outer Tie Rod Nut | - | - | First Pass: 30 N.m (22 lb ft) Final Pass: 120 - 135 degrees |
Steering Linkage Outer Tie Rod Replacement |
