Removal Procedure
- Disable the SIR system. SIR Disabling and Enabling
- NOTE:
Left side shown, right side similar.

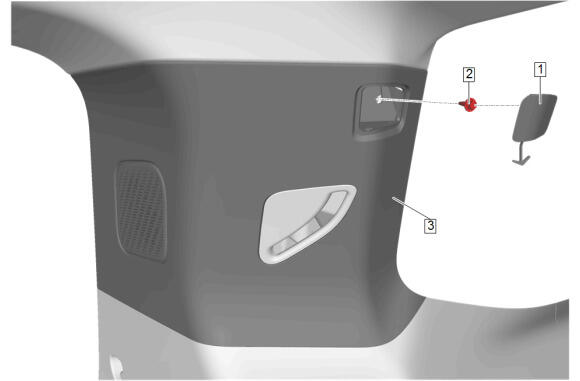

Body Rear Corner Upper Garnish Molding Cap - Right Side(1) - Remove
- Body Rear Corner Upper Garnish Molding Bolt- Right Side(2) - Remove
- Body Rear Corner Upper Garnish Molding- Right Side(3) - Reposition

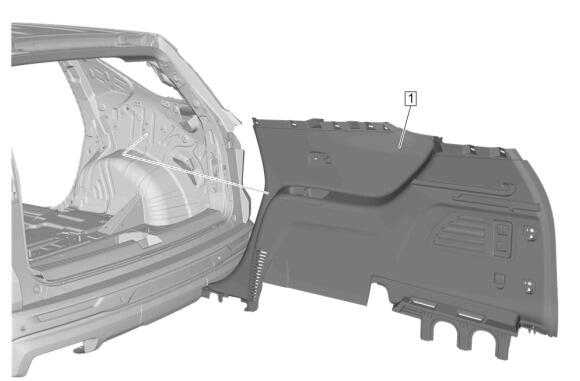

Quarter Lower Rear Trim Panel- Right Side(1) - Reposition
Disconnect the electrical connectors.
- Release the retaining tabs.

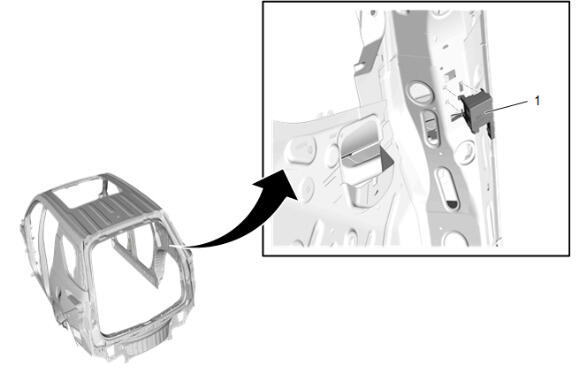

- Remote Function Actuator Module(1) - Remove
